JUNG Hebe- und Transporttechnik GmbH
Adjustable trolley JFB 40 H Professional
Power and stability - the JLB 40 H transport trolley from JUNG can lift loads of up to 40 t with an installation height of 230 mm.
Load capacity: 2 x 20 t (in a set 80 t*)
Height: 230 mm
Transport trolleys series H professional
*) Set consisting of JLB 40 H + JFB 40 H
Height: 230 mm
Transport trolleys series H professional
*) Set consisting of JLB 40 H + JFB 40 H
Product number:
10 400 206-H
Weight:
289 kg
Product information "Adjustable trolley JFB 40 H Professional"
Advantages of the transport trolleys JLB 40 H
- Unrivalled: Small and lightweight trolleys at super high capacity.
- Steerable transport trolleys with pivoting cassettes for a better load distribution at all castors and the floor.
- All transport trolleys are ready for use: the steerable transport trolley is fitted with a ball bearing supported turntable and a handlebar. The adjustable-width transport trolley consists of two transport units and connecting bar.
- Also available as Professional version with JUWAthan twin castors: the double castor design results in dramatically easier steering due to reduced friction forces in curves. The much lower friction resistance also causes the castors on the rear axis to follow in a truer course.

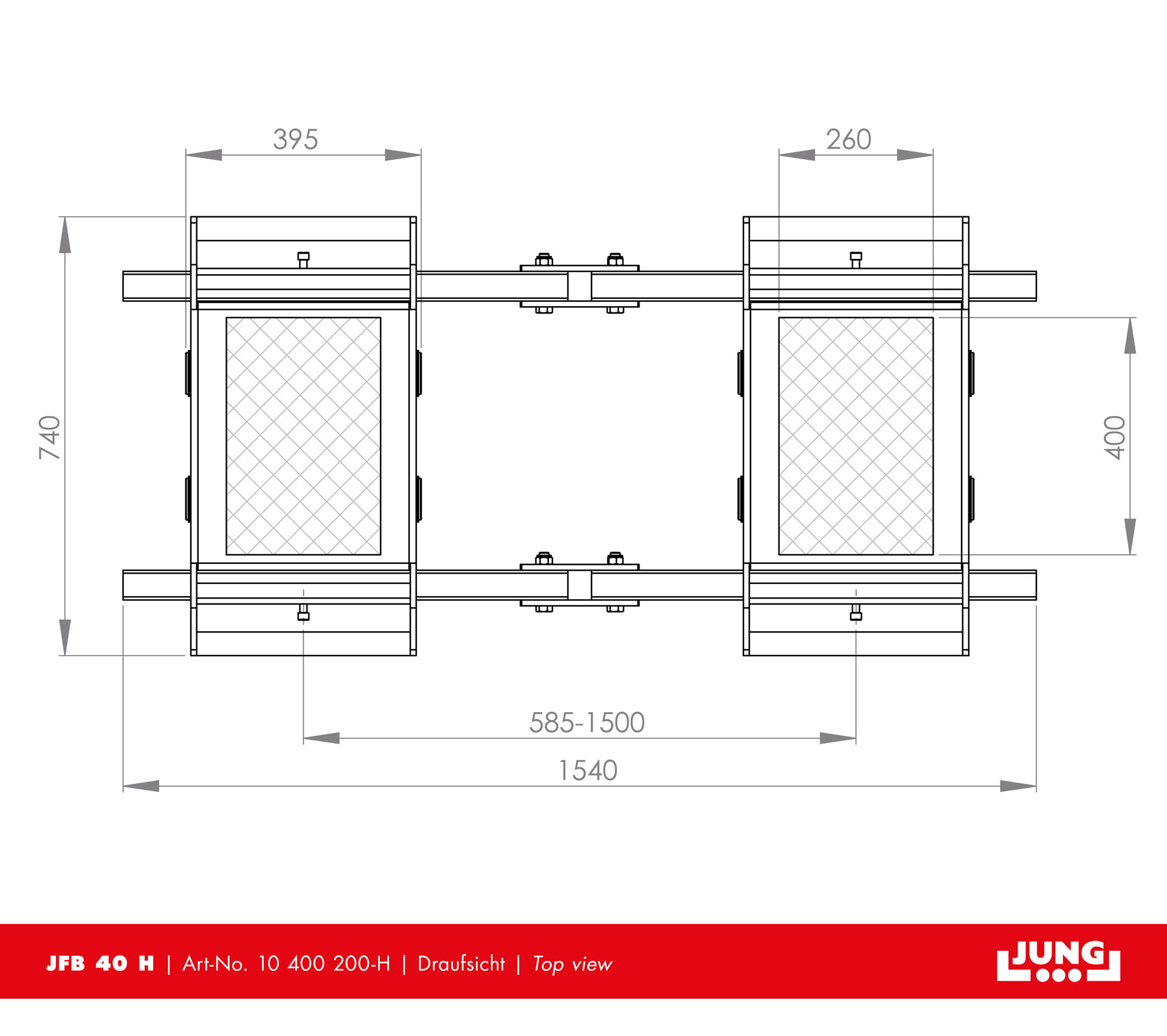

| Cassette dimensions (mm): | 740 x 395 |
|---|---|
| Cassettes adjustable from - to (mm): | 585 - 1 500 |

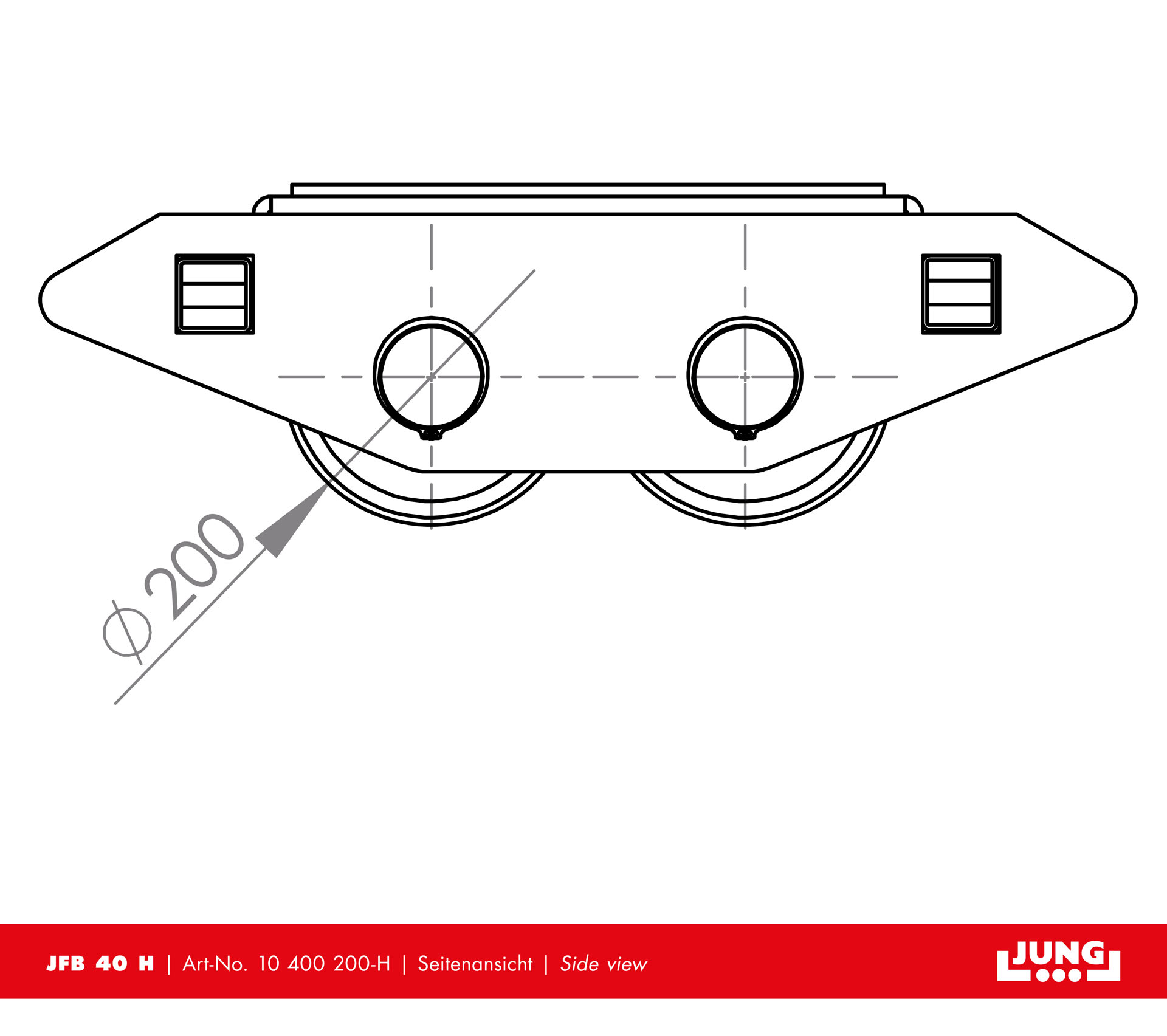

| Castor dimensions (Ø x l mm): | 200 x 85 |
| Connecting bar with joint (mm): | 2 x 1 540 |

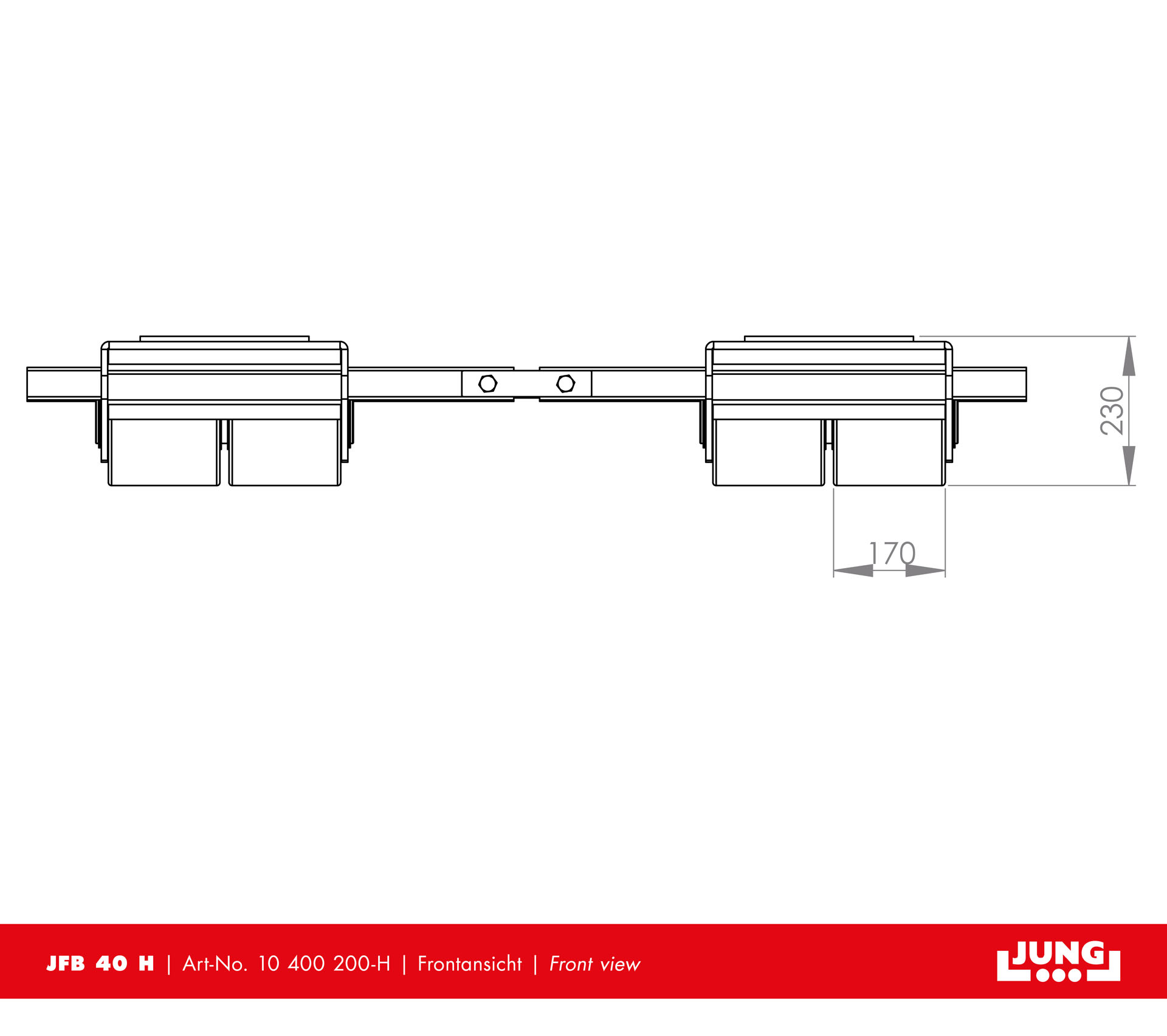

| Height (mm): | 230 |
| Load capacity (suitable): | 41 - 80 t |
| Load capacity (t): | 40 |
| Number of castors (Pieces): | 2 x 8 |
| Suppoting surface per cassette (mm): | 400 x 260 |
| Weight JUWAthan® (kg): | 310 |
