JUNG Hebe- und Transporttechnik GmbH
Adjustable trolley JFB 30 G
High-performance transport trolley from JUNG. The JFB 30 G transport unit transports loads up to 30 t with an installation height of 180 mm.
Load capacity: 2 x 15 t (in a set 60 t*)
Height: 180 mm
*) Set bestehend aus JLB 30 G + JFB 30 G
Height: 180 mm
*) Set bestehend aus JLB 30 G + JFB 30 G
Product number:
10 303 140-V
Weight:
98 kg
Product information "Adjustable trolley JFB 30 G"
Advantages of the transport trolley JFB 30 G
- The pivoting cassettes and axles within the frame assure even pressure distribution across all castors and across the floor. No need for complex and expensive hydraulic compensation system.
- The double castor design results in dramatically easier steering and also causes the trolleys on the rear axis to follow in a truer course.
- All transport trolleys are ready for use.
- The adjustable-width transport trolley consists of two transport units and connecting bar.

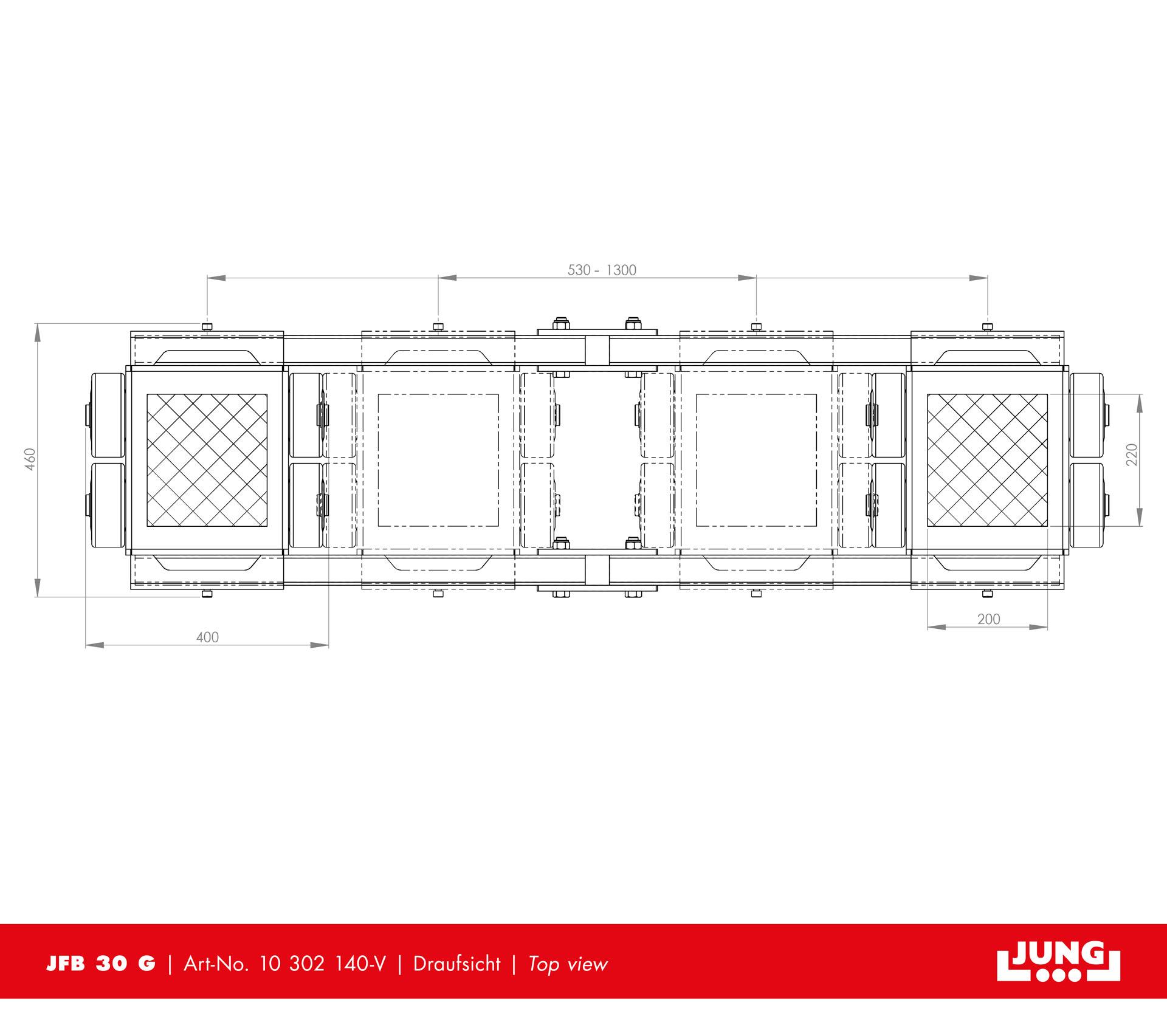

| Cassette dimensions (mm): | 460 x 400 |
|---|---|
| Cassettes adjustable from - to (mm): | 530 - 1300 |

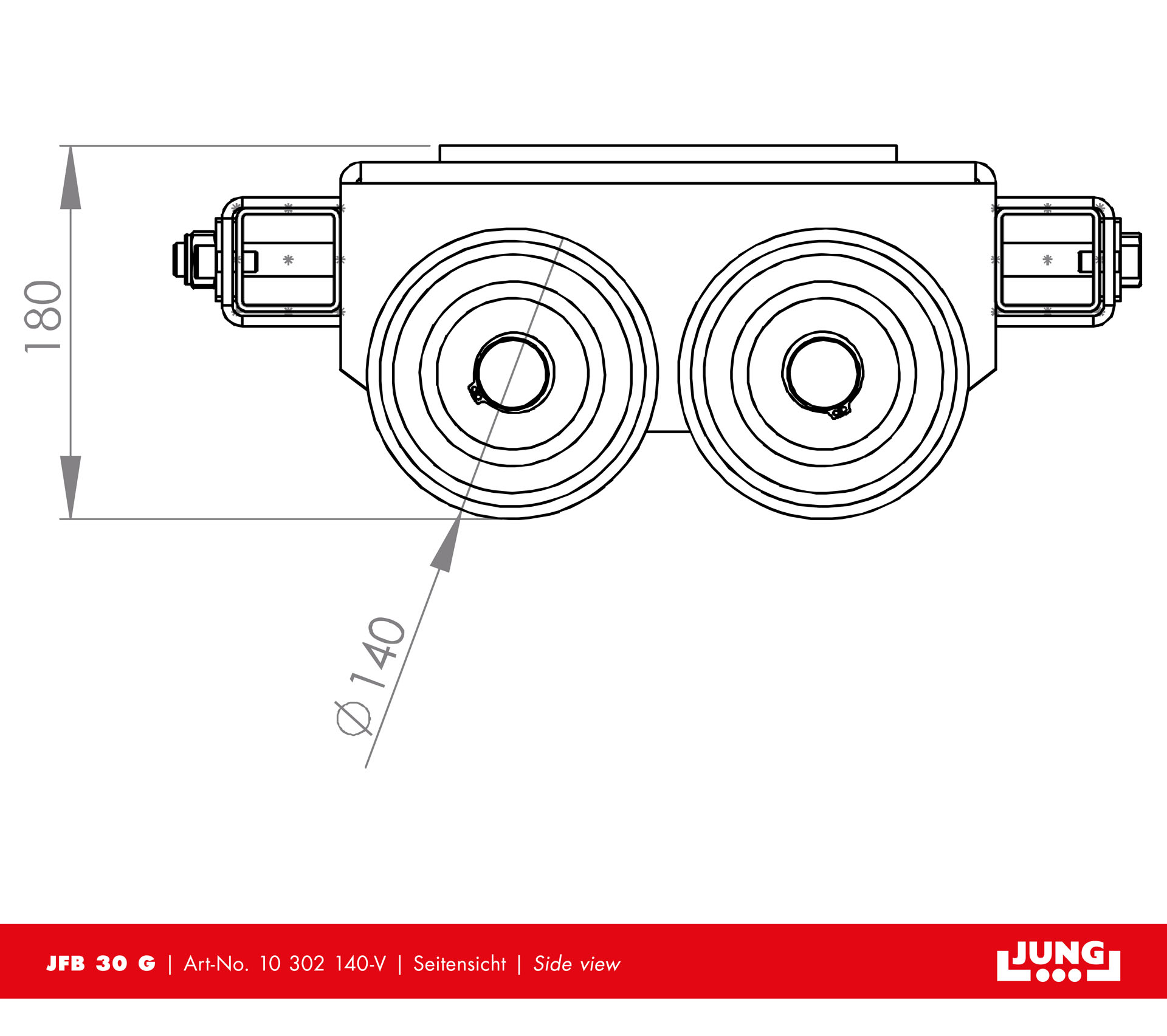

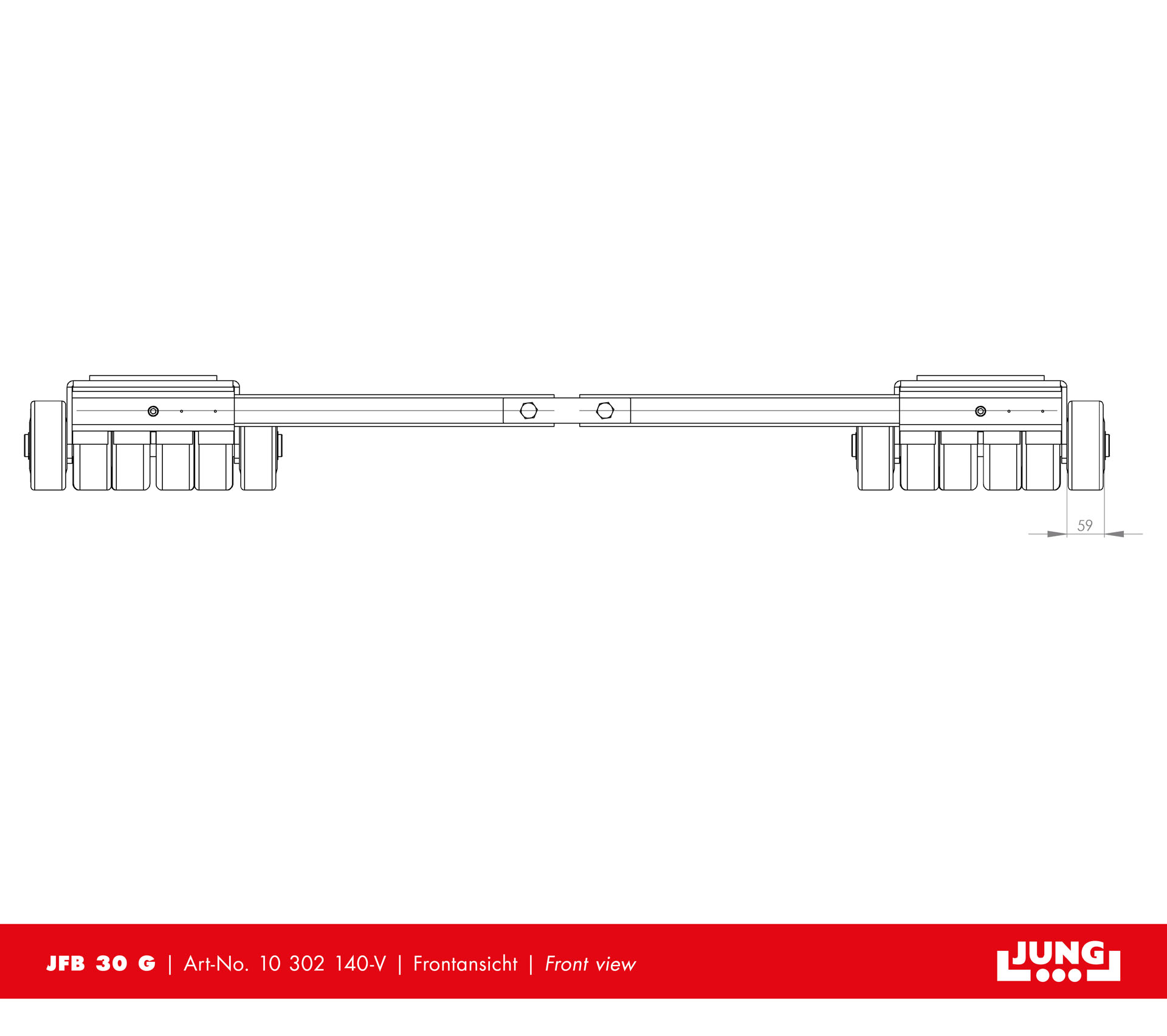

| Castor dimensions (Ø x l mm): | 140 x 59 |
| Connecting bar with joint (mm): | 2 x 1 540 |
| Height (mm): | 180 |
| Load capacity (suitable): | 41 - 80 t |
| Load capacity (t): | 30 |
| Suppoting surface per cassette (mm): | 220 x 200 |
| Weight JUWAthan®plus (kg): | 113 |
