JUNG Hebe- und Transporttechnik GmbH
Steerable trolley JLB 60 H Professional
Power and stability - the JLB 60 H transport trolley from JUNG can lift loads of up to 60 t with an installation height of 230 mm.
Load capacity: 60 t (in a set 120 t*)
Height: 230 mm
Transport trolleys series H professional
*) Set consistng of JLB 60 H + JFB 60 H
Height: 230 mm
Transport trolleys series H professional
*) Set consistng of JLB 60 H + JFB 60 H
Product number:
09 600 206-H
Weight:
425 kg
Product information "Steerable trolley JLB 60 H Professional"
Advantages of the steering transport trolley JLB 60 H professional
- Unrivalled: Small and lightweight trolleys at super high capacity.
- Steerable transport trolleys with pivoting cassettes for a better load distribution at all castors and the floor.
- All transport trolleys are ready for use: the steerable transport trolley is fitted with a ball bearing supported turntable and a handlebar. The adjustable-width transport trolley consists of two transport units and connecting bar.
- Also available as Professional version with JUWAthan twin castors: the double castor design results in dramatically easier steering due to reduced friction forces in curves. The much lower friction resistance also causes the castors on the rear axis to follow in a truer course.
| Castor dimensions (Ø x l mm): | 200 x 85 |
|---|---|

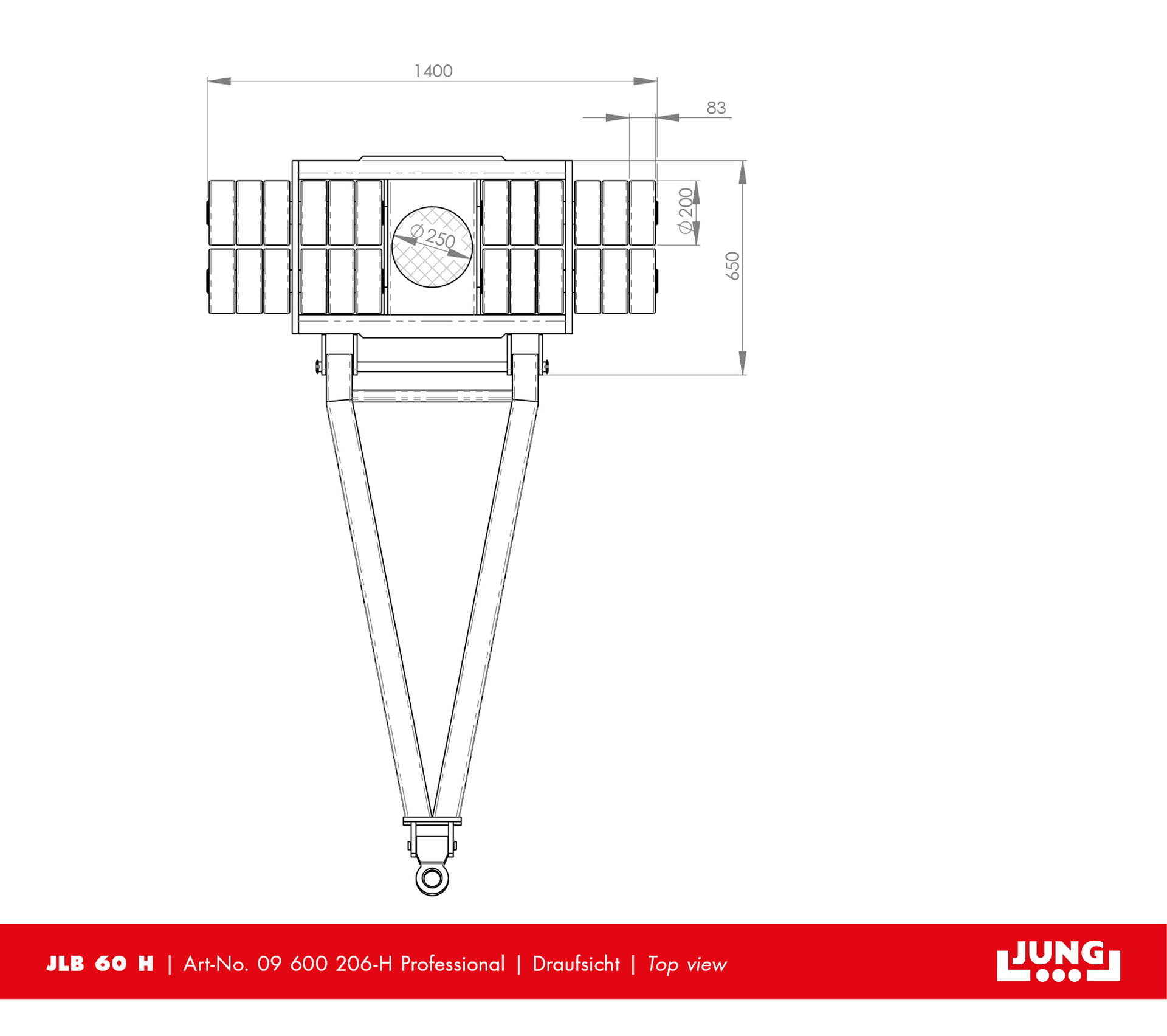

| Dimensions steerable (mm): | 650 x 1 400 |

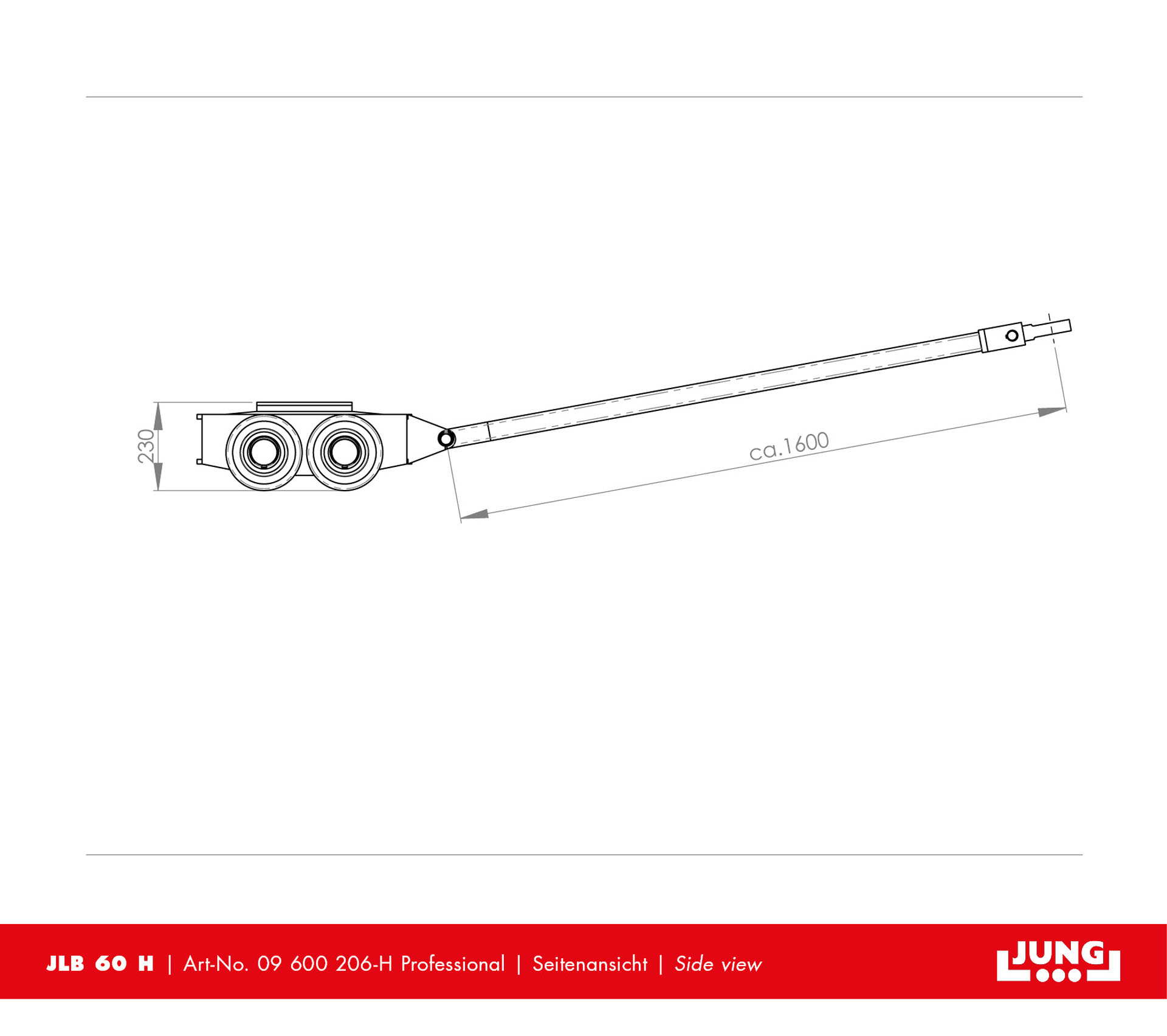

| Handlebar with pulling eye (mm): | 1 600 |
| Height (mm): | 230 |
| Load capacity (suitable): | 81 - 200 t |
| Load capacity (t): | 60 |
| Number of twin castors (pcs.): | 24 |
| Supporting surface of turnable Ø (mm): | 250 |
| Weight JUWAthan® (kg): | 425 |
Additional Products
Adjustable trolley JFB 60 H Professional
10 600 206-H
Load capacity: 2 x 30 t (in a set 120 t*)
Height: 230 mm
Transport trolleys series H professional
*) Set consisting of JLB 60 H + JFB 60 H
Height: 230 mm
Transport trolleys series H professional
*) Set consisting of JLB 60 H + JFB 60 H
Price on request
