JUNG Hebe- und Transporttechnik GmbH

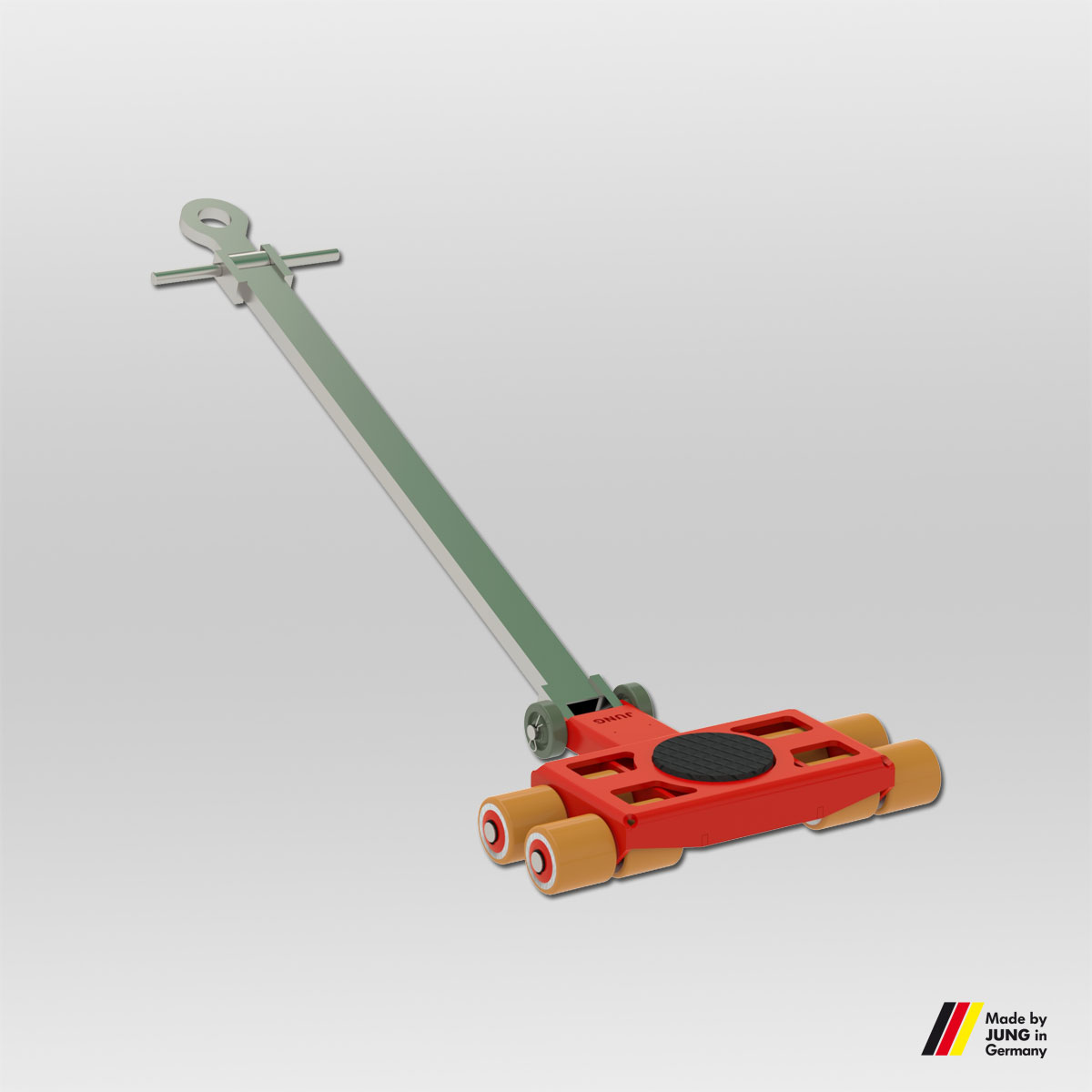

Steerable trolley JLB 6 K
High-performance transport trolley from JUNG. The JLB 6 K steerable trolley transports loads up to 6 t with an installation height of 110 mm.
Load capacity: 6 t (in a set 12t*)
Height: 110 mm
Height: 110 mm
*)Set consisting of JLB 6 K + JFB 6 K
Product number:
07 061 085-V
Weight:
34 kg
Product information "Steerable trolley JLB 6 K"
Advantages of the steerable trolley JLB 6 K
- The transport trolleys are ready to use and include a steerable model with a ball bearing-supported turntable and handlebar.
- The load cassettes are constructed with advanced materials, resulting in reduced weight.
- The support wheels are non-marking.
- The K-series towing bars can be fitted with a removable handle, which is also available as a separate re-fitting set.
- The transport trolleys have been inspected to meet technical regulation ANSI/ASME (USA) standards.
| Castor dimensions (Ø x l mm): | 85 x 85 |
|---|---|

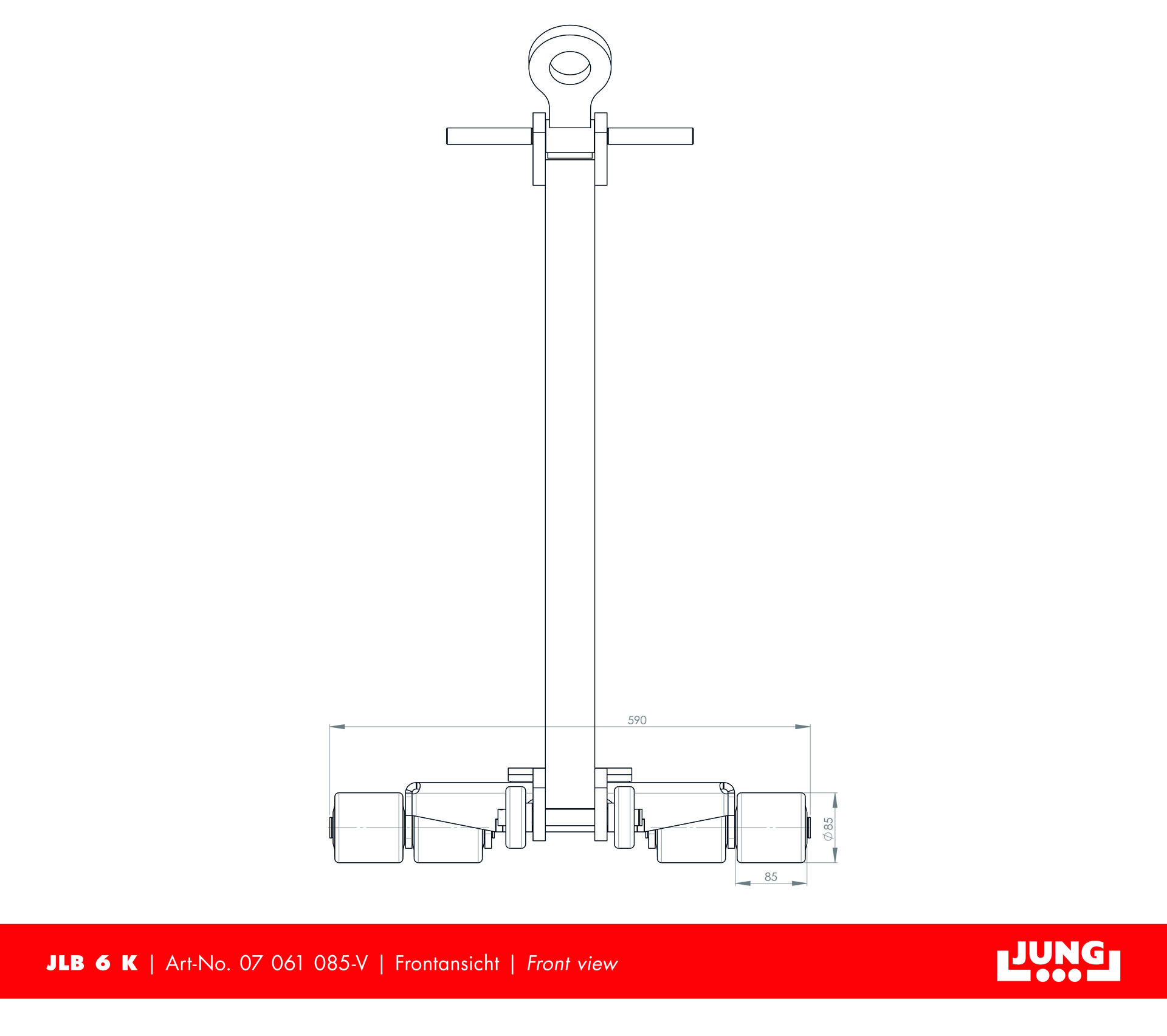

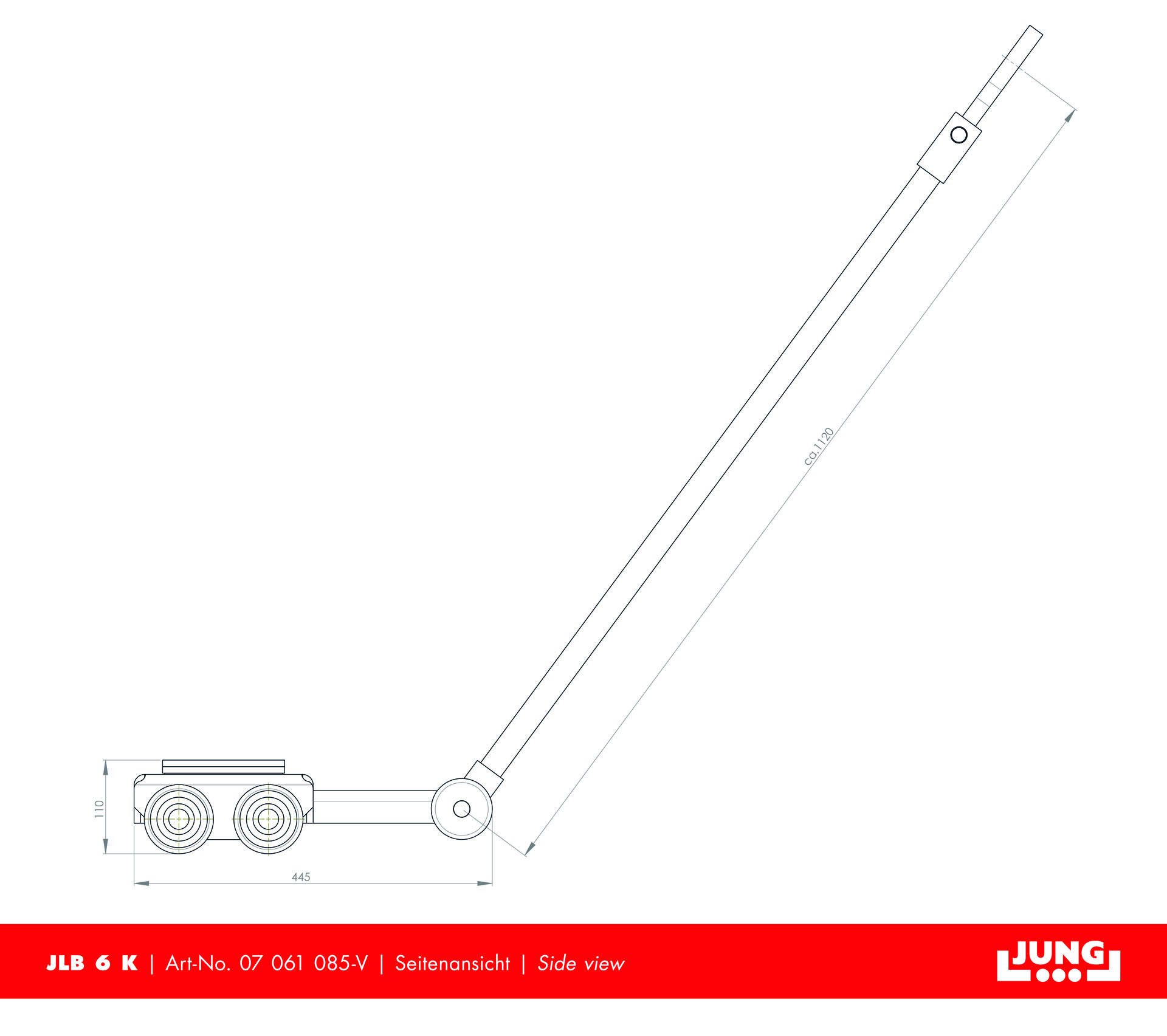

| Dimensions steerable (mm): | 445 x 590 |
| Handlebar with pulling eye (mm): | 1 210 |
| Height (mm): | 110 |
| Load capacity (suitable): | 11 - 15 t |
| Load capacity (t): | 6 |
| Number of castors (Pieces): | 8 |

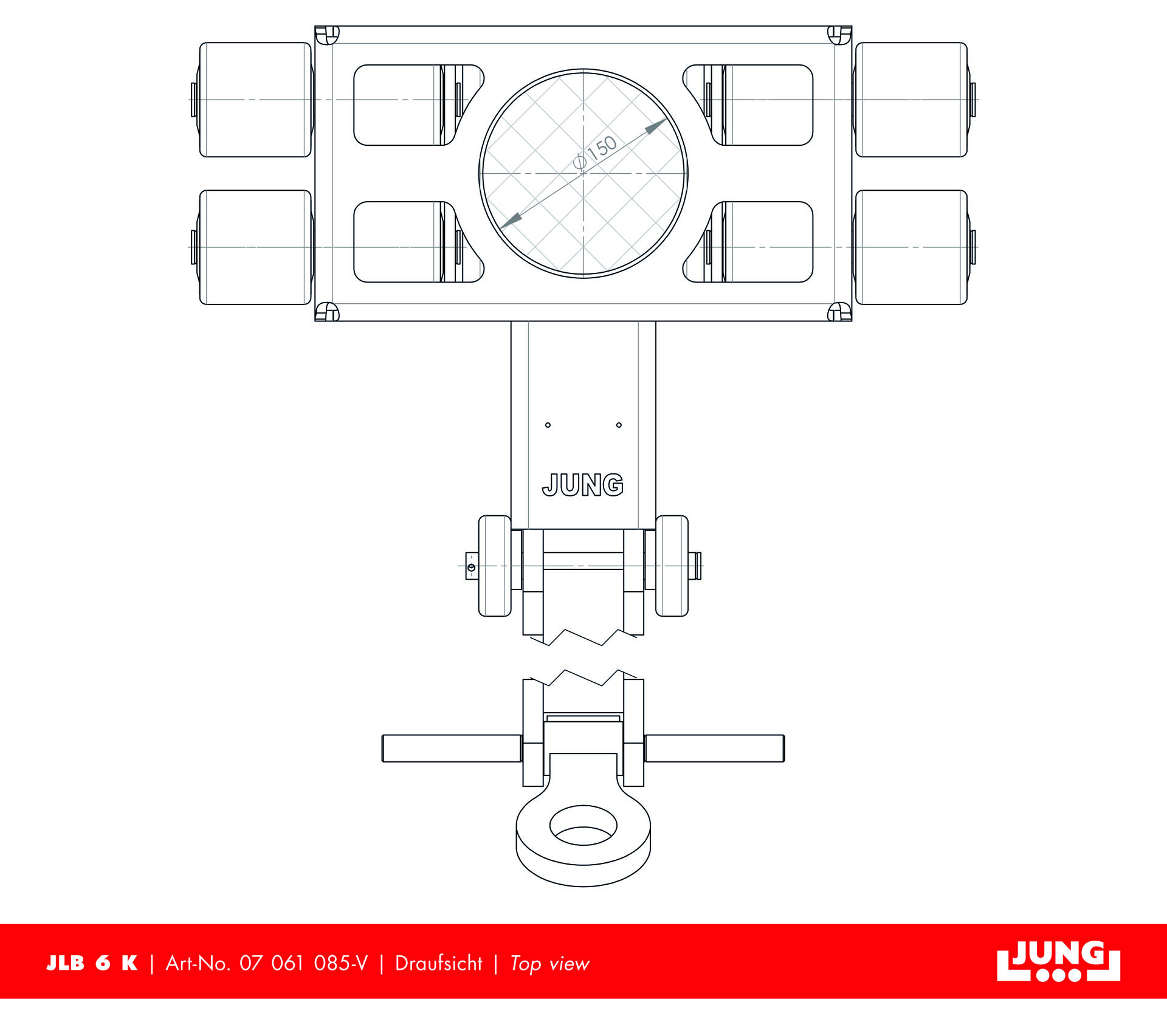

| Supporting surface of turnable Ø (mm): | 150 |
| Weight JUWAthan®plus (kg): | 33 |
