JUNG Hebe- und Transporttechnik GmbH
Steerable trolley JLB 3 K
High-performance transport trolley from JUNG. The JLB 3 K steering unit transports loads up to 3 t with an installation height of 110 mm.
Load capacity: 2 x 1,5 t (in a set 6t*)
Height: 110 mm*)Set consisting of JLB 3 K + JFB 3 K
Product number:
07 031 085-V
Weight:
12 kg
Product information "Steerable trolley JLB 3 K"
Advantages of the transport trolley JLB 3 K
- Equipped with highest quality castors as standard.
- Reduced weight due to advanced construction of load cassettes.
- All transport trolleys are ready for use: the steerable transport trolley is fitted with a ball bearing supported turntable and a handlebar.
- Non-marking support wheels.
- The K-series towing bars are also available with a removable handle. The removable handle is also available as a re-fitting set.
- Inspected according to technical regulation ANSI ⁄ ASME (USA)
With an installation height of only 110 mm, the armoured castors fit under almost any load. Whether equipped with a practical handle or additionally with a drawbar eye, the trolleys allow easy manoeuvring. Ball-bearing runners are used, which have a low-wear coating - the JUWAthan plus coating.

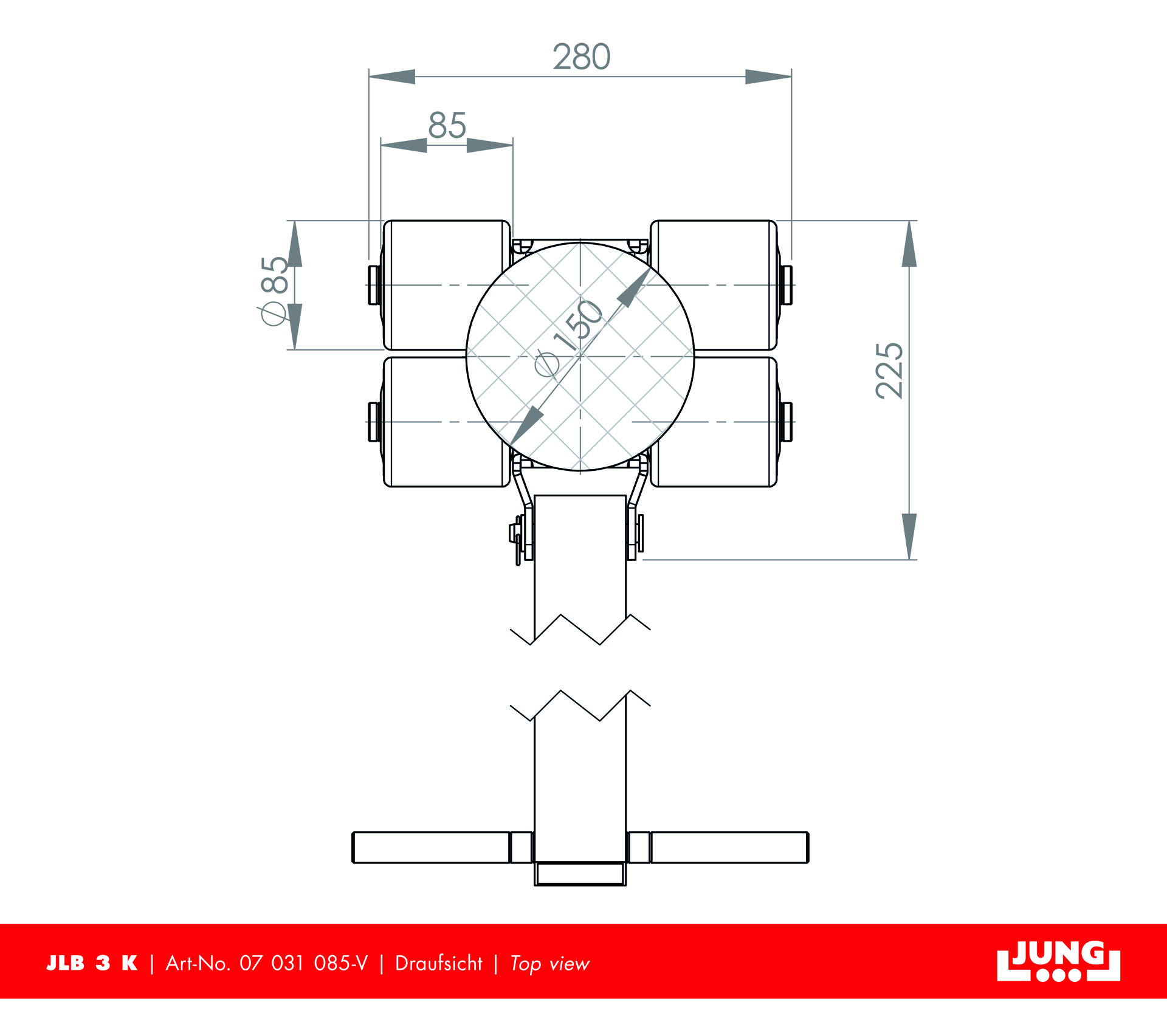

| Castor dimensions (Ø x l mm): | 85 x 85 |
|---|---|
| Dimensions steerable (mm): | 225 x 280 |

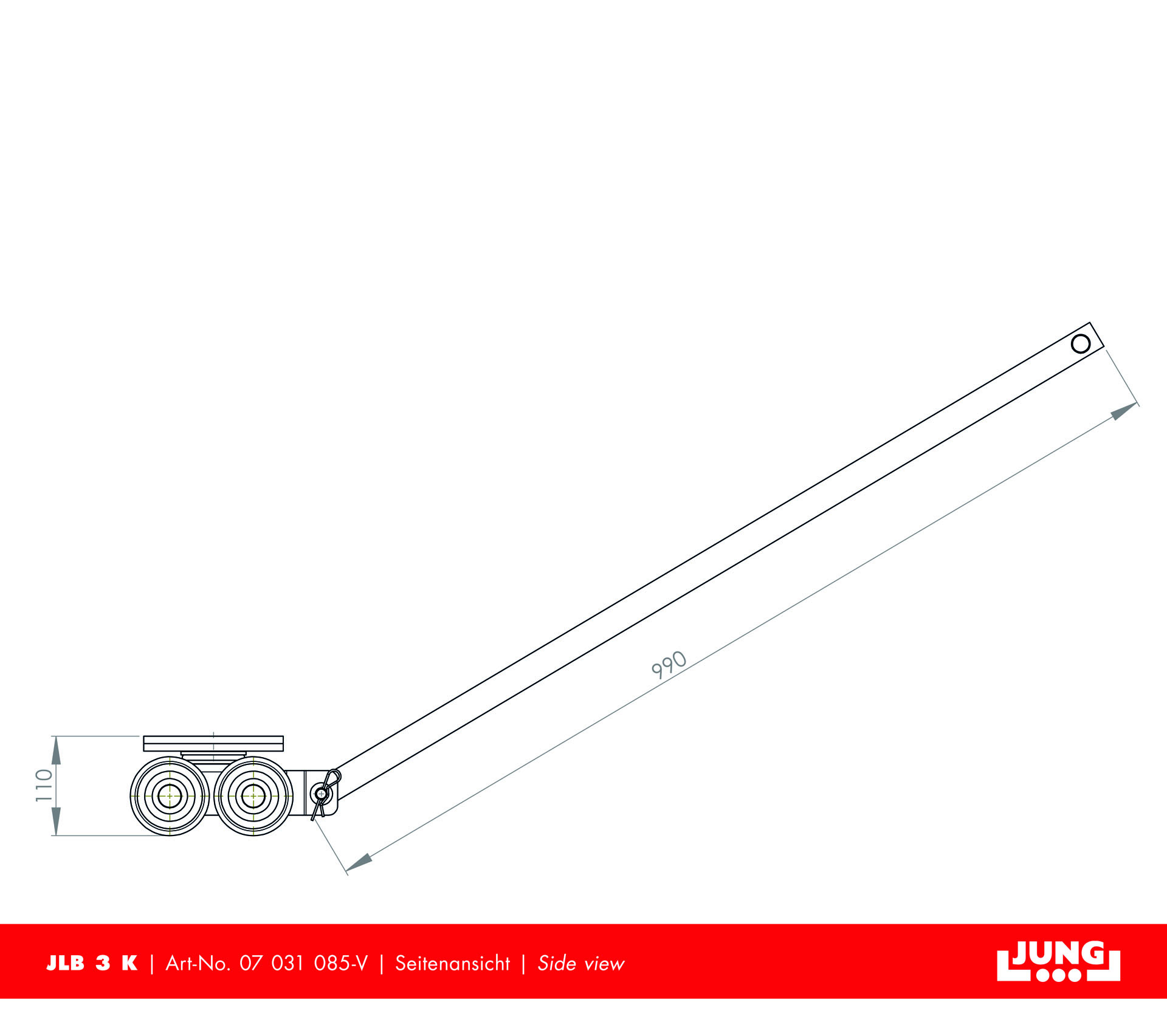

| Handlebar with pulling eye (mm): | 990 |
| Height (mm): | 110 |
| Load capacity (t): | 3 |
| Number of castors (Pieces): | 4 |
| Supporting surface of turnable Ø (mm): | 150 |
| Weight JUWAthan®plus (kg): | 12 |
