Steerable trolley JL 14 K Professional
High-performance transport trolley from JUNG. The JLB 14 K professional steerable trolley transports loads up to 14 t with an installation height of 110 mm.
Load capacity: 14 t (in a set 28 t*)
Height: 110 mm
Transport trolley series K professional
*)Set consisting of JL 14 K + JFB 14 K
Height: 110 mm
Transport trolley series K professional
*)Set consisting of JL 14 K + JFB 14 K
Product number:
07 140 085-D
Weight:
65 kg
Product information "Steerable trolley JL 14 K Professional"
Qualities of the transport trolley JL 14 K Professional
- The double roller design results in dramatically easier steering due to reduced friction forces in castors. The much lower friction resistance also causes the trolleys on the rear axis to follow in a truer course.
- You need 30 % less power for steering.
- Higher capacity with professional castors, at same dimension as series K trolleys.
- All transport trolleys are ready for use: the steerable transport trolley is fitted with a ball bearing supported turntable and a handlebar.
- The series K handlebars are now also available with a removable handle, which is also available as a re-fitting set.
- The support wheels are non-marking.
- Inspected according to technical regulation ANSI ⁄ ASME (USA)
| Castor dimensions (Ø x l mm): | 85 x 85 |
|---|---|

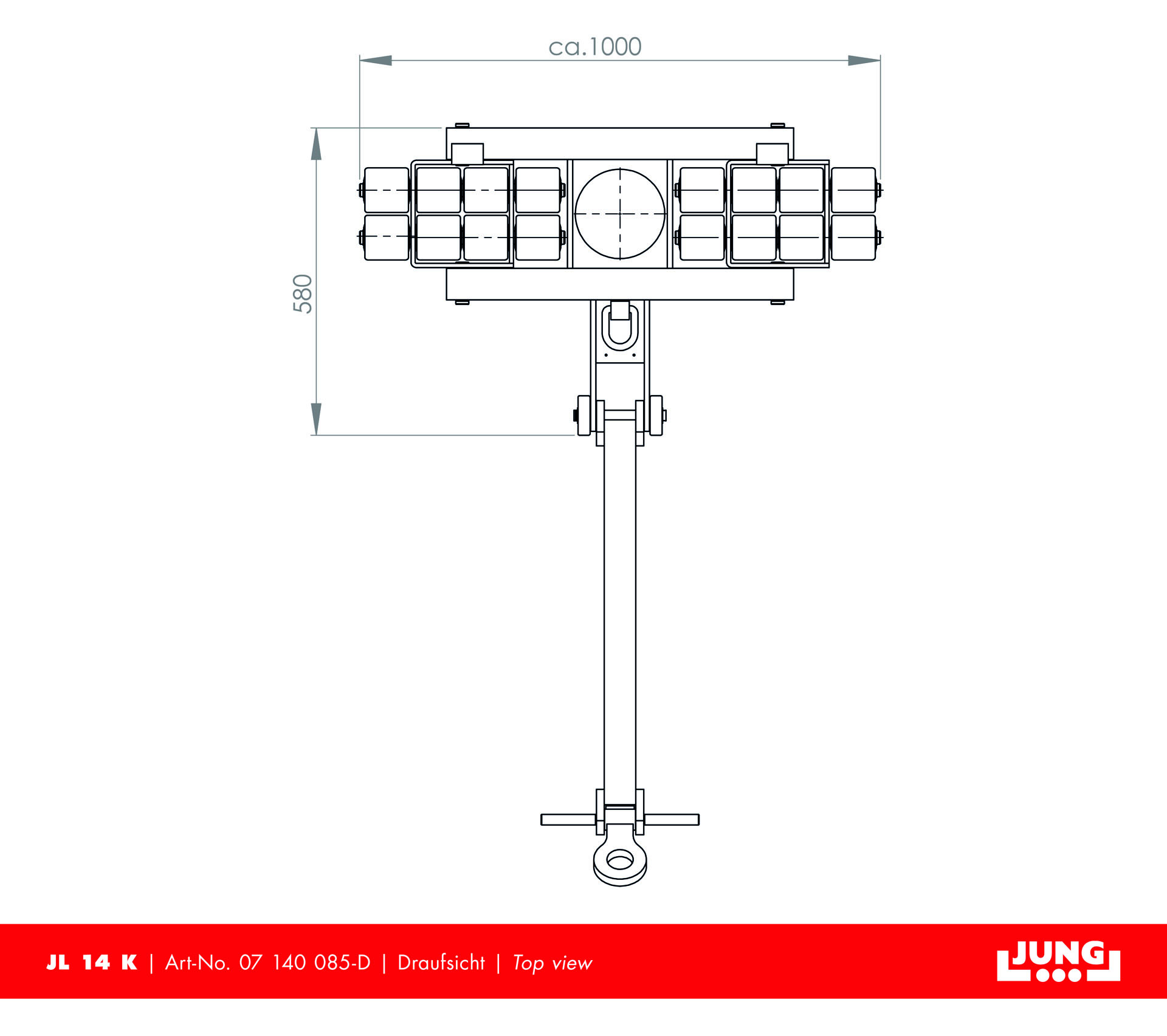

| Dimensions steerable (mm): | 580 x 1 000 |

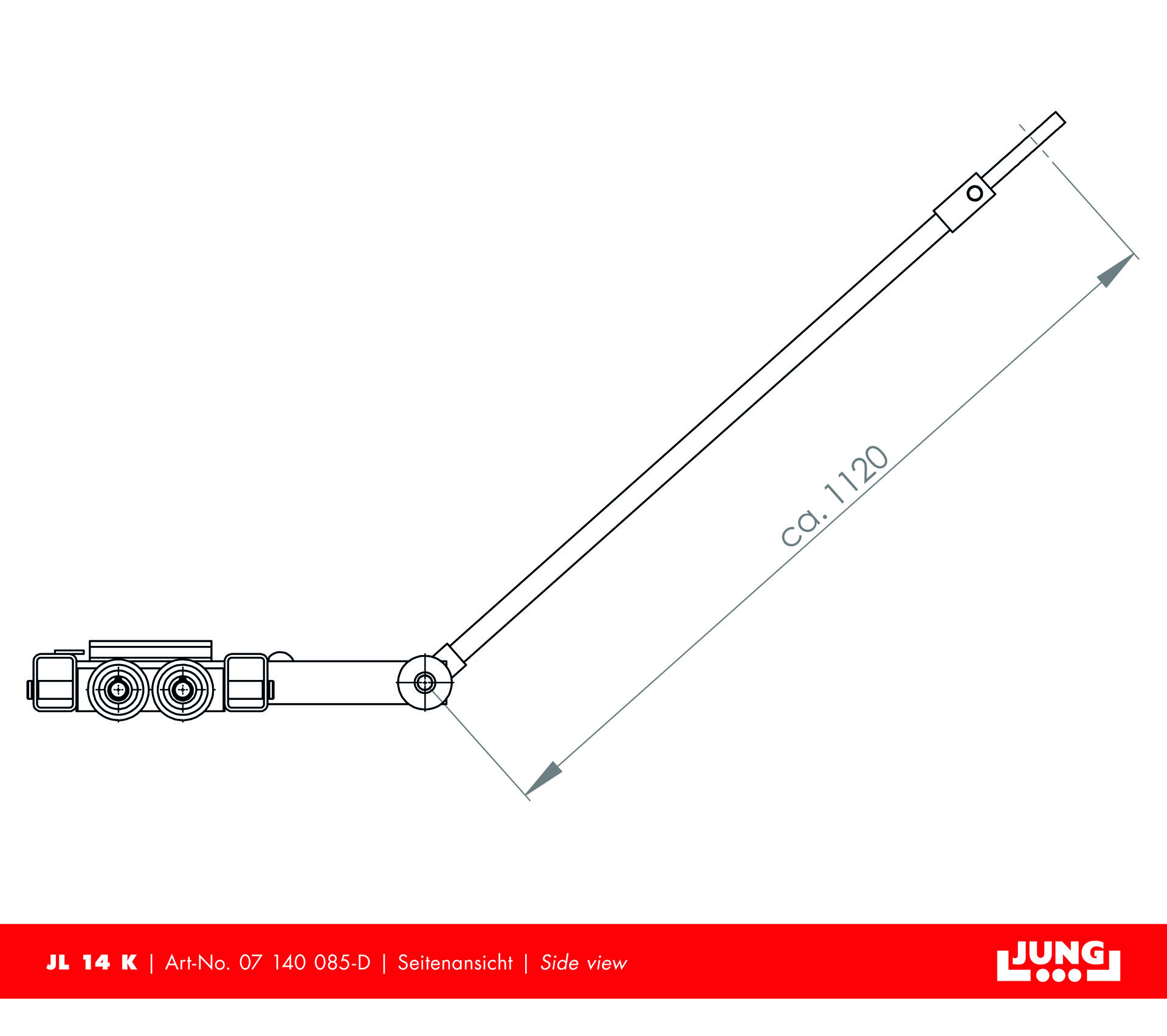

| Handlebar with pulling eye (mm): | 1 210 |
| Height (mm): | 110 |
| Load capacity (suitable): | 26 - 30 t |
| Load capacity (t): | 14 |
| Number of twin castors (pcs.): | 16 |
| Supporting surface of turnable Ø (mm): | 170 |
| Weight Professional (kg): | 65 |
