Hydraulic jack JH 15 G plus
High-quality machine lifter from JUNG. The hydraulic lifting device JH 15 G plus lifts a load of 15 t and reaches a maximum lifting height of 175 mm.
with integrated pump unit
Load capacity: 15 t
Stroke: 175 mm
Load capacity: 15 t
Stroke: 175 mm
Product number:
01 150 102-G
Weight:
48 kg
Product information "Hydraulic jack JH 15 G plus"
Advantages of the hydraulic jack JH 15 G plus
- Slide shoe design inside the guiding track prevents twisting of the piston inside the lifting cylinder. This guarantees better force distribution, less friction and reduced wear compared to conventional jacks.
- Reduced maintenance costs due to easy change slide shoes and removable pump unit.
- Extremely lightweight with high performance due to the use of highquality material and innovative design.
- Continuous adjustment to the load due to swiveling safety toe. Secure stableness in every situation even in lifted position.
- The hydraulic jack JH 15 G plus is serial outfitted with a fast stroke and also available with a spring return.
- Die-forged steel toe provides impact resistance.

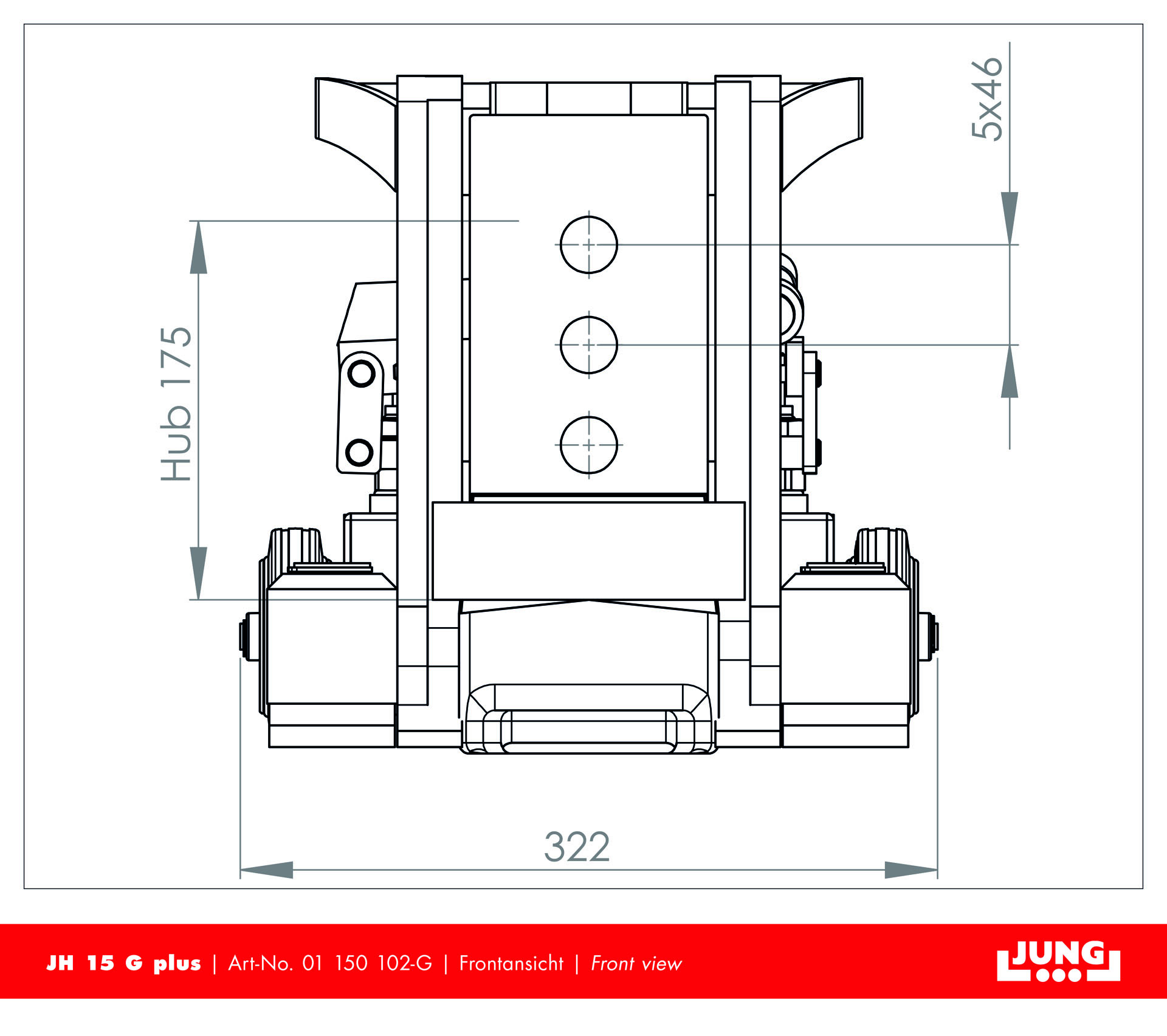

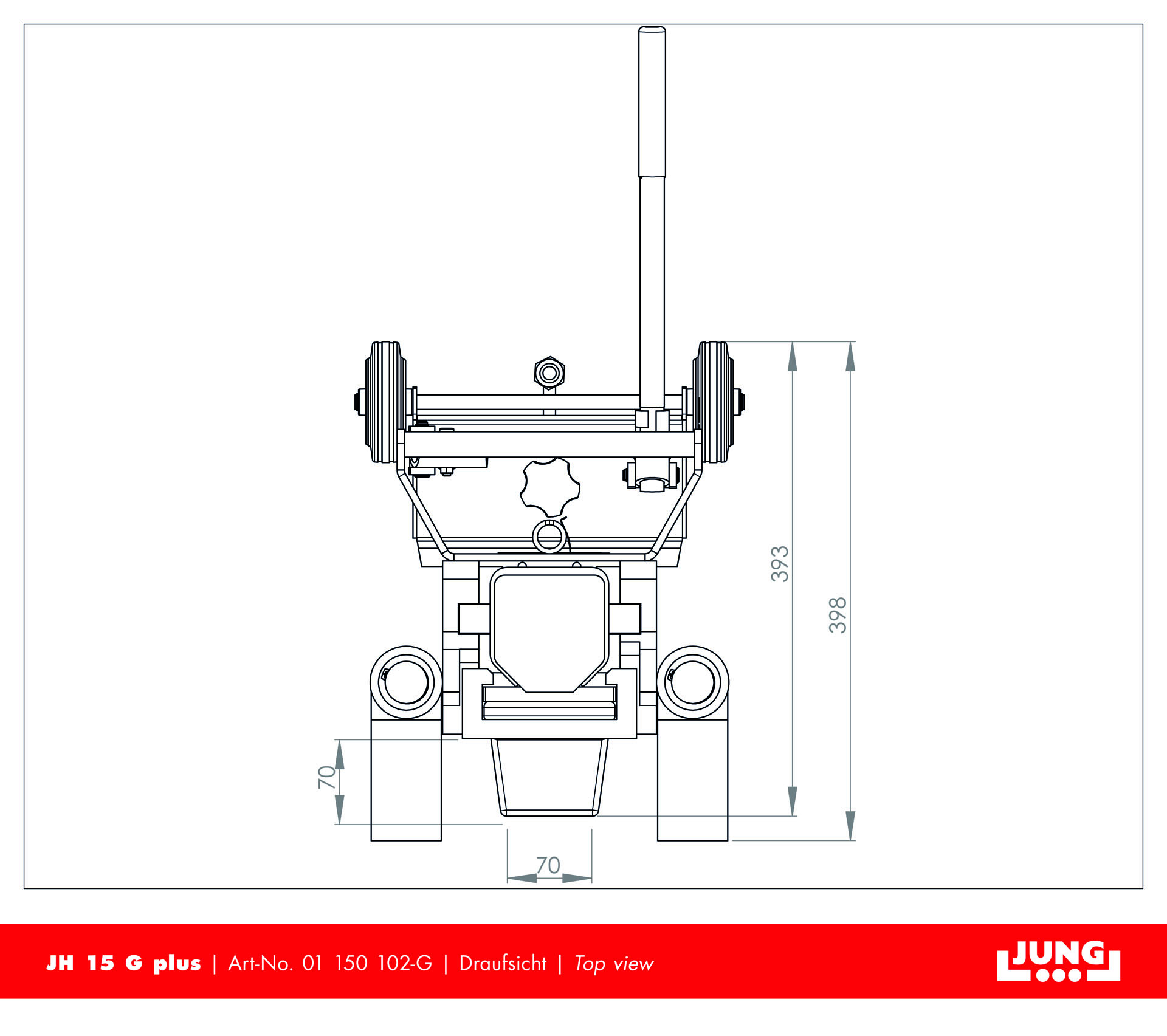

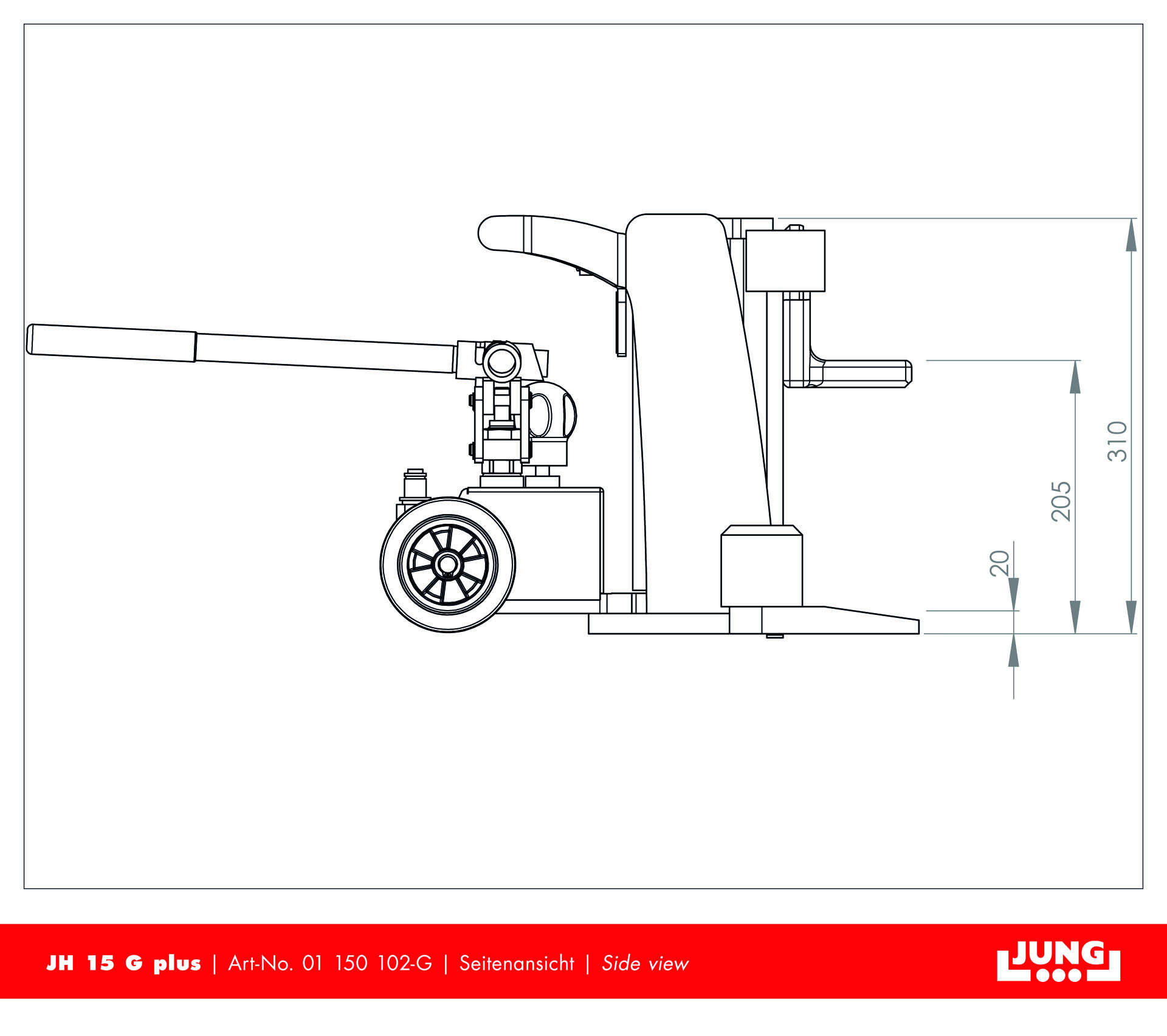

| Cylinder volume (l): | 0,5 |
|---|---|
| Height (mm): | 310 |
| Length feet in front (mm): | 415 |
| Length feet on side (mm): | 393 |
| Lift toe adjustment: | 5 x 46 |
| Load capacity on top plate (t): | 15 |
| Maximum lift toe height (mm): | 205 |
| Minimum lift toe height (mm): | 20 |
| Pump unit included: | Ja |
| Stroke (mm): | 175 |
| Toe depth (mm): | 64 |
| Toe width front (mm): | 80 |
| Top plate height (mm): | 310 |
| Width (mm): | 322 |
