Transport trolley JLA-e 5/12 G with stroke facelift

The electric-powered transport trolley JLA-e 5/12 G is easy to operate and does not require an additional towing vehicle. Stroke of 50 mm and suitable for loads up to 12 tons.

Load capacity: 5 t
Stroke: 50 mm
Height: 180 mm

Electric-powered transport trolley with stroke

Price on request

Prices incl. VAT plus shipping costs

Available

Request an offer

PDF-Datasheet

Product number: 22 005 210-G hub

Weight: 195 kg

Product information "Transport trolley JLA-e 5/12 G with stroke facelift"

Advantages of electric-powered transport trolleys JLA-e 5/12 with stroke facelift

No separate towing vehicle is required.
Convenient, with a battery and user-friendly wireless remote control. The remote control can be switched from two-handed to one-handed operation (flexibly for left or right hand). One-handed operation makes it easy to keep the trolley on a precise straight path.
The new battery indicator displays various parameters in real time, such as voltage, current, or the current charge level.
High runtime (under full load and ideal conditions) of approximately 3–4 hours thanks to the directly driven motor.
Short charging time for the self-propelled transport trolley.

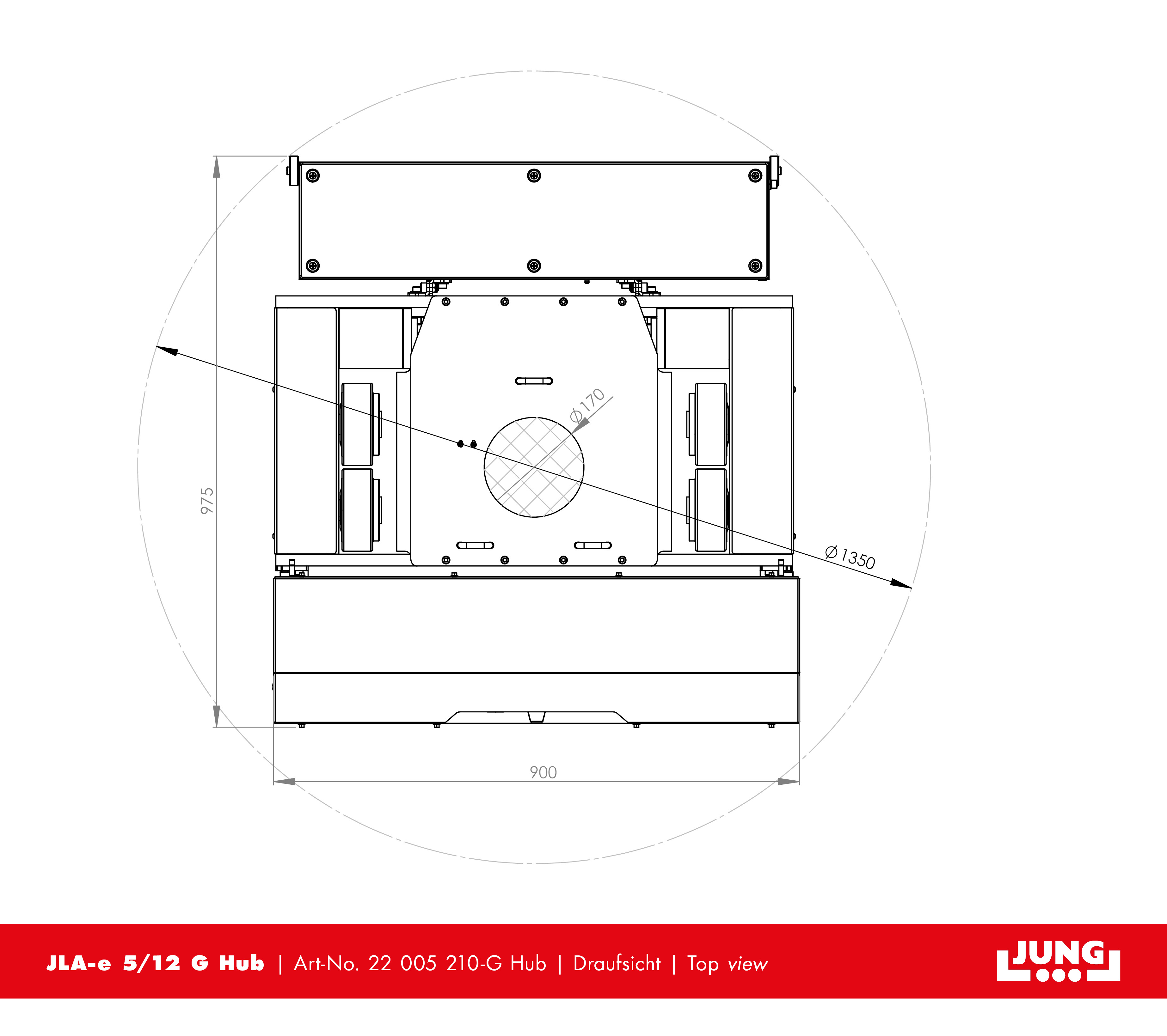

The unit can rotate 360°.
The speed is infinitely adjustable.
The advanced LiFePo4 cell technology, with higher energy density, allows for a more compact design.
The trolley is compatible with all G-series tank rollers. However, the rollers are not included in the delivery.
The side cover plates with the JUNG logo provide protection from dirt and a sleek, appealing design.

Battery and charger:	1 x

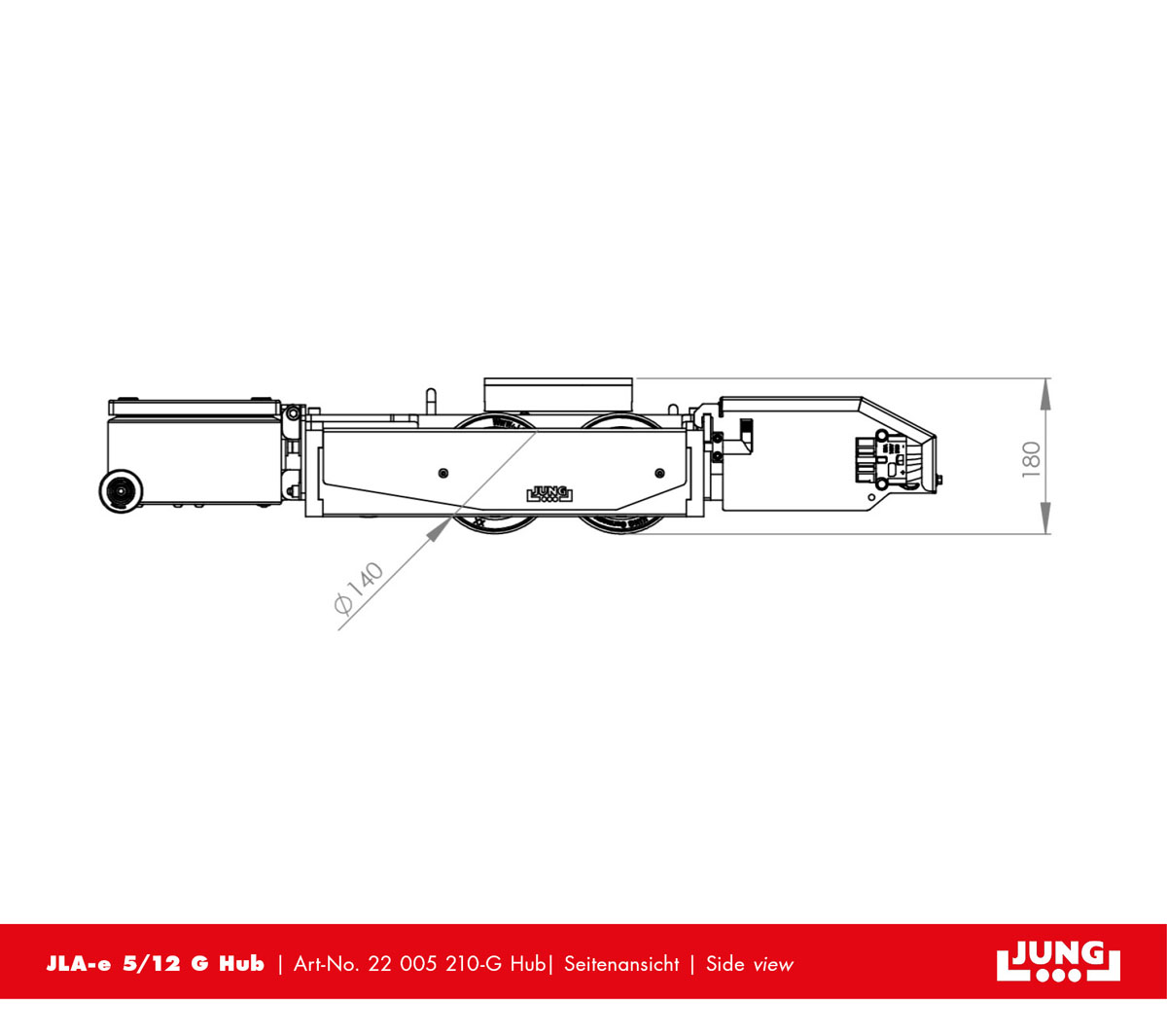

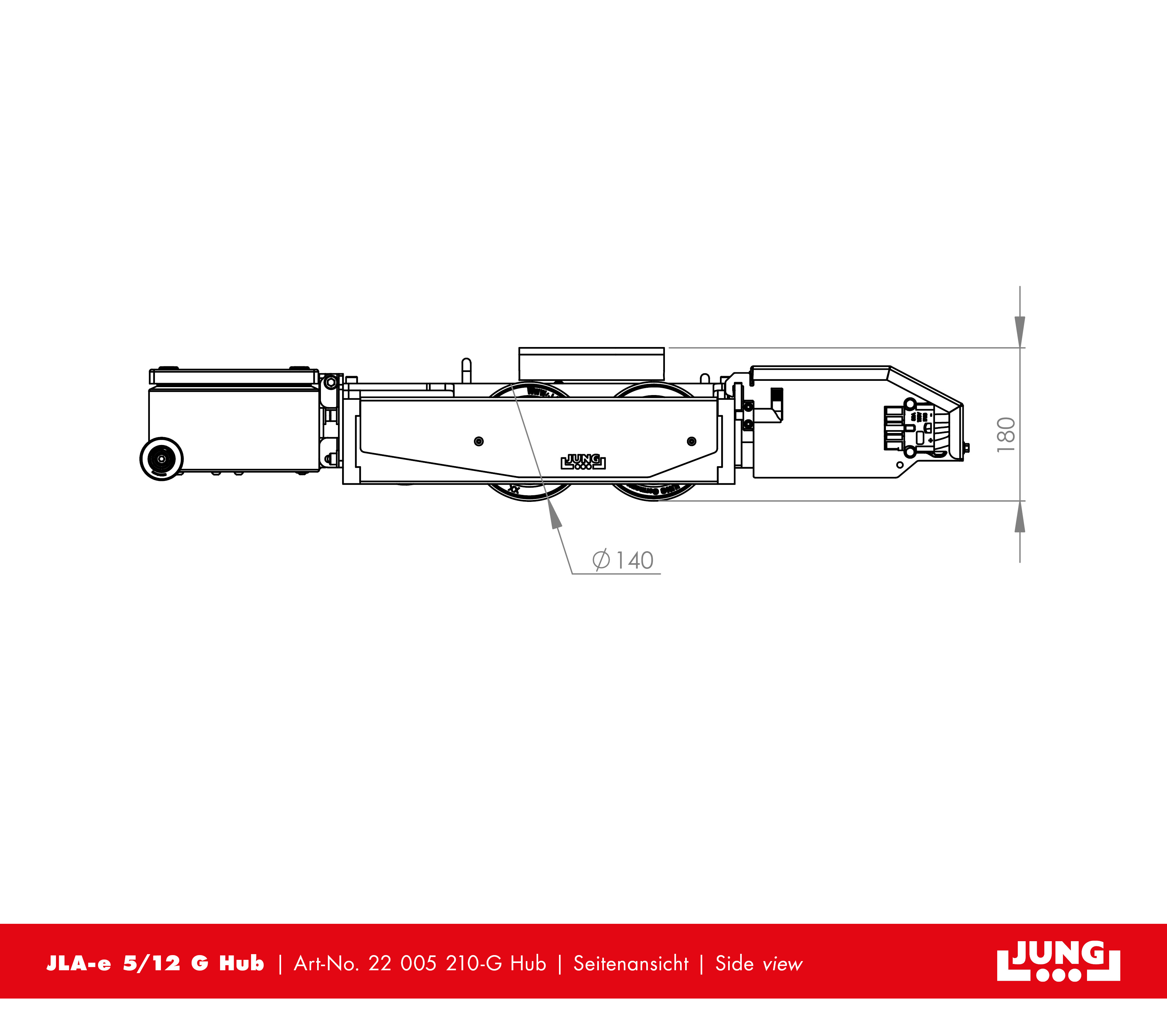

Castor dimensions (Ø x l mm):	140 x 59

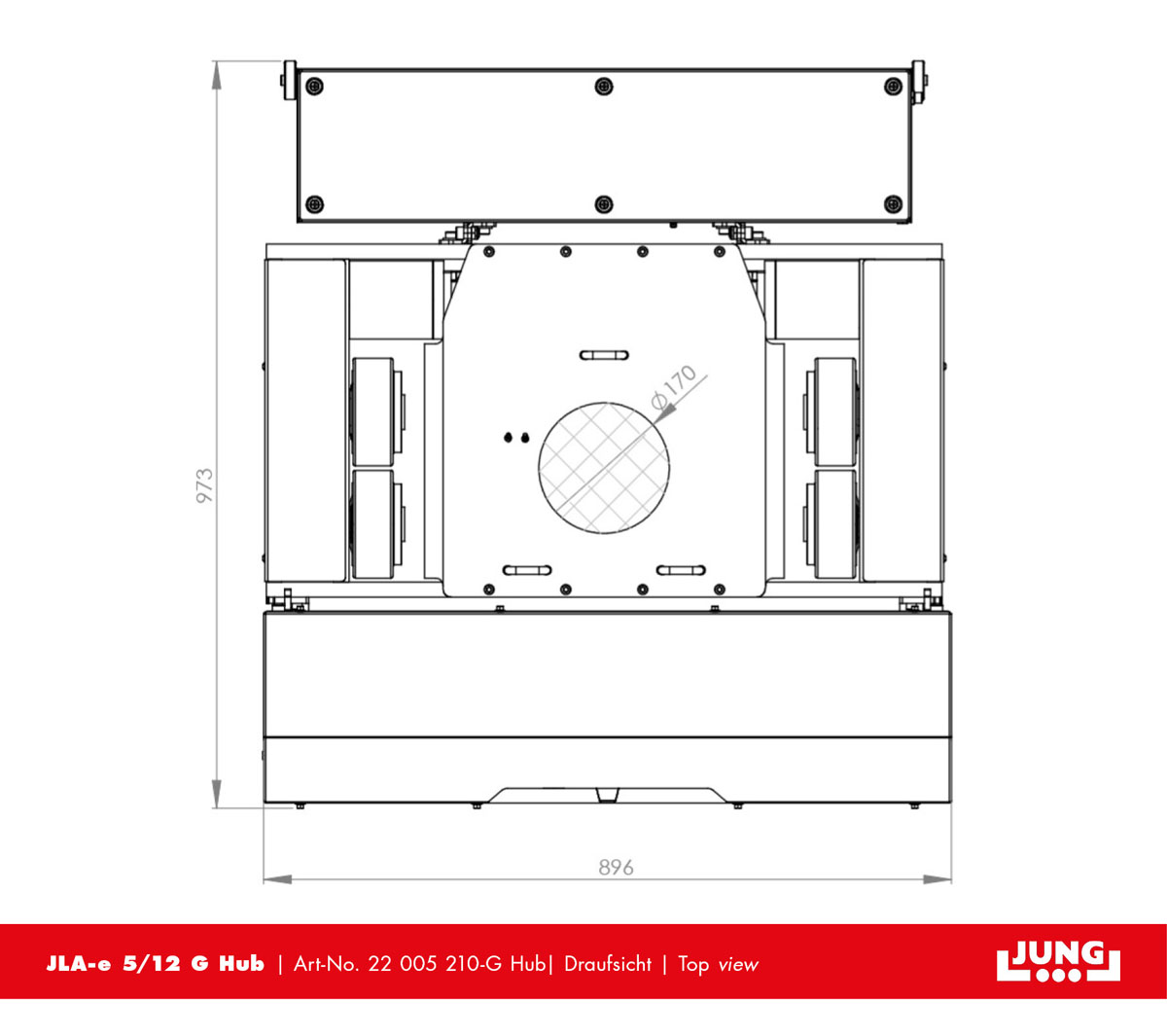

Dimensions (mm):	975 x 900
Height (mm):	180
Load capacity (t):	5
Number of castors (Pieces):	4
Operational time (h):	4 - 5
Pulling capacity (t):	12
Remote control, charger and belt with holder:	1 x
Speed (m/min):	10
Stroke (mm):	50
Supporting surface of turnable Ø (mm):	170
Weight with battery (kg):	205
