Transport trolley JLA-e 15/30 G with stroke facelift

The electric-powered transport trolley JLA-e 15/30 G is easy to operate and does not require an additional towing vehicle. Stroke of 50 mm and suitable for loads up to 30 tons.

Load capacity: 15 t
Stroke: 50 mm
Height: 200 mm

Electric-powered transport trolleys with stroke

Price on request

Prices incl. VAT plus shipping costs

Available

Request an offer

PDF-Datasheet

Product number: 22 015 210-G hub

Weight: 380 kg

Product information "Transport trolley JLA-e 15/30 G with stroke facelift"

Advantages of the electric-powered transport trolleys JLA-e 15/30 G with stroke

Maximum stroke of 50 mm.
The load can be moved when fully extended.
No separate towing vehicle is required.
Compact and practical, with battery operation and a user-friendly wireless remote control. Based on 2.4 GHz technology, equipped with a wired connection socket, allowing for one- or two-handed operation, vibration feedback, and other features.
Long runtime (under full load in ideal conditions) of approximately 4-5 hours due to a direct-drive motor.
The new generation of drives prevents rolling, even when powered off.
The new battery display shows various parameters in real time, such as voltage, current, or charge status.
Short charging time for the self-propelled transport unit JLA-e 15/30 G.
Rotatable by 360°.
Stepless speed control.
Compact external dimensions.
The electric transport trolley is compatible with the G series trolleys (adjusted installation height). These are not included in the delivery.
The advanced LiFePo4 cell technology, with higher energy density, allows for a more compact design.
Side cover plates with JUNG branding provide dirt protection and a visually appealing design.

Battery and charger:	1 x

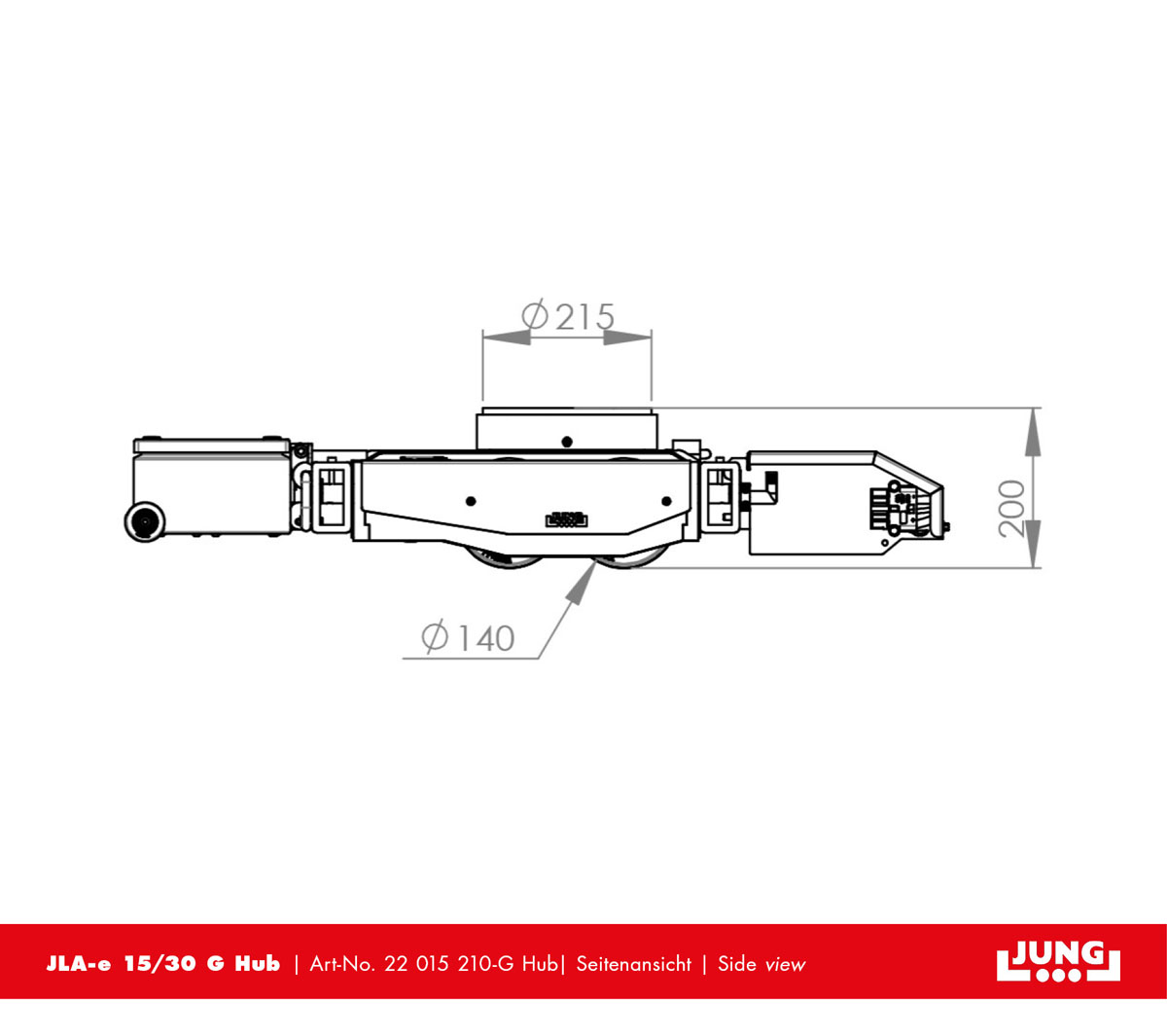

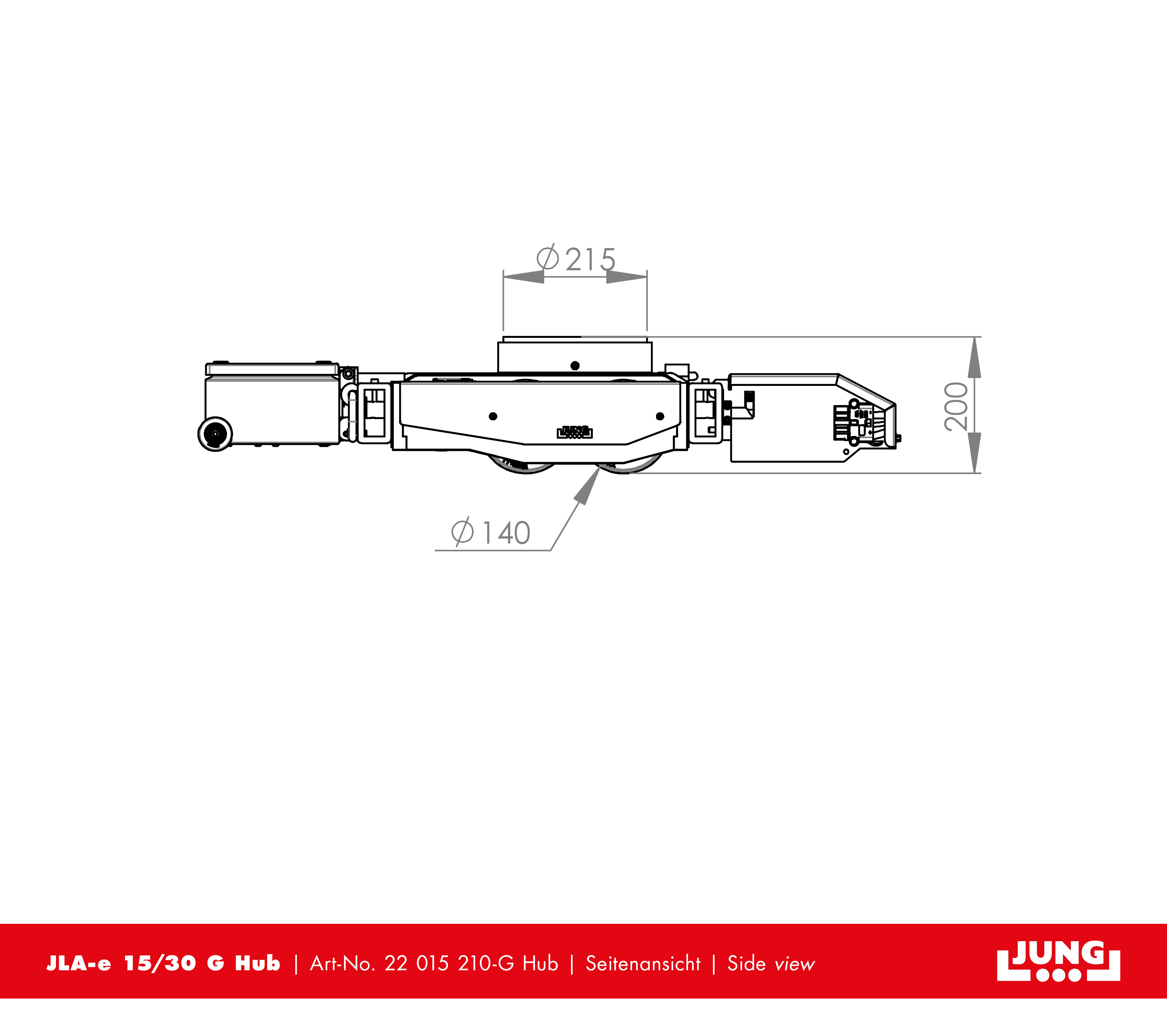

Castor dimensions (Ø x l mm):	140 x 59

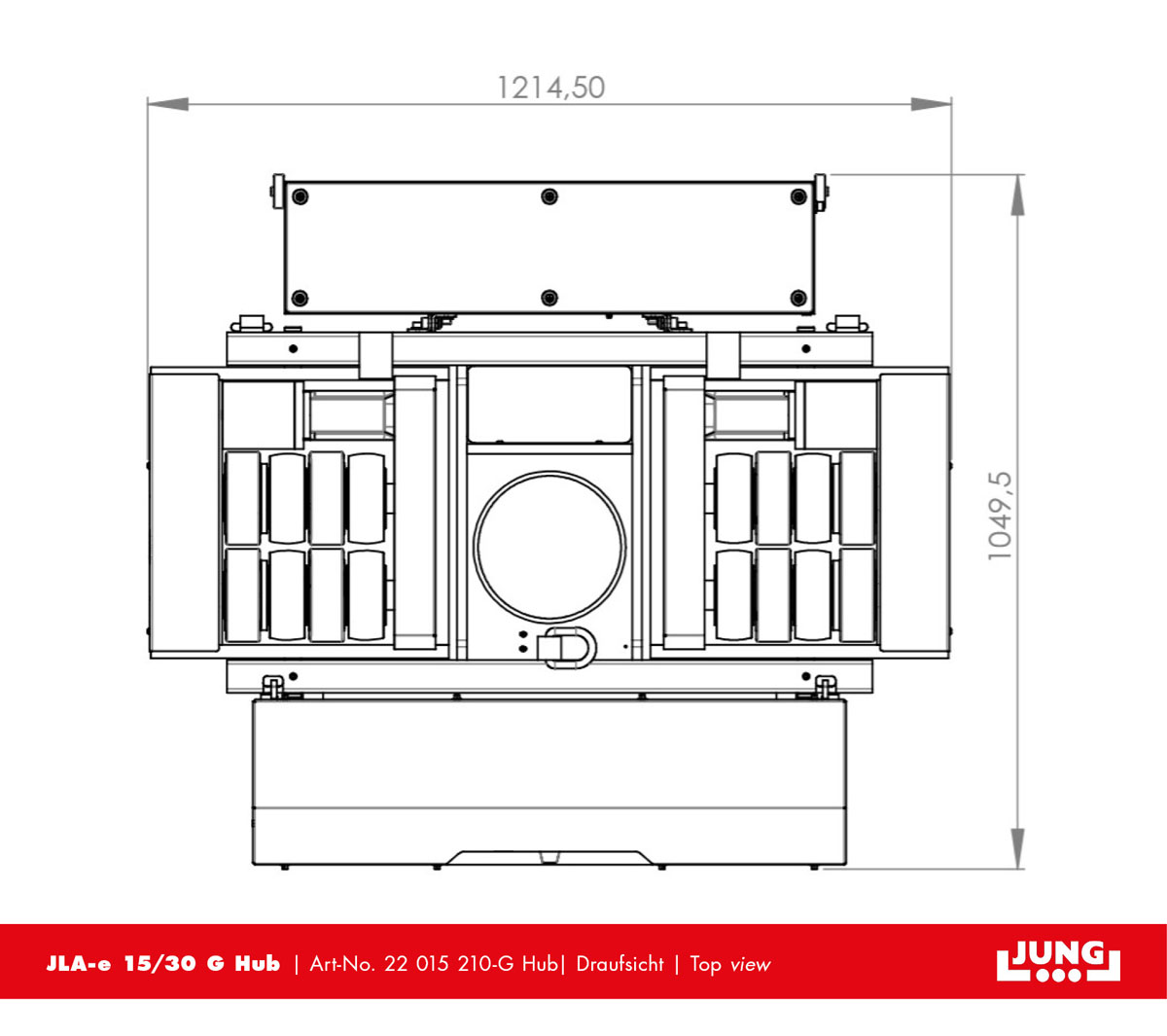

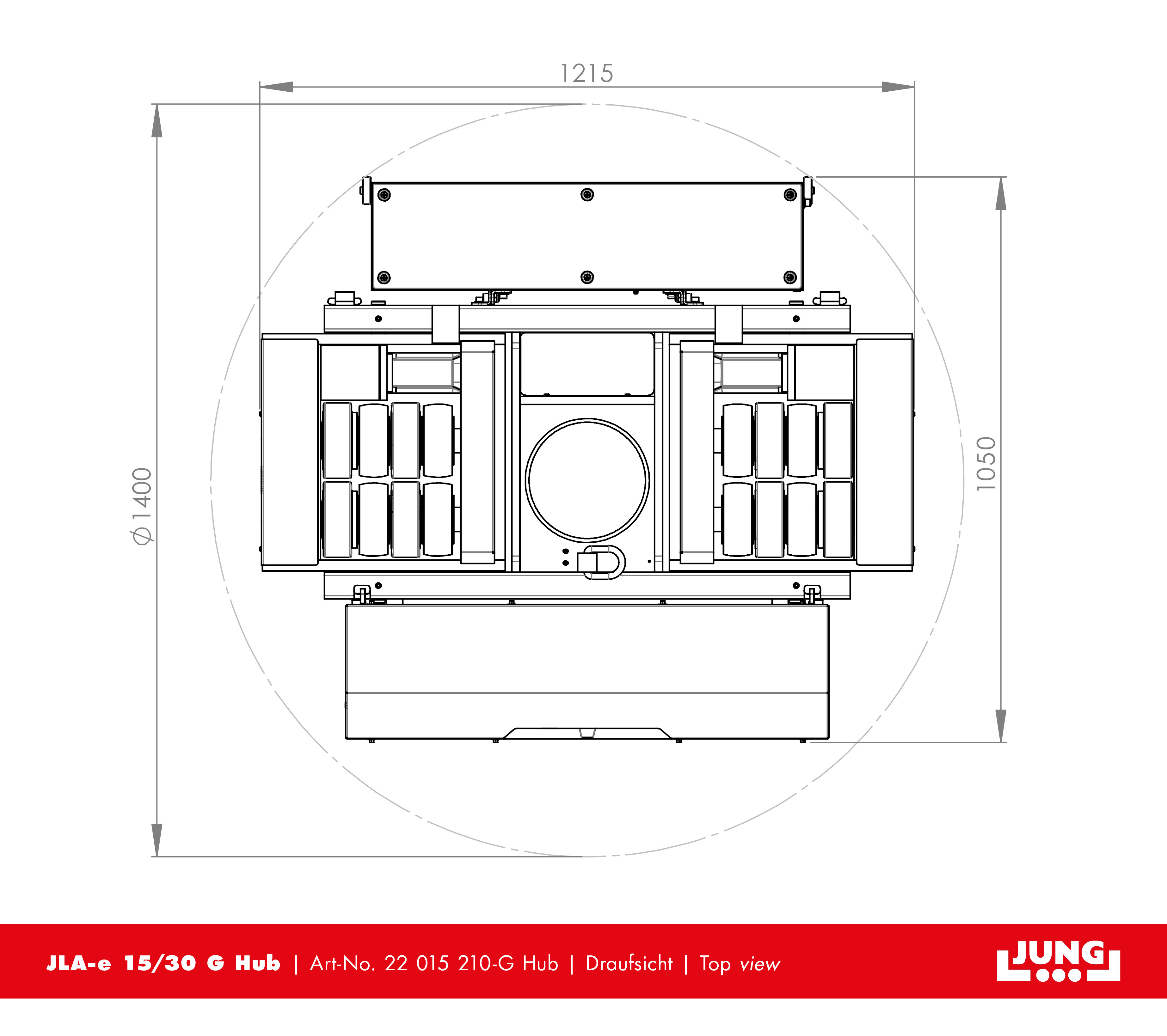

Dimensions (mm):	1 050 x 1 215
Height (mm):	200
Load capacity (t):	15
Number of castors (Pieces):	16
Operational time (h):	4 - 5
Pulling capacity (t):	30
Remote control, charger and belt with holder:	1 x
Speed (m/min):	6,5
Stroke (mm):	50
Supporting surface of turnable Ø (mm):	215
Weight with battery (kg):	315
