JUNG Hebe- und Transporttechnik GmbH
Steerable trolley JLB 16 S
High-performance transport trolley from JUNG. The JLB 16 S steerable trolley transports loads up to 16 t with an installation height of only 125 mm.
with JUWAthan castors
Load capacity: 16 t (in a set 32 t*)
Height: 125 mmLoad capacity: 16 t (in a set 32 t*)
*)Set consisting of JLB 16 S + JFB 16 S
Product number:
05 161 090-V
Weight:
82 kg
Product information "Steerable trolley JLB 16 S "
Advantages of the transport trolley JLB 16 S
- Slim castor design (60 mm fitting length) results in easier steering due to reduced friction forces also in curves.
- Very low height at only 125 mm, with high capacity and less own weight.
- All transport trolleys are ready for use: the steerable transport trolley is fitted with a ball bearing supported turntable and a handlebar.
- Inspected according to technical regulation ANSI ⁄ ASME (USA)
| Castor dimensions (Ø x l mm): | 90 x 60 |
|---|---|

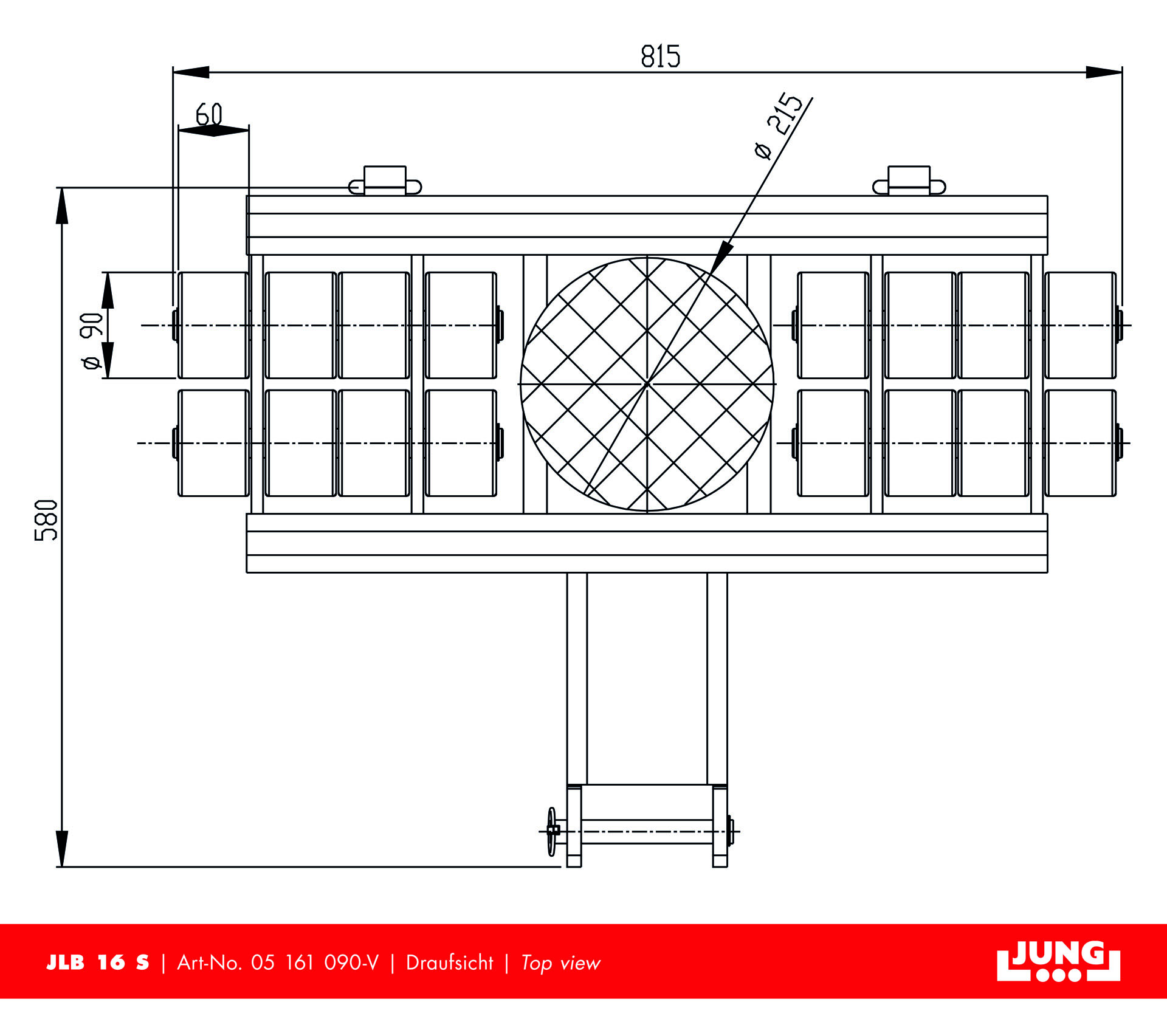

| Dimensions steerable (mm): | 580 x 815 |

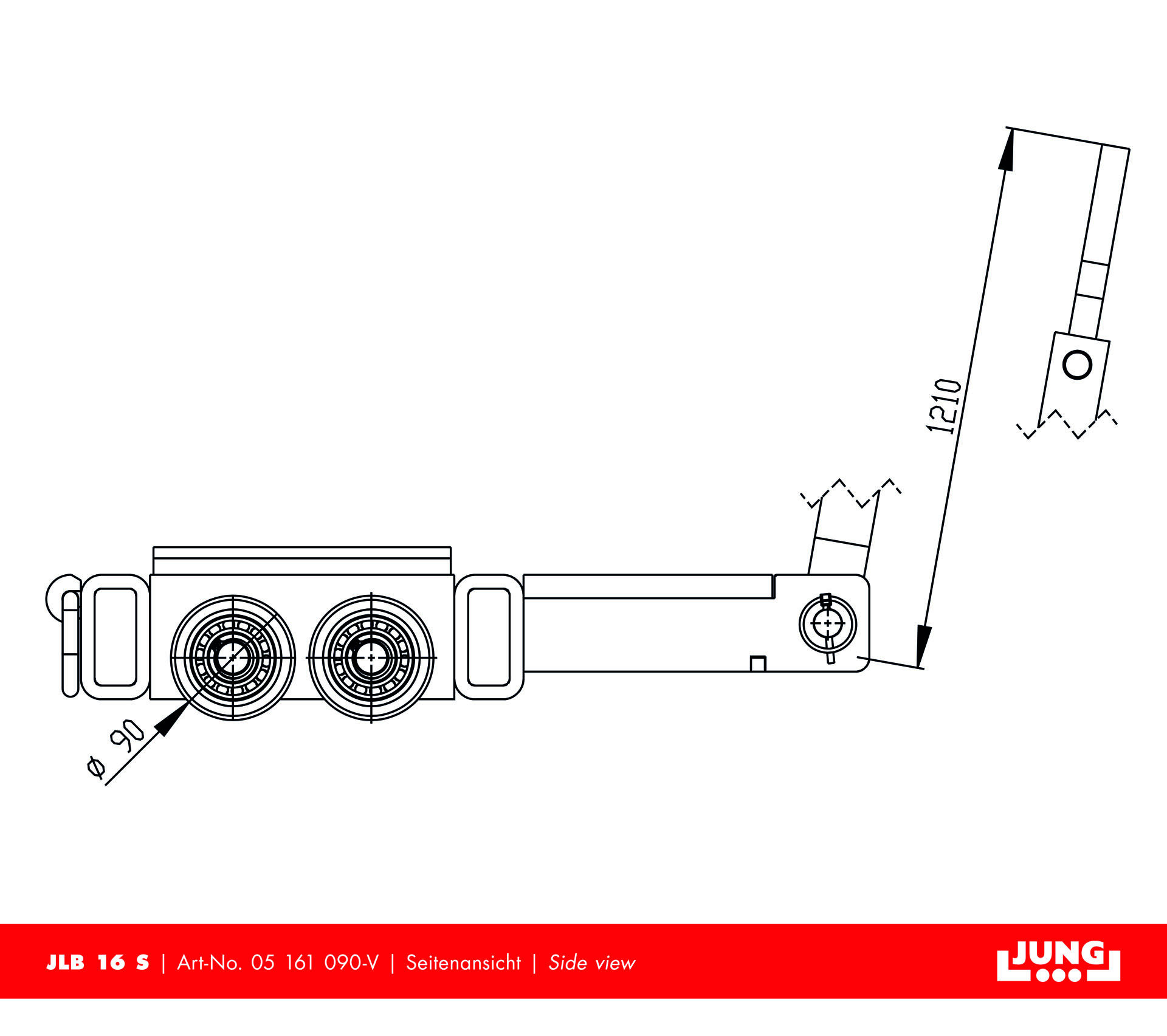

| Handlebar with pulling eye (mm): | 1 210 |

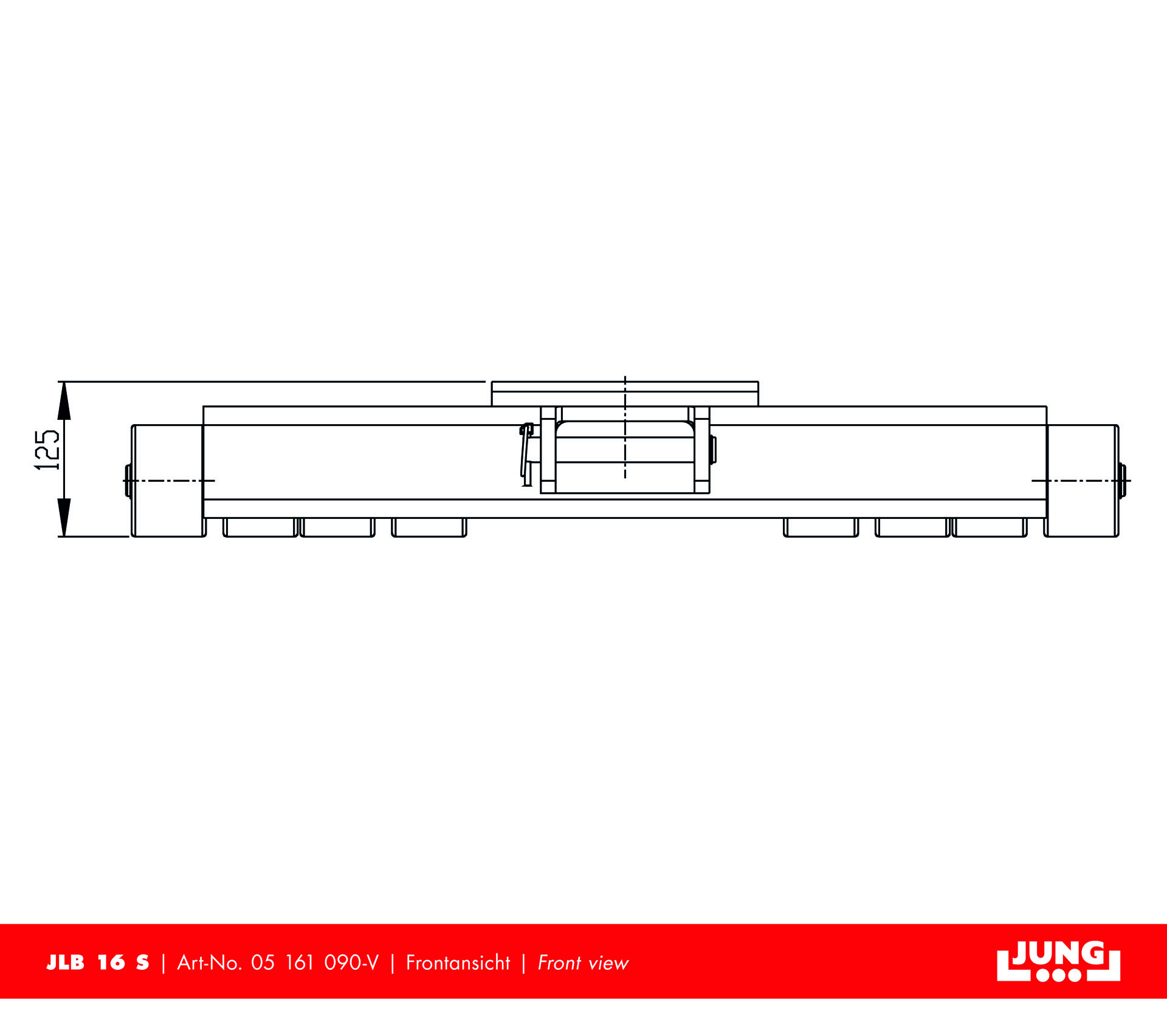

| Height (mm): | 125 |
| Load capacity (suitable): | 31 - 40 t |
| Load capacity (t): | 16 |
| Number of castors (Pieces): | 2 x 8 |
| Supporting surface of turnable Ø (mm): | 215 |
| Weight JUWAthan® (kg): | 74 |
