Steerable trolley JL 10 K Professional
High-performance transport trolley from JUNG. The JL 10 K professional steerable trolley transports loads up to 10 t with an installation height of 110 mm.
Load capacity: 10 t (im Set 20 t*)
Height: 110 mm
Transport trolley series K professional
*)Set consisting of JL 10 K + JFB 10 K
Height: 110 mm
Transport trolley series K professional
*)Set consisting of JL 10 K + JFB 10 K
Product number:
07 100 085-D
Weight:
56 kg
Product information "Steerable trolley JL 10 K Professional"
Advantages of the transport trolley JL 10 K Professional
- Galvanized axles and safety clip rings for improved protection against corrosion.
- The double roller design results in dramatically easier steering due to reduced friction forces in castors. The much lower friction resistance also causes the trolleys on the rear axis to follow in a truer course.
- You need 30 % less power for steering.
- Higher capacity with professional castors, at same dimension as series K trolleys.
- All transport trolleys are ready for use: the steerable transport trolley is fitted with a ball bearing supported turntable and a handlebar.
- The series K handlebars are now also available with a removable handle, which is also available as a re-fitting set.
- Non-marking support wheels.
- Inspected according to technical regulation ANSI ⁄ ASME (USA)
| Castor dimensions (Ø x l mm): | 85 x 85 |
|---|---|

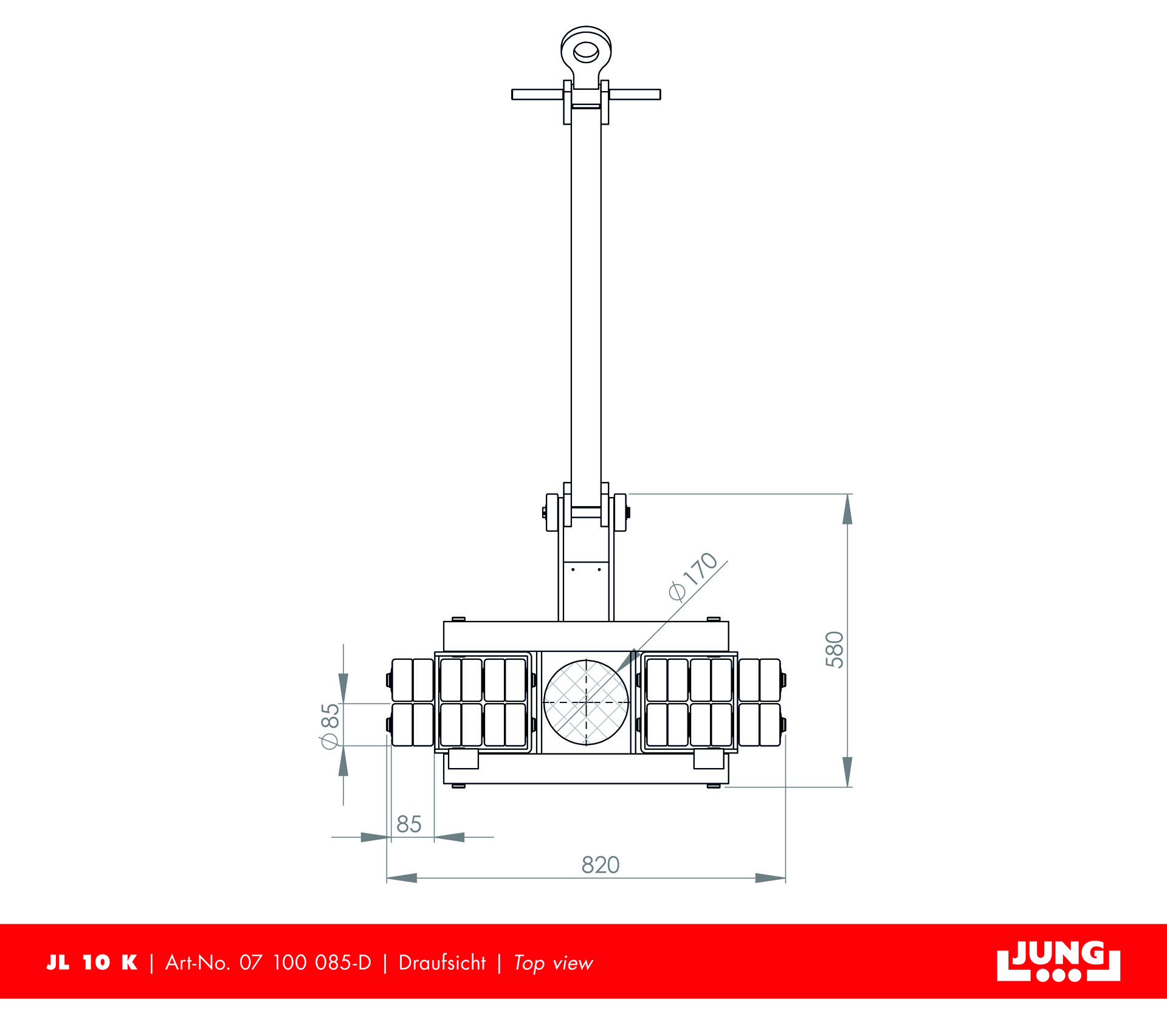

| Dimensions steerable (mm): | 580 x 820 |

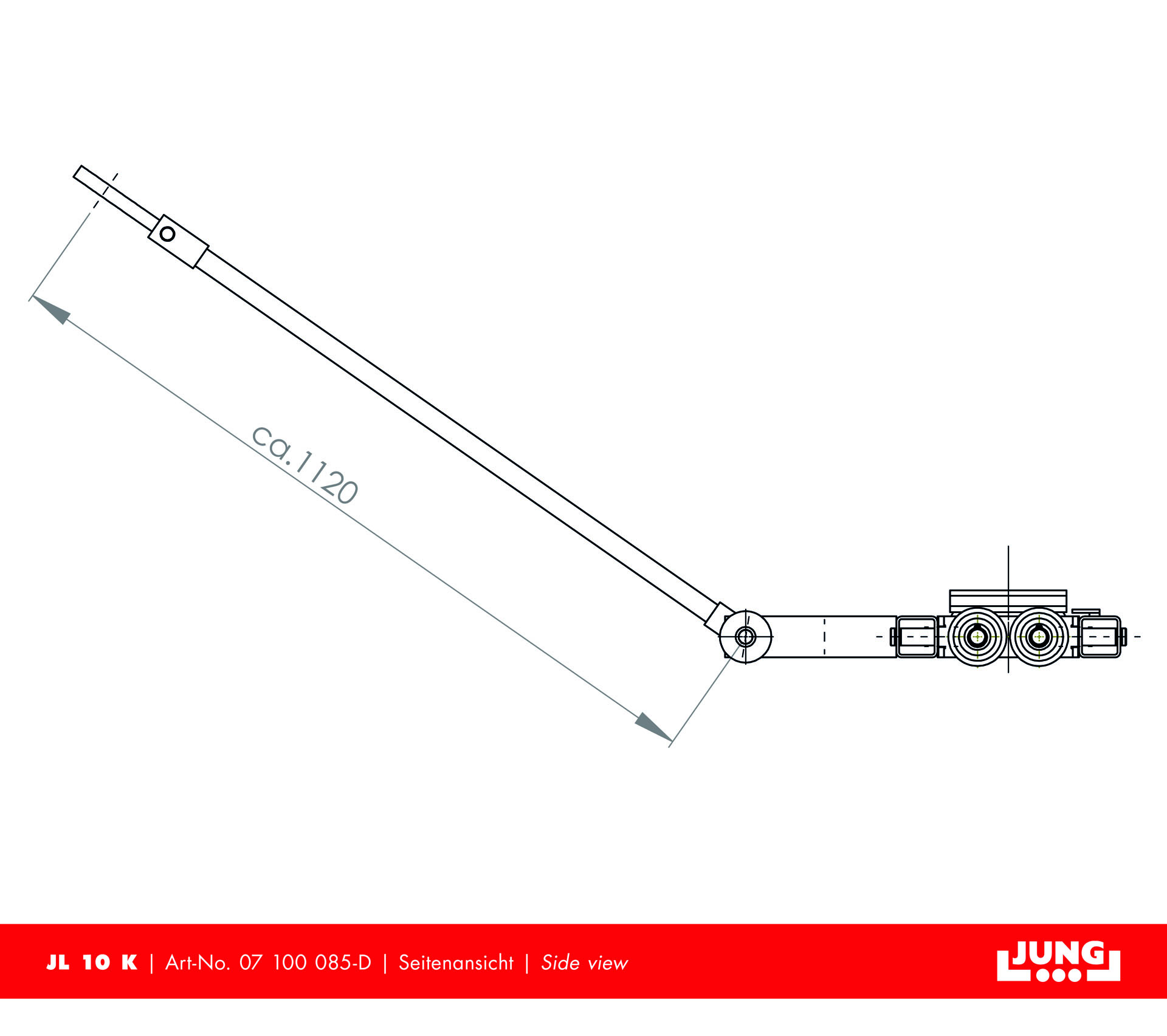

| Handlebar with pulling eye (mm): | 1 210 |

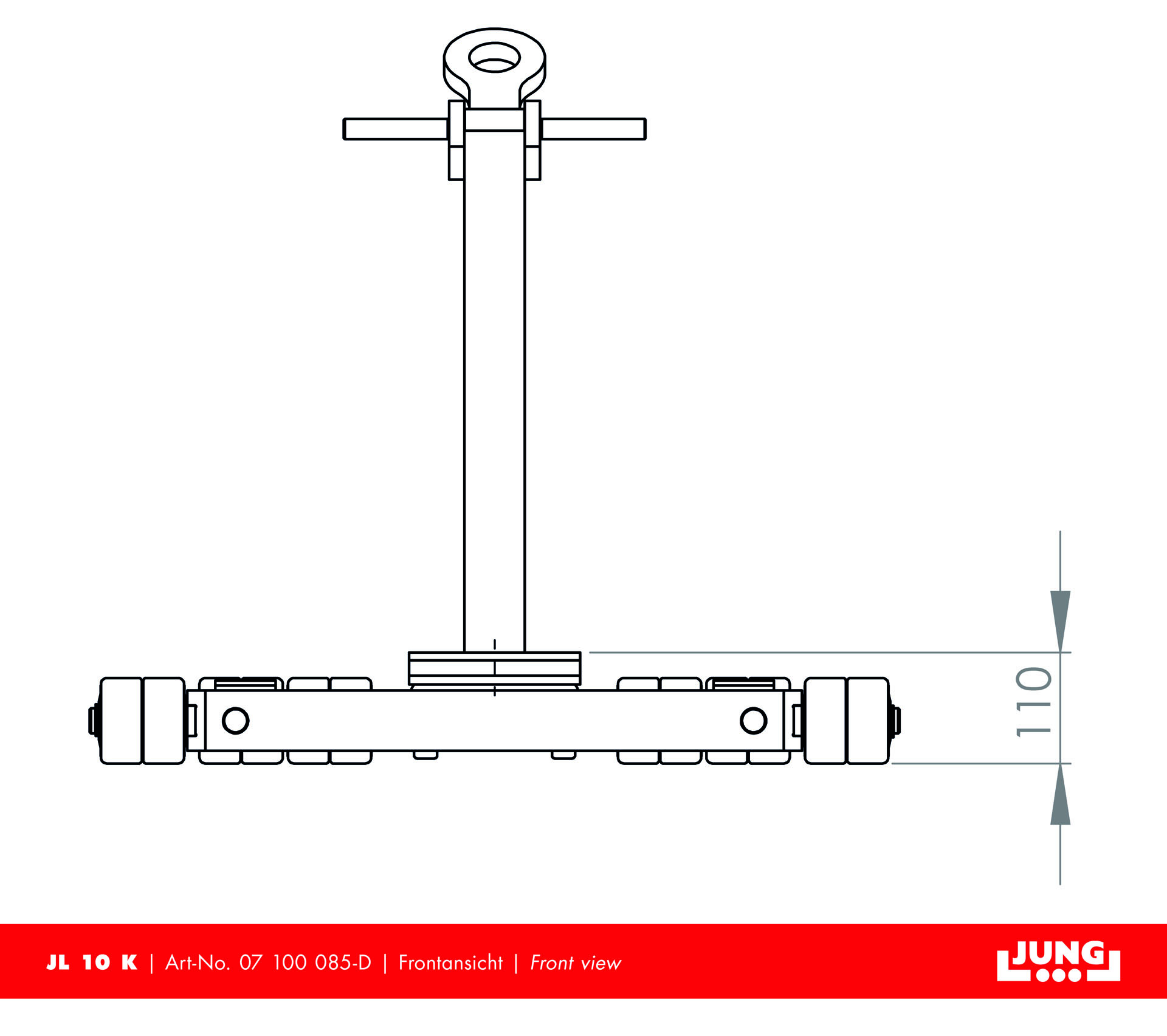

| Height (mm): | 110 |
| Load capacity (suitable): | 16 - 20 t |
| Load capacity (t): | 10 |
| Number of twin castors (pcs.): | 12 |
| Supporting surface of turnable Ø (mm): | 170 |
| Weight Professional (kg): | 56 |
