JUNG Hebe- und Transporttechnik GmbH

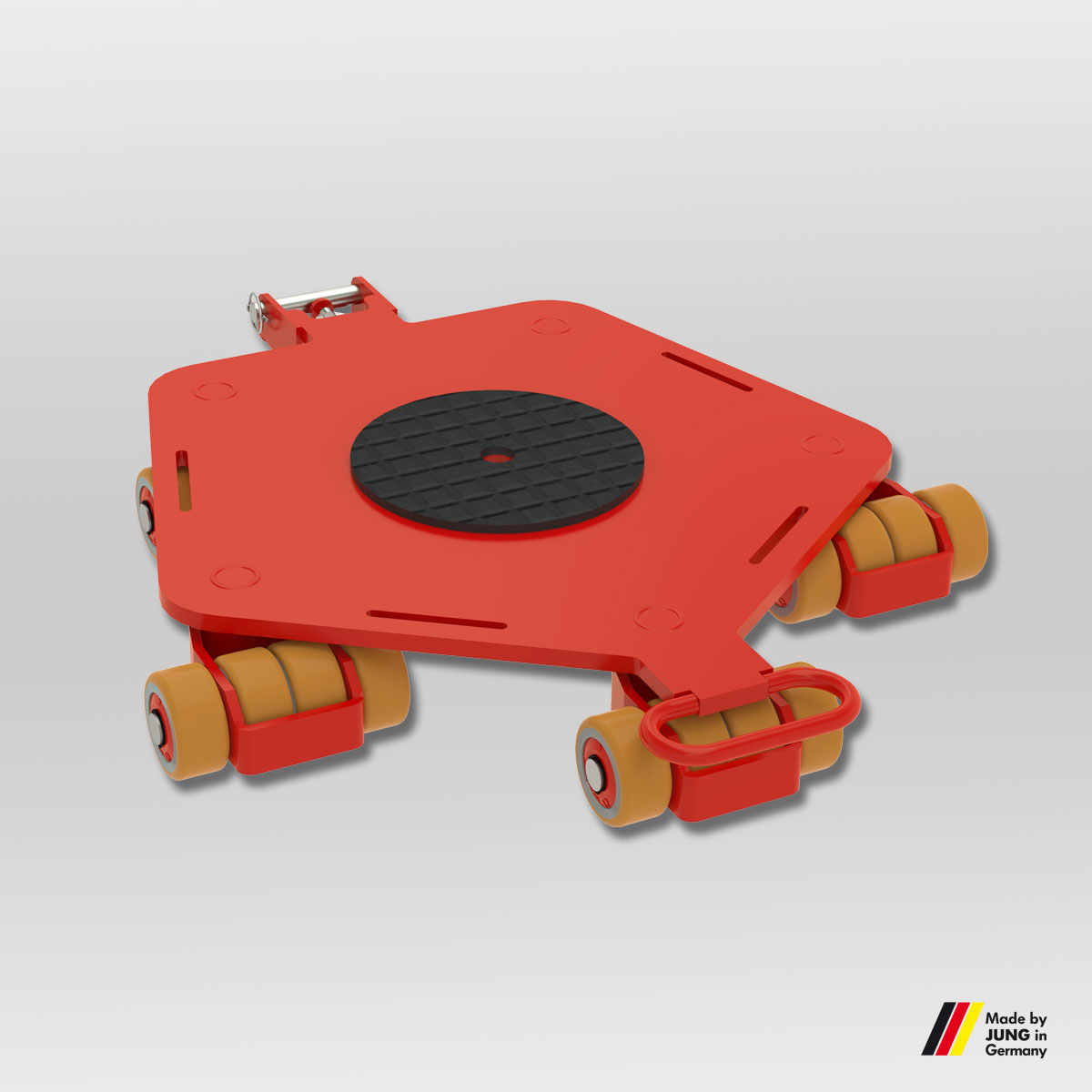

Revolving transport trolley JKB 8 K

Agile and powerful revolving transport trolley from JUNG. The JKB 8 K transport trolley transports loads up to 8 t with an installation height of 110 mm.

with JUWAmid castors
Load capacity: 8 t
Height: 110 mm

Price on request

Prices incl. VAT plus shipping costs

Available

Request an offer

PDF-Datasheet

Product number: 14 080 085-P

Weight: 64 kg

Product information "Revolving transport trolley JKB 8 K "

Advantages of the revolving transport trolley JKB 8 K with JUWAmid castors

Optional connecting bars can be fixed without tools by clamping down on adapter.
High load capacity at low weight.
Bearing supported swiveling castors allow 360° maneuverability.
Mix and match revolving trolleys with transport trolleys: With an installation height of only 110 mm*, the rotating transport trolley JKB 8 is compatible with all steering and transport undercarriages of the K series.
All products are also available in a set of two with price advantage.
Unrivalled: The double roller system reduces rolling and turning resistance to a minimum.
Using the slots in the platform, the trolleys JKB 8 K can be affixed to the load with standard tiedown belts.
In addition, all the rotational trolleys have a platform center hole to allow attachement to the load.
For choosing the adequate revolving trolley we recommend a load of two-third of the maximum capacity. This will be the most advantageous compromise between payload, ergonomics and handling of the devices.
Pulling handle and connecting bars available as accesories.
Inspected according to technical regulation ANSI ⁄ ASME (USA)

*) Due to technical changes, there may be tolerances of up to + 4.5 mm in the installation height since 2014.

Cassette dimensions (mm):	895 x 740
Castor dimensions (Ø x l mm):	85 x 43
Consist of:	1 x JKB 8 K
Height (mm):	110
Load capacity (suitable):	6 - 10 t
Load capacity (t):	8
Number of castors (Pieces):	20
Suppoting surface per cassette (mm):	250
Weight JUWAmid (kg):	64
