JUNG Hebe- und Transporttechnik GmbH

Revolving transport trolley JKB 14 G Set

Agile and powerful revolving transport trolley from JUNG. The JKB 14 G transport trolley set transports loads up to 28 t with an installation height of 180 mm.

with JUWAthan castors
Load capacity: 2 x 14 t
Height: 180 mm

Price on request

Prices incl. VAT plus shipping costs

Available

Request an offer

PDF-Datasheet

Product number: 14 140 140-DVu

Weight: 254 kg

Product information "Revolving transport trolley JKB 14 G Set "

Qualities of the revolving transport trolley set JKB 14 G with JUWAthan castors

High load capacity at low weight.
Bearing supported swiveling castors allow 360° maneuverability.
JKB 14 G has same hight as transport trolleys series G.
Optional connecting bars can be offered up to 3 m length.
Inspected according to technical regulation ANSI ⁄ ASME (USA)
Unrivalled: The narrow castors reduce rolling and turning resistance to a minimum.
In addition, all the rotational trolleys have a platform center hole to allow attachement tot he load.
For choosing the adequate revolving trolley we recommend a load of two-third of the maximum capacity. This will be the most advantageous compromise between payload, ergonomics and handling of the devices.
Pulling handle and connecting bars available as accesories.

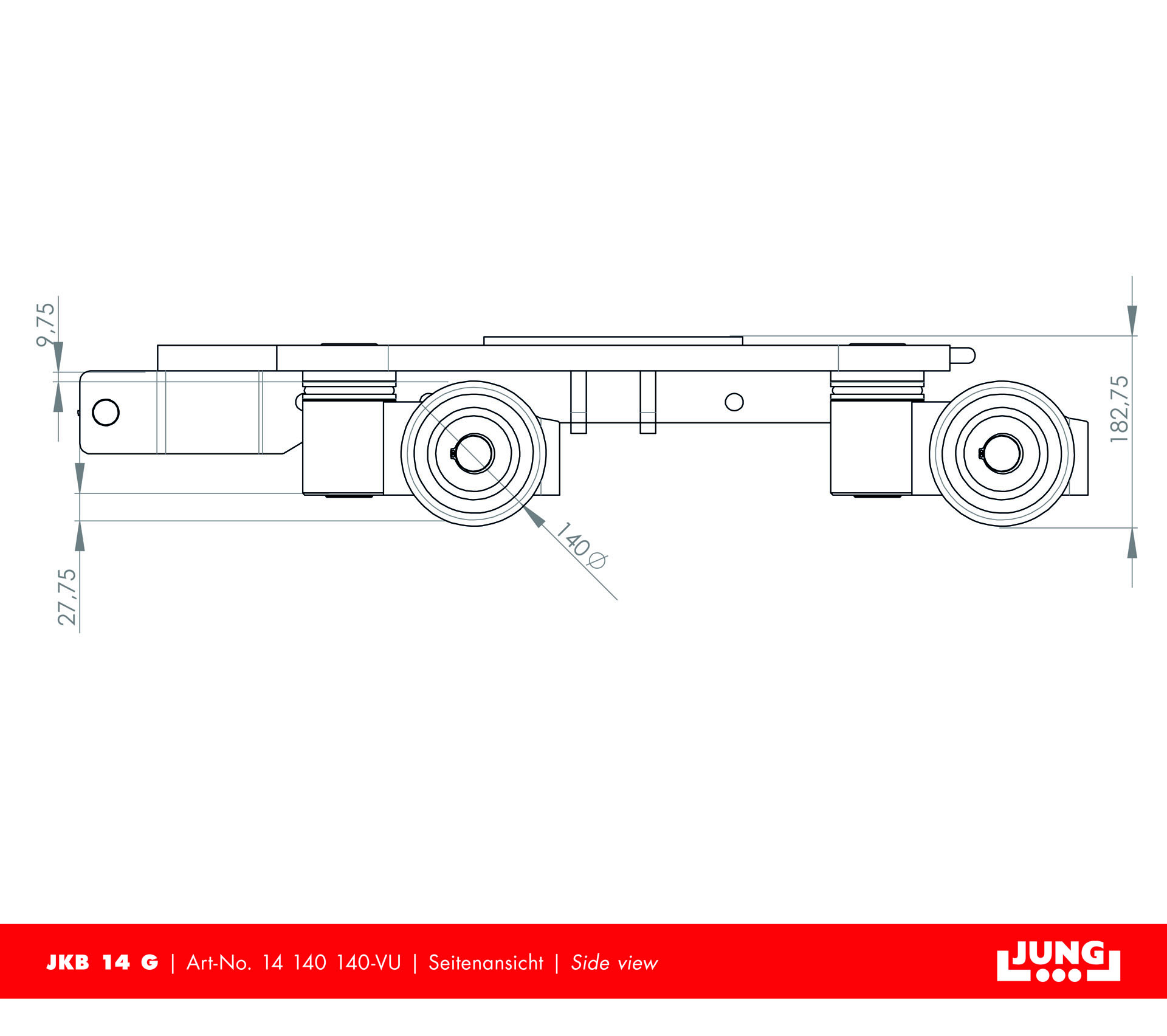

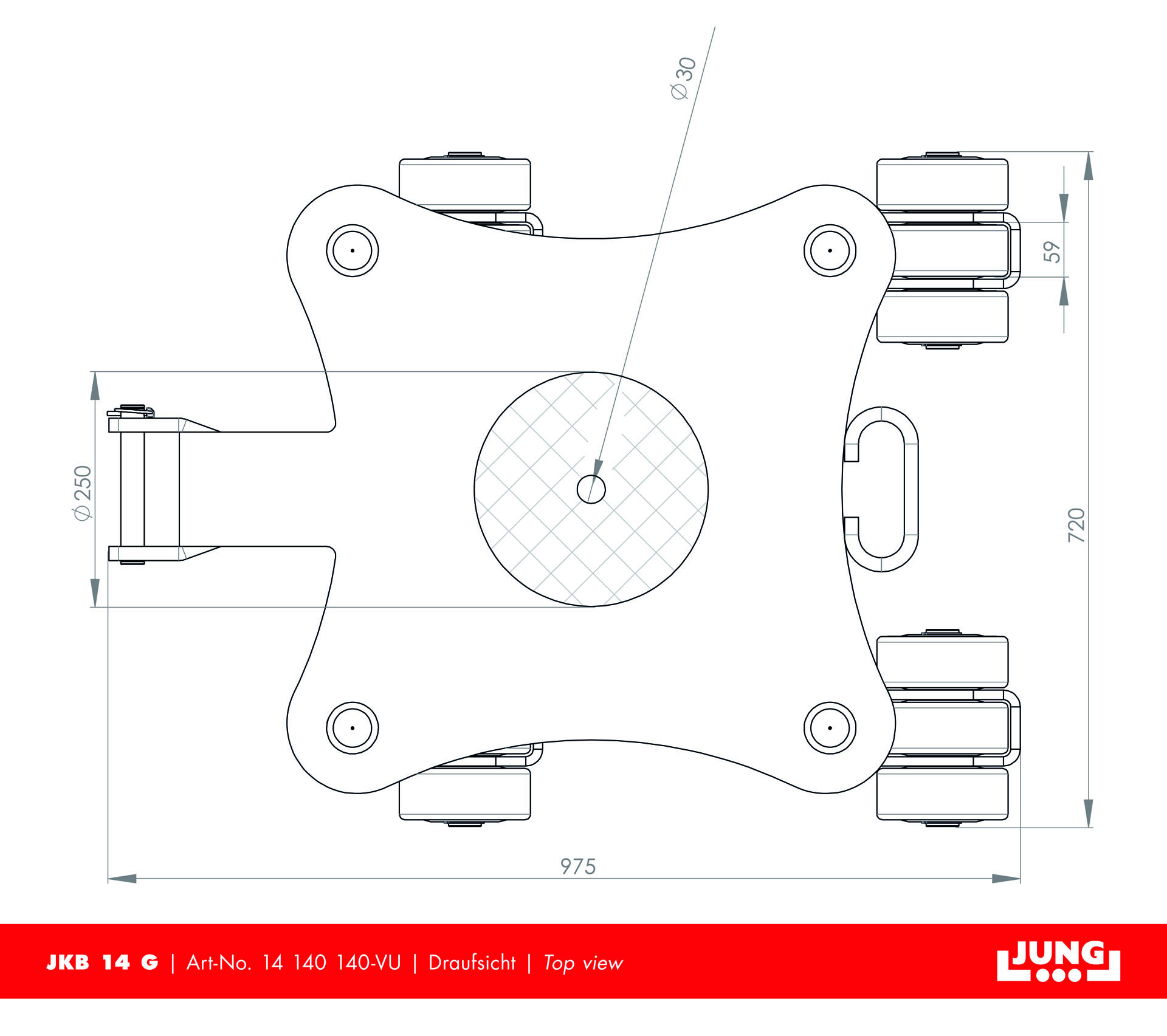

Cassette dimensions (mm):	975 x 720
Castor dimensions (Ø x l mm):	140 x 59
Consist of:	2 x JKB 14 G
Height (mm):	180
Load capacity (t):	28
Number of castors (Pieces):	2 x 12
Suppoting surface per cassette (mm):	250
Weight JUWAthan® (kg):	296
