JUNG Hebe- und Transporttechnik GmbH
Adjustable trolley JFB 6 K
High-performance transport trolley from JUNG. The JFB 6 K trolley transports loads up to 6 t with an installation height of 110 mm.
Load capacity: 2 x 3 t (in a set 12 t*)
Height: 110 mm
*) Set consisting of JLB 6 K + JFB 6 K
Height: 110 mm
*) Set consisting of JLB 6 K + JFB 6 K
Product number:
08 061 085-V
Weight:
25 kg
Product information "Adjustable trolley JFB 6 K"
Advantages of the transport trolley JFB 6 K
- Equipped with highest quality castors as standard.
- Reduced weight due to advanced construction of load cassettes.
- All transport trolleys are ready for use: The adjustable-width transport trolley consists of two transport units and connecting bar.
- Inspected according to technical regulation ANSI ⁄ ASME (USA)

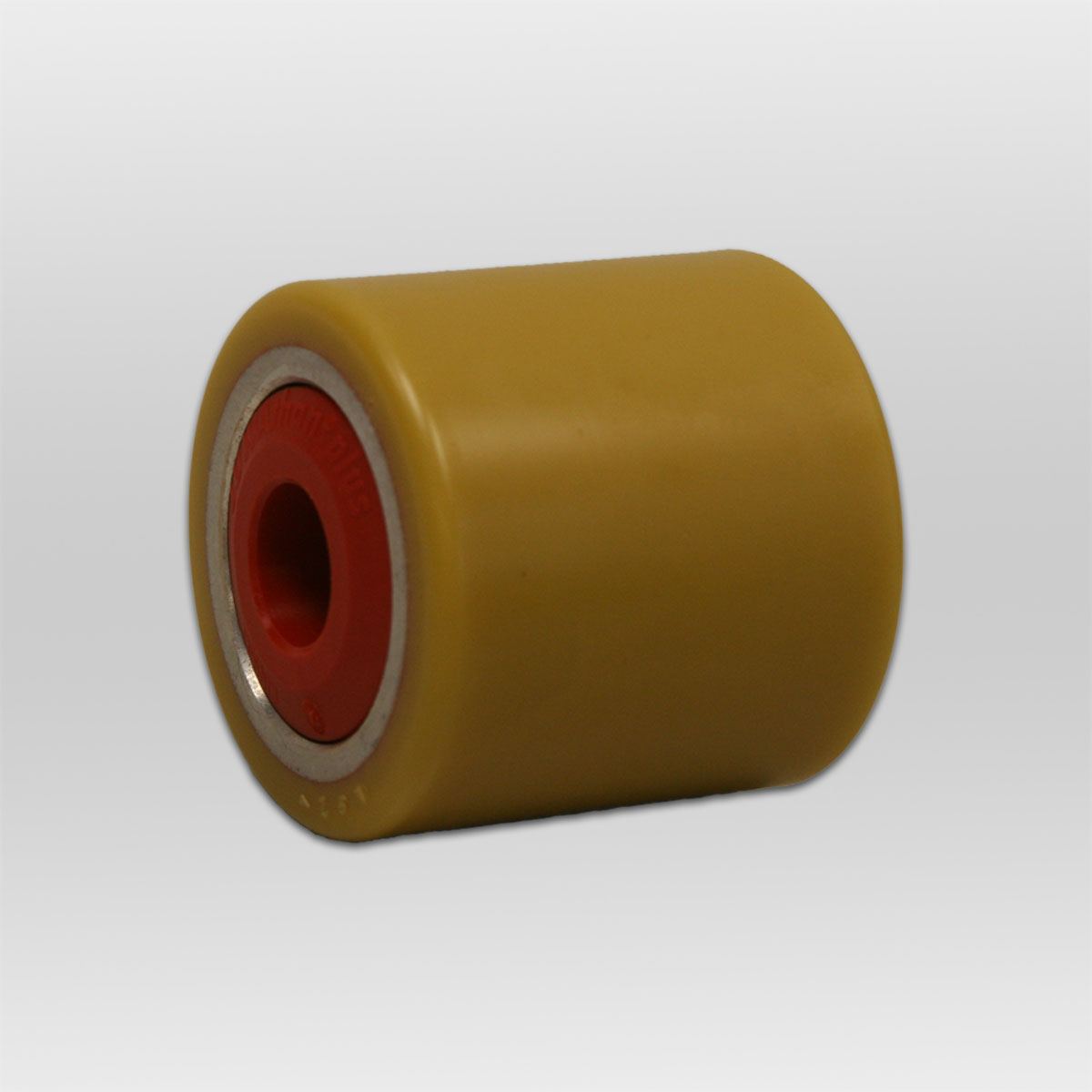

The transport trolleys have a low installation height of 110 mm, making them suitable for almost any load. They are equipped with ball bearing supported rollers that enable effortless maneuvering and positioning. These rollers come with a wear-resistant coating called "JUWAthan plus" coating, which ensures a smooth and quiet operation. The transport trolleys are available with an optional handle or towing eye.

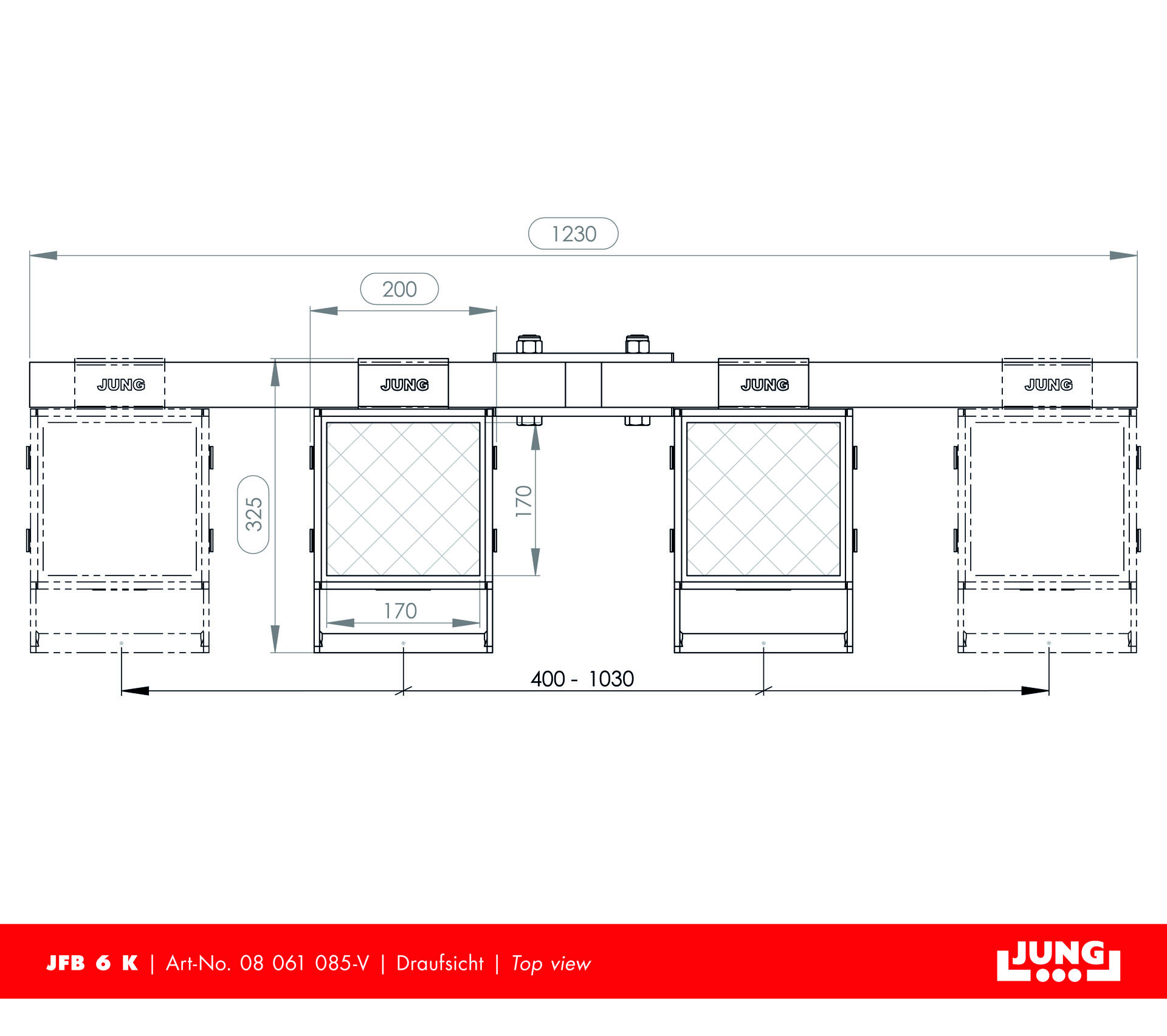

| Cassette dimensions (mm): | 325 x 200 |
|---|---|
| Cassettes adjustable from - to (mm): | 400 - 1 030 |

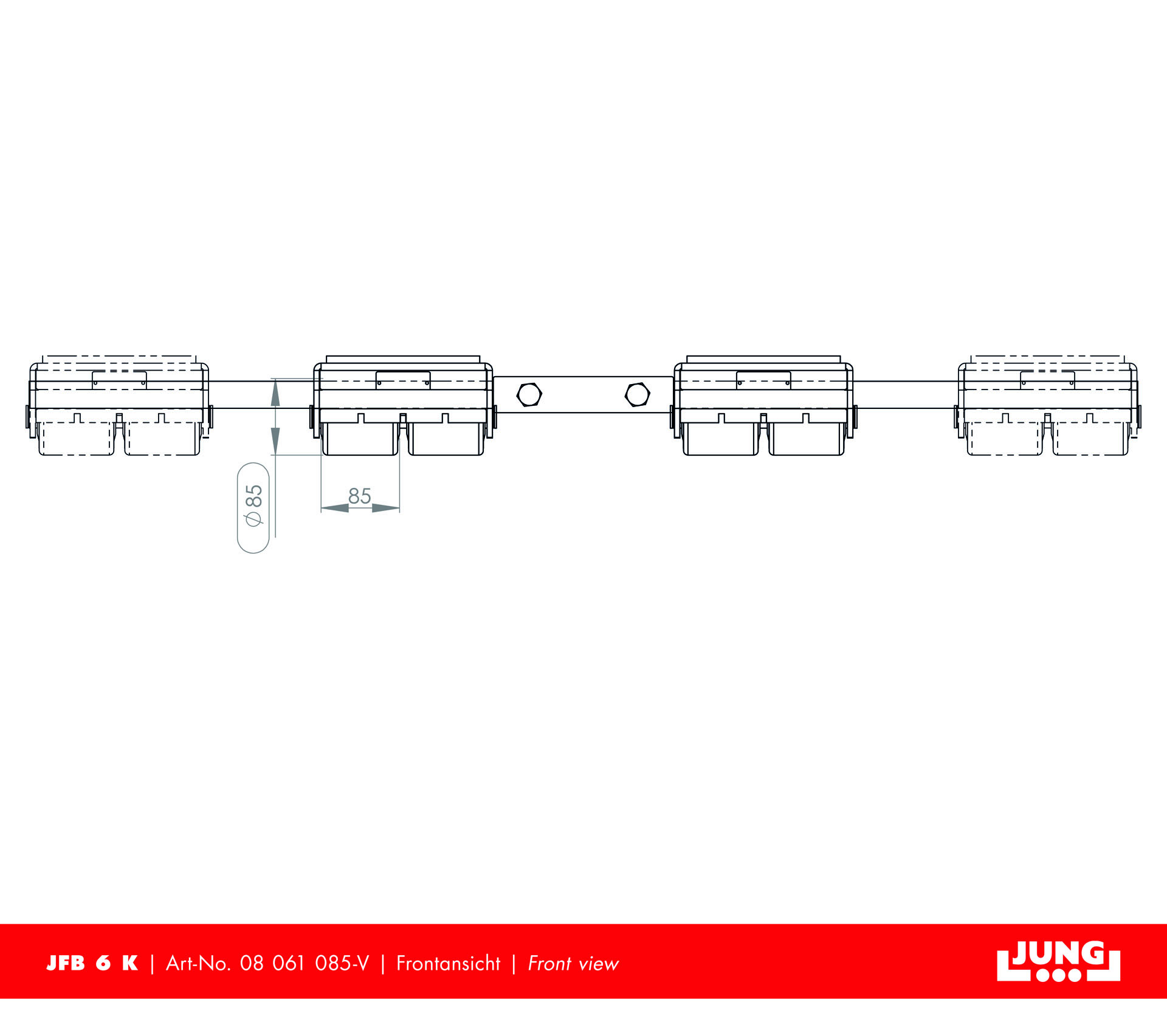

| Castor dimensions (Ø x l mm): | 85 x 85 |
| Connecting bar with joint (mm): | 1 230 |
| Height (mm): | 110 |
| Load capacity (suitable): | 11 - 15 t |
| Load capacity (t): | 6 |
| Number of castors (Pieces): | 2 x 4 |
| Suppoting surface per cassette (mm): | 170 x 170 |
| Weight JUWAthan®plus (kg): | 25 |
Additional Products
Steerable trolley JLB 6 K
07 061 085-V
Load capacity: 6 t (in a set 12t*)
Height: 110 mm
Height: 110 mm
*)Set consisting of JLB 6 K + JFB 6 K
Price on request
