Adjustable trolley JFB 24 S with JUWAthan

High-performance transport trolley from JUNG. The JFB 24 S trolley transports loads up to 24 t with an installation height of 125 mm.

with JUWAthan castors
Load capacity: 2 x 12 t (in a set 48 t*)
Height: 125 mm

*)Set consisting of JLB 24 S + JFB 24 S

Price on request

Available

Request an offer

PDF-Datasheet

Product number: 06 242 090-V

Weight: 80 kg

Advantages of the transport trolley JFB 24 S

Pivoting cassettes and axles within the frame (except for JLB 16 S) assure even pressure distribution across all castors and across the floor.
Slim castor design (60 mm fitting length) results in easier steering due to reduced friction forces also in curves.
Very low height at only 125 mm, with high capacity and less own weight.
All transport trolleys are ready for use: The adjustable-width transport trolley consists of two transport units and connecting bars.
The transport trolleys have an installation height of only 125 mm, allowing them to fit under almost any load. The drawbar with a tow eye makes maneuvering and positioning easier. JUNG uses ball-bearing rollers for its transport trolleys, ensuring smooth and quiet operation. The rollers come equipped with a wear-resistant JUWAthan coating as standard.

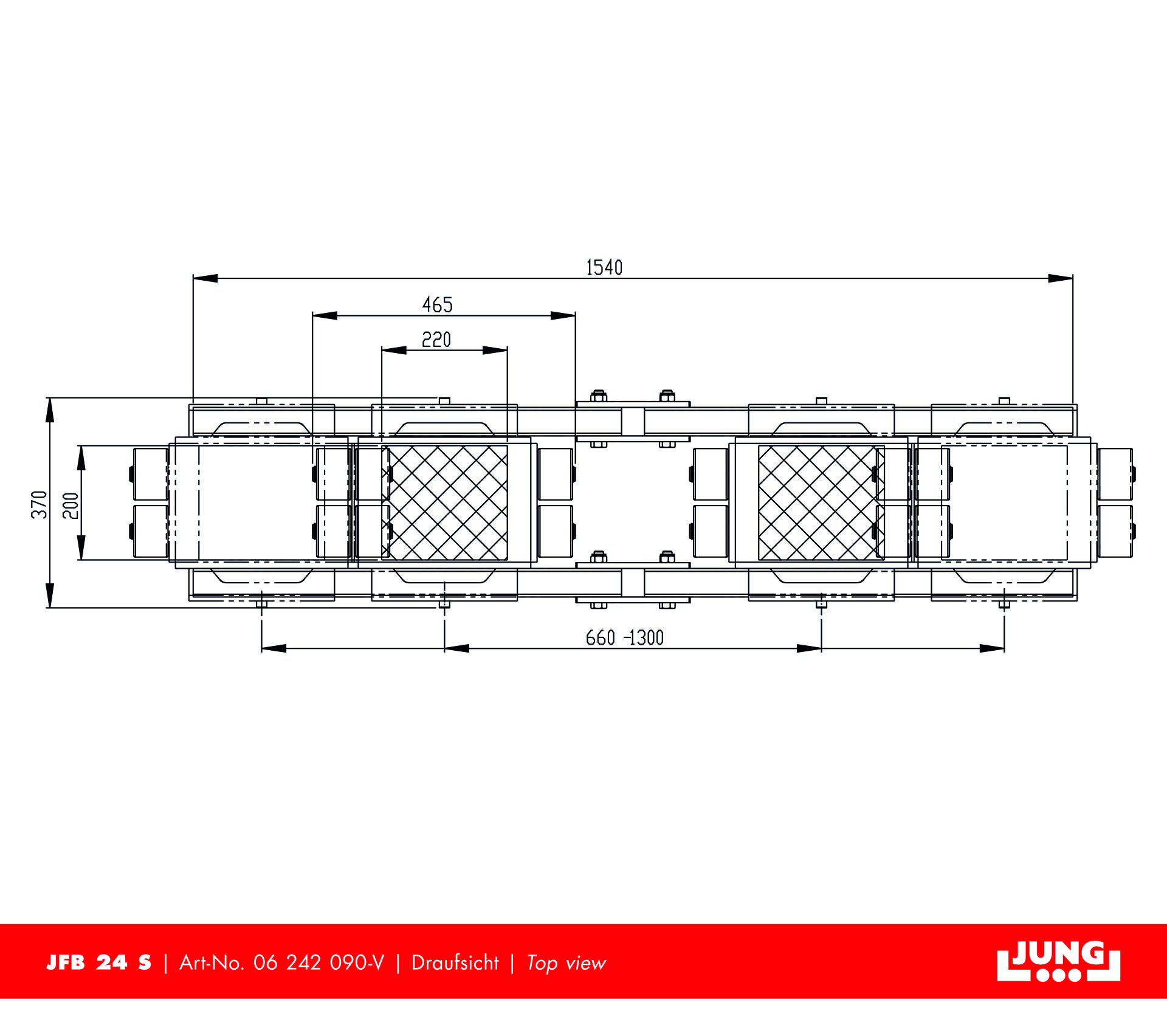

Cassette dimensions (mm):	370 x 465
Cassettes adjustable from - to (mm):	660 - 1 300

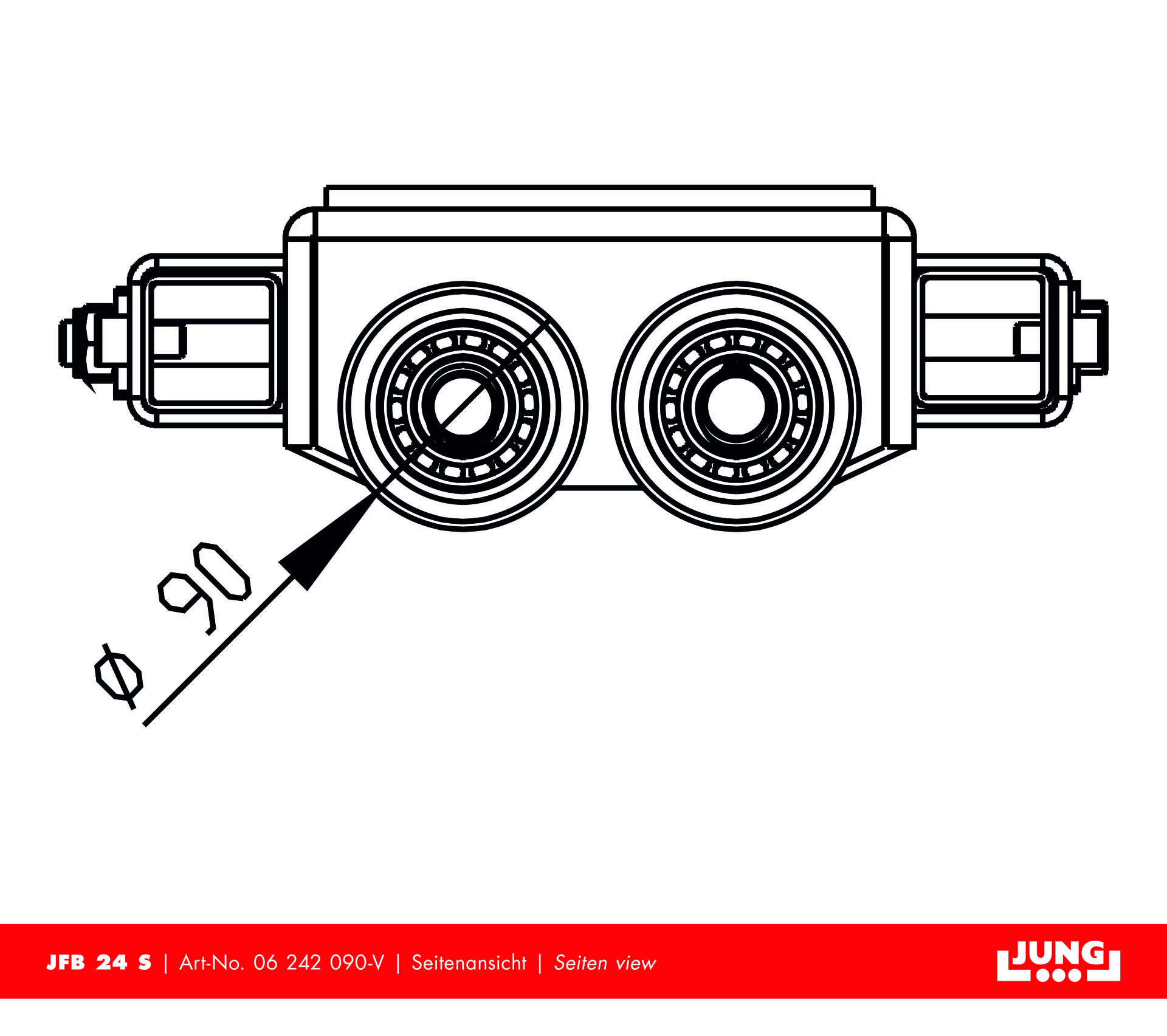

Castor dimensions (Ø x l mm):	90 x 60
Connecting bar with joint (mm):	2 x 1 540

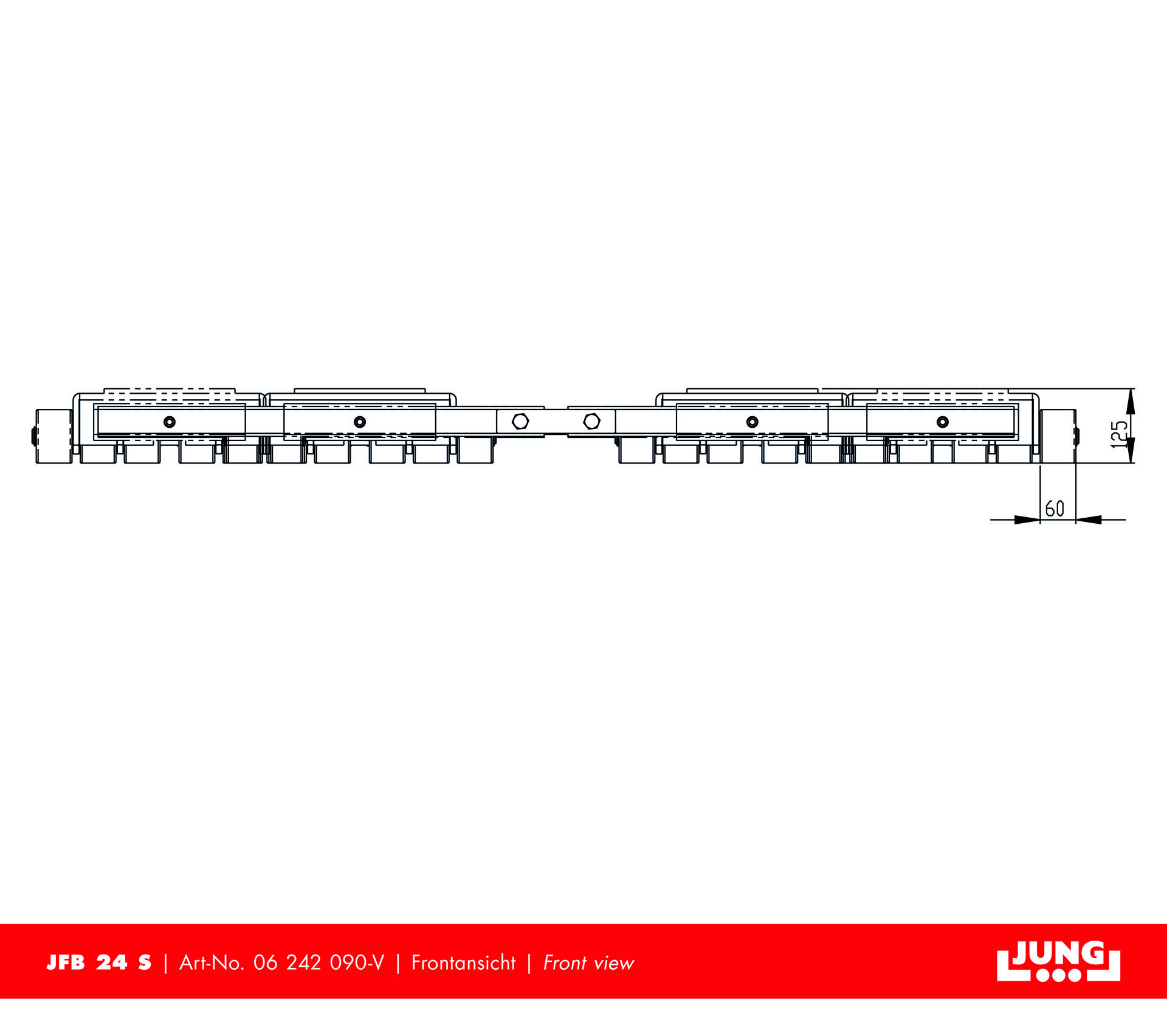

Height (mm):	125
Load capacity (suitable):	41 - 80 t
Load capacity (t):	24
Number of castors (Pieces):	24
Suppoting surface per cassette (mm):	200 x 220
Weight JUWAthan® (kg):	80
