Adjustable trolley JFB 16 S

High-performance transport trolley from JUNG. The JFB 16 S trolley transports loads up to 16 t with an installation height of 125 mm.

with JUWAthan castors
Load capacity: 2 x 8 t (in a set 32 t*)
Height: 125 mm

*)Set consisting of JLB 16 S + JFB 16 S

Price on request

Available

Request an offer

PDF-Datasheet

Product number: 06 161 090-V

Weight: 74 kg

Advantages of the transport trolley JFB 16 S

Pivoting cassettes and axles within the frame (except for JLB 16 S) assure even pressure distribution across all castors and across the floor.
Slim castor design (60 mm fitting length) results in easier steering due to reduced friction forces also in curves.
Very low height at only 125 mm, with high capacity and less own weight.
All transport trolleys are ready for use: The adjustable-width transport trolley consists of two transport units and connecting bars.
Inspected according to technical regulation ANSI ⁄ ASME (USA)
The transport trolleys have a installation height of only 125 mm, allowing them to fit under almost any load. The drawbar with tow eye makes maneuvering and positioning easier. JUNG uses ball-bearing rollers for its transport trolleys, which ensure smooth and quiet operation. The rollers are equipped with a wear-resistant JUWAthan coating as standard.

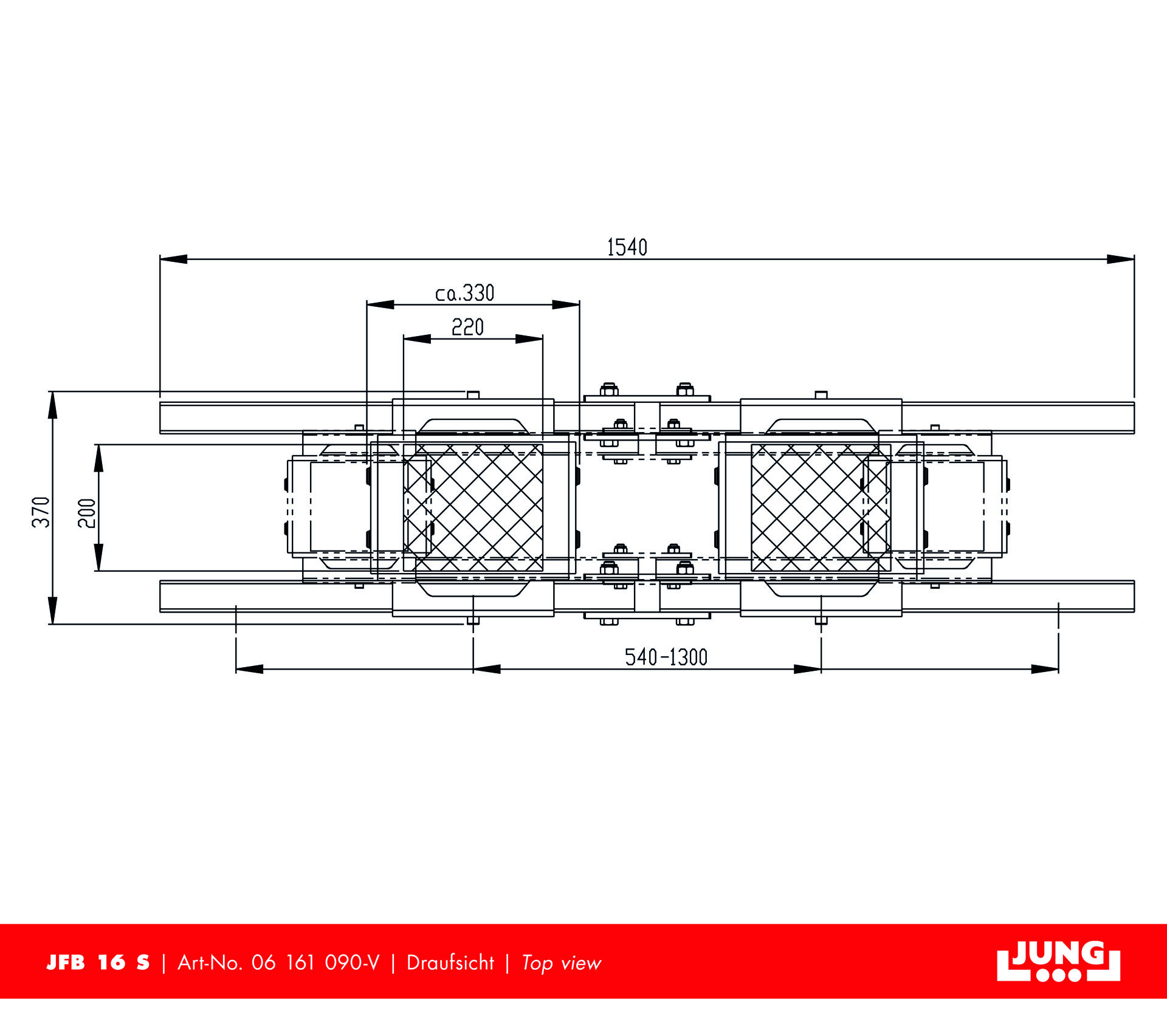

Cassette dimensions (mm):	370 x 330
Cassettes adjustable from - to (mm):	540 - 1 300

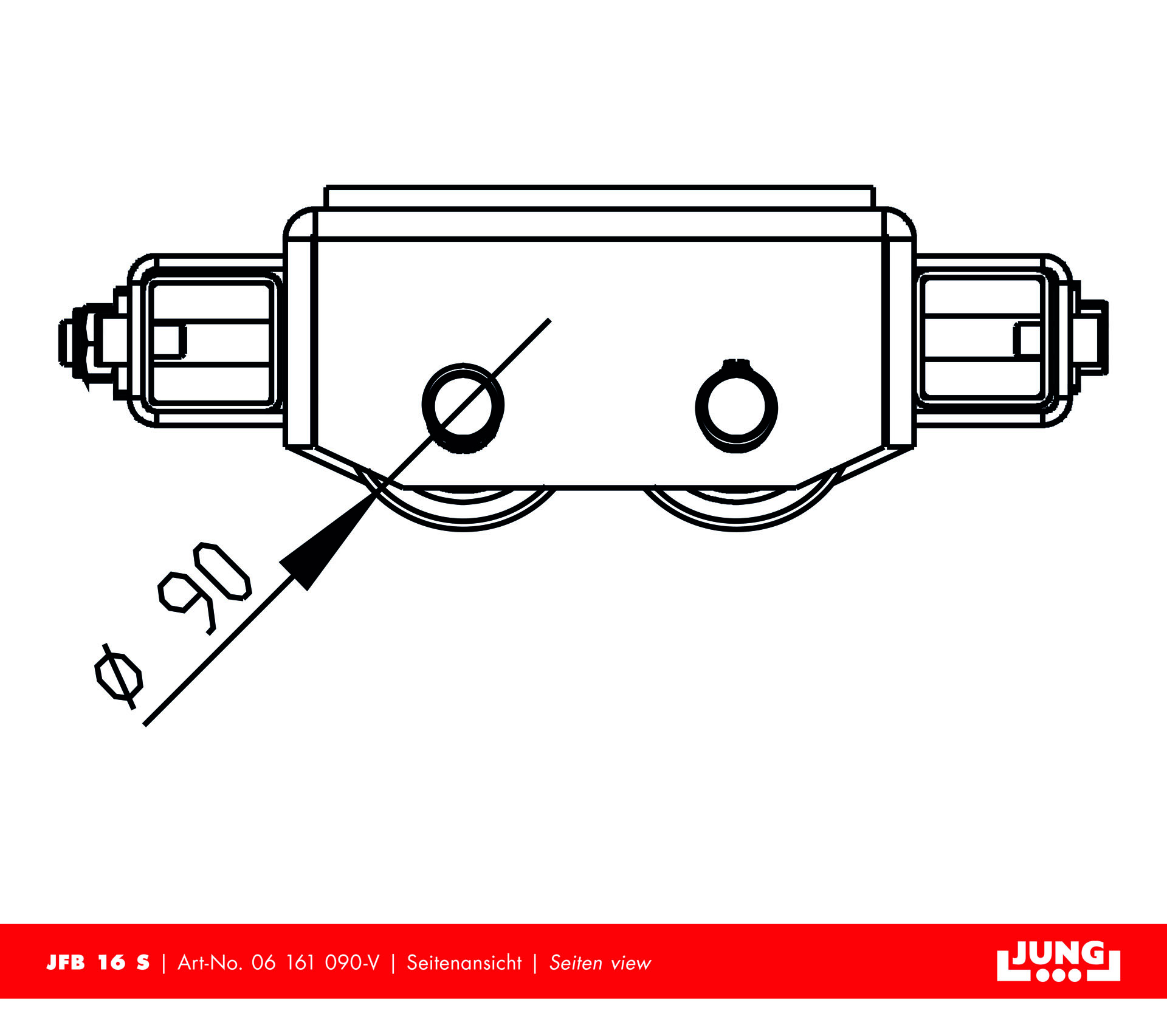

Castor dimensions (Ø x l mm):	90 x 60
Connecting bar with joint (mm):	2 x 1 540

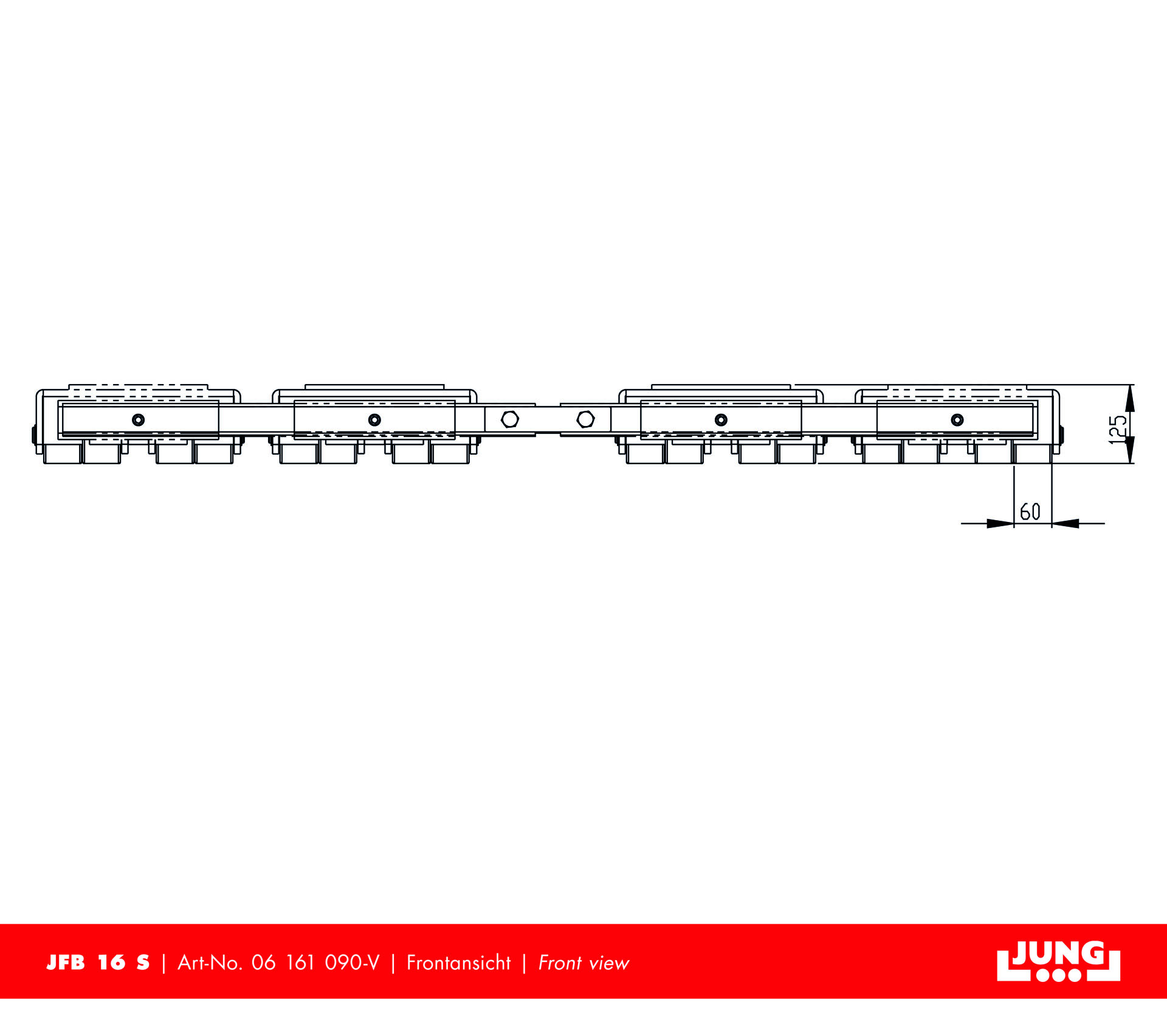

Height (mm):	125
Load capacity (suitable):	31 - 40 t
Load capacity (t):	16
Suppoting surface per cassette (mm):	200 x 220
