JUNG Hebe- und Transporttechnik GmbH

Adjustable trolley JFB 14 K Professional

High-performance transport trolley from JUNG. The JFB 14 K professional trolley transports loads up to 14 t with an installation height of 110 mm.

Load capacity: 2 x 7 t (in a set 28 t*)
Height: 110 mm

Transport trolley series K professional

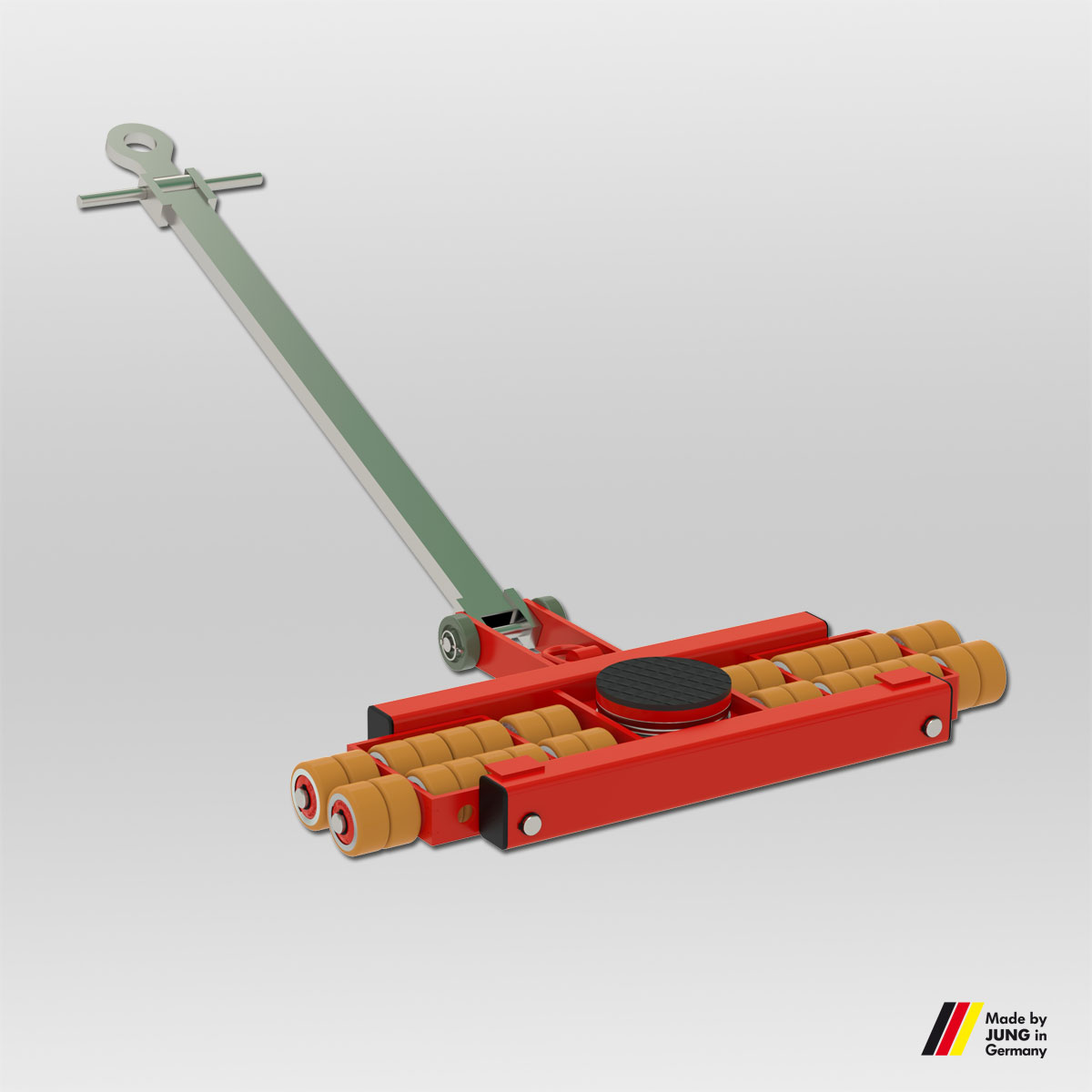

*)Set consisting of JL 14 K + JFB 14 K

Price on request

Available

Request an offer

PDF-Datasheet

Product number: 08 141 085-D

Weight: 38 kg

Advantages of the transport trolley JFB 14 K

The double roller design results in dramatically easier steering due to reduced friction forces in castors. The much lower friction resistance also causes the trolleys on the rear axis to follow in a truer course.
You need 30 % less power for steering.
Higher capacity with professional castors, at same dimension as series K trolleys.
The adjustable-width transport trolley consists of two transport units and connecting bar.
Inspected according to technical regulation ANSI ⁄ ASME (USA)

Cassette dimensions (mm):	325 x 390
Cassettes adjustable from - to (mm):	400 - 1 030
Castor dimensions (Ø x l mm):	85 x 85
Connecting bar with joint (mm):	1 230
Height (mm):	110
Load capacity (suitable):	26 - 30 t
Load capacity (t):	14
Number of twin castors (pcs.):	2 x 8
Suppoting surface per cassette (mm):	170 x 170
Weight Professional (kg):	39
