JUNG Hebe- und Transporttechnik GmbH

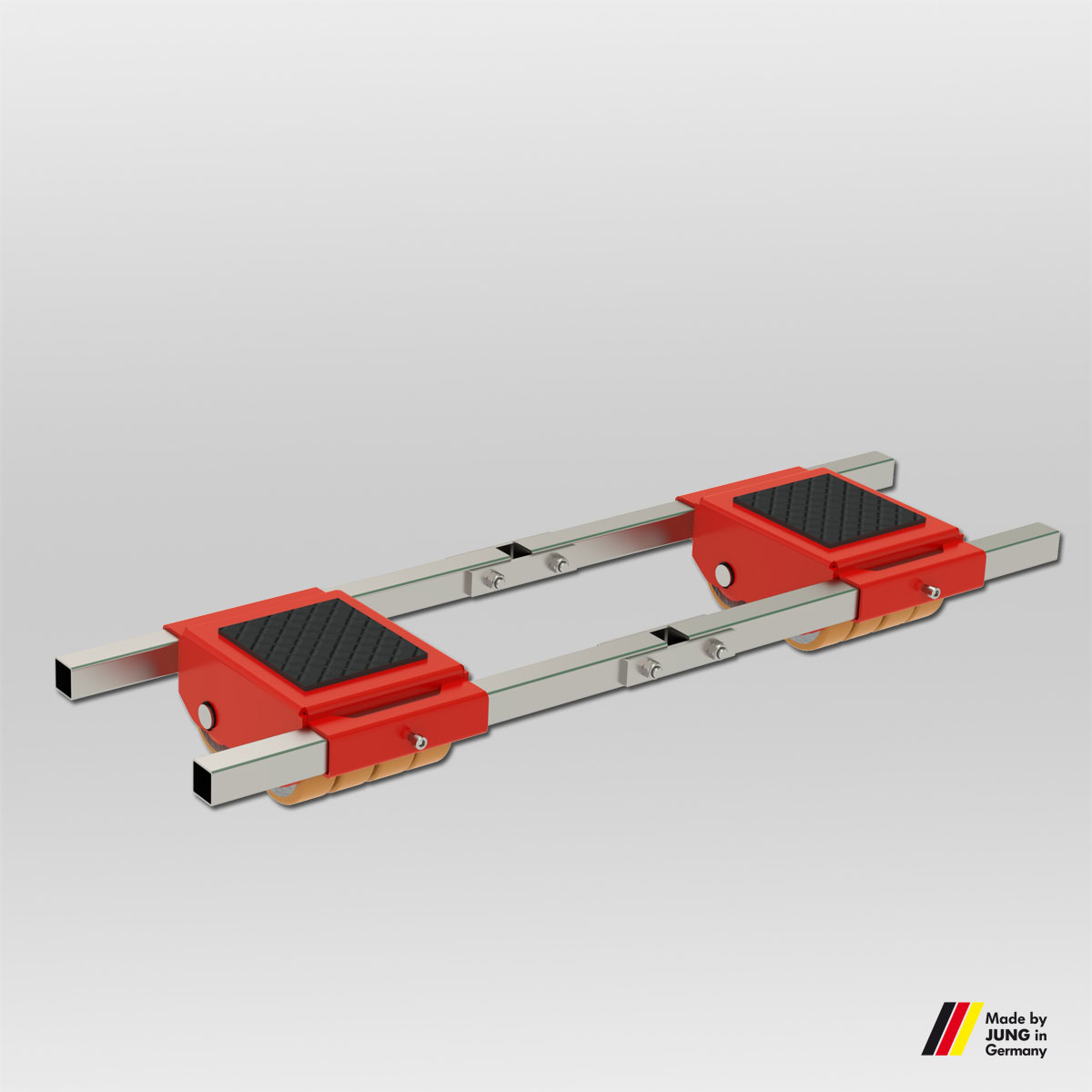

Adjustable trolley JFB 20 G
High-performance transport trolley from JUNG. The JFB 20 G transport unit transports loads up to 20 t with an installation height of 180 mm.
Load capacity: 2 x 10 t (in a set 40 t*)
Height: 180 mm
*) Set consisting of JLB 20 G + JFB 20 G
Height: 180 mm
*) Set consisting of JLB 20 G + JFB 20 G
Product number:
10 203 140-V
Weight:
88 kg
Product information "Adjustable trolley JFB 20 G"
Advantages of the transport trolley JFB 20 G
- The pivoting cassettes and axles within the frame assure even pressure distribution across all castors and across the floor. No need for complex and expensive hydraulic compensation system.
- The double castor design results in dramatically easier steering and also causes the trolleys on the rear axis to follow in a truer course.
- All transport trolleys are ready for use.
- The adjustable-width transport trolley consists of two transport units and connecting bar.

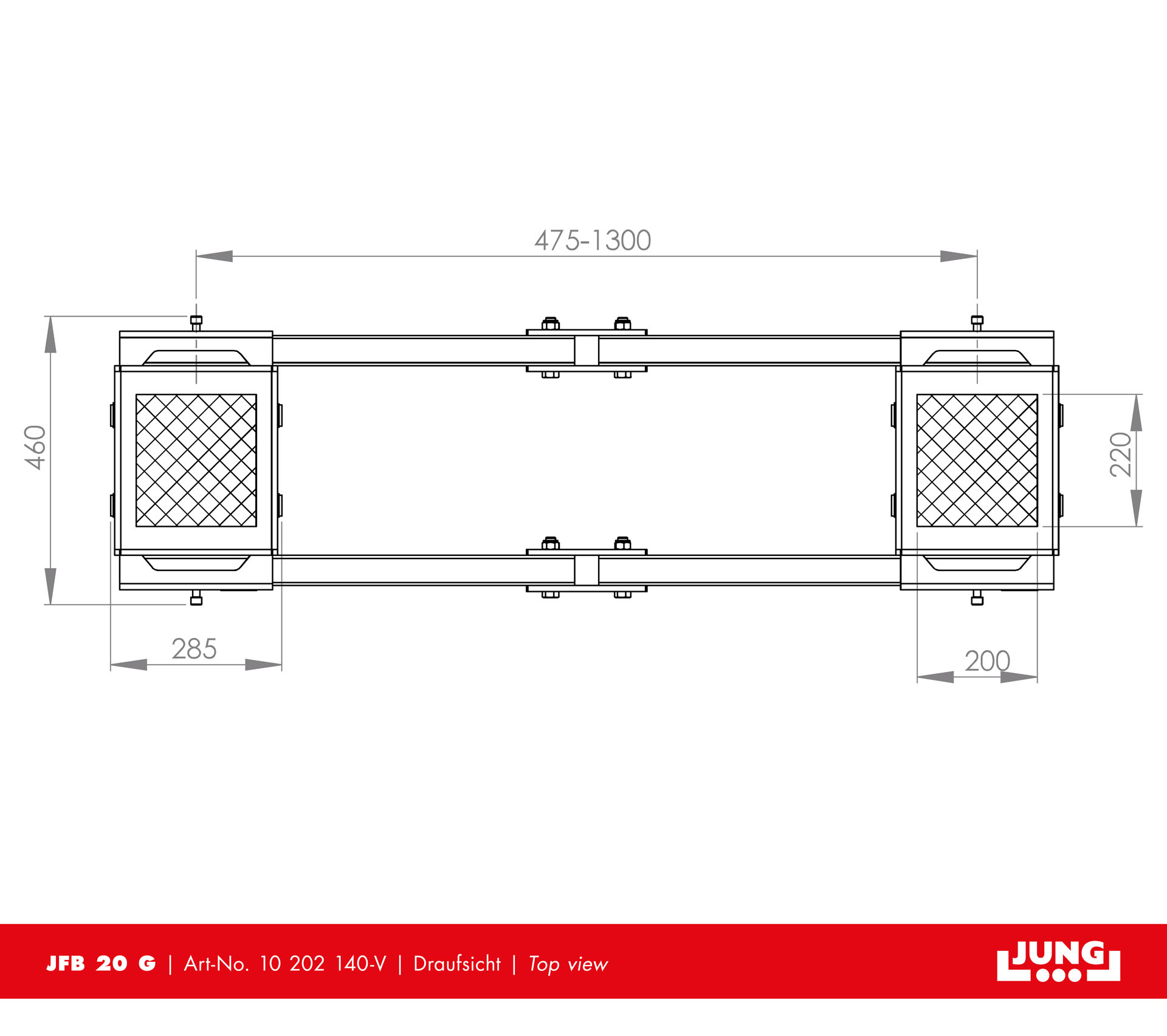

| Cassette dimensions (mm): | 460 x 285 |
|---|---|
| Cassettes adjustable from - to (mm): | 475 - 1 300 |

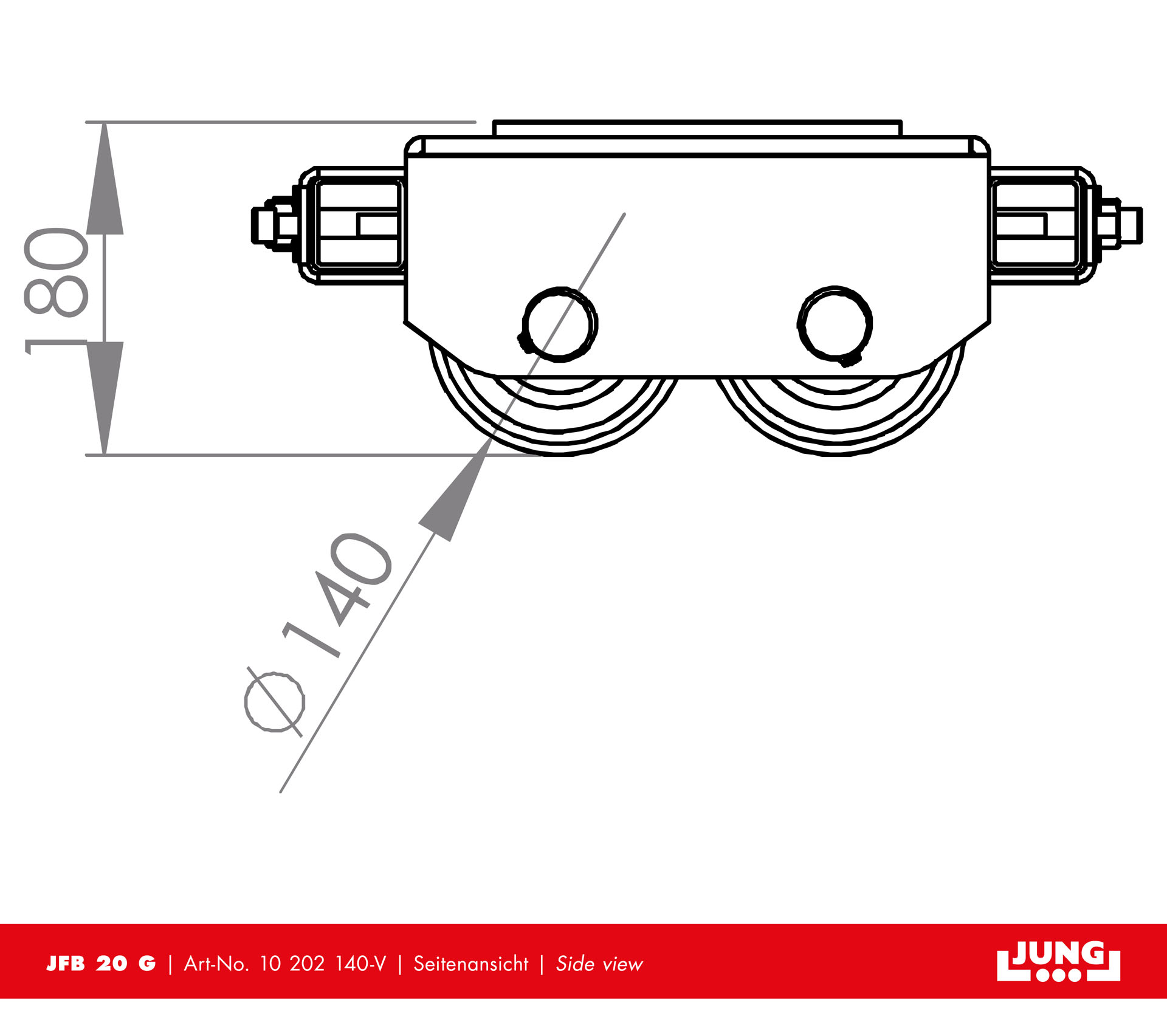

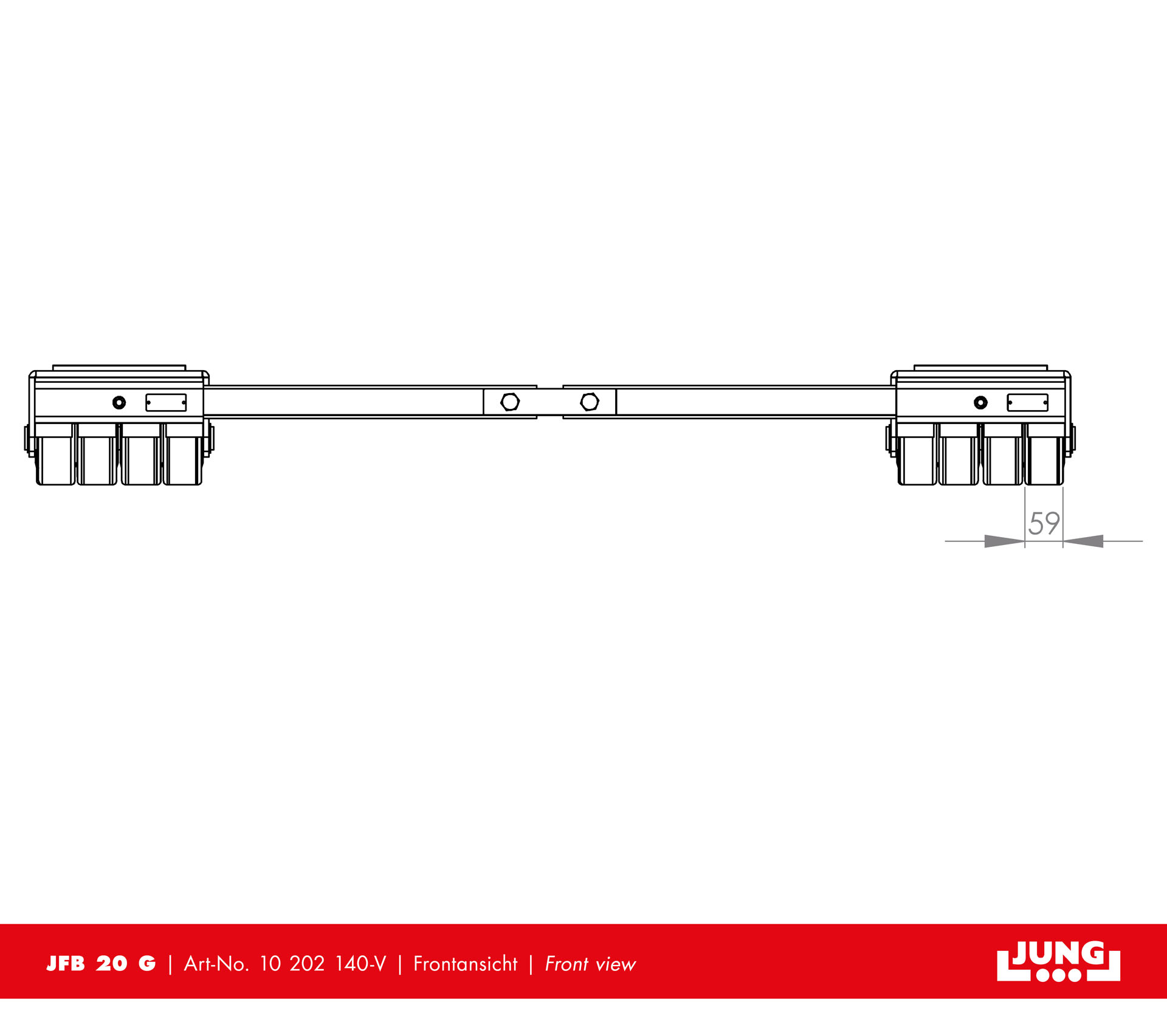

| Castor dimensions (Ø x l mm): | 140 x 59 |
| Connecting bar with joint (mm): | 2 x 1 540 |
| Height (mm): | 180 |
| Load capacity (suitable): | 31 - 40 t |
| Load capacity (t): | 20 |
| Number of castors (Pieces): | 2 x 8 |
| Suppoting surface per cassette (mm): | 220 x 200 |

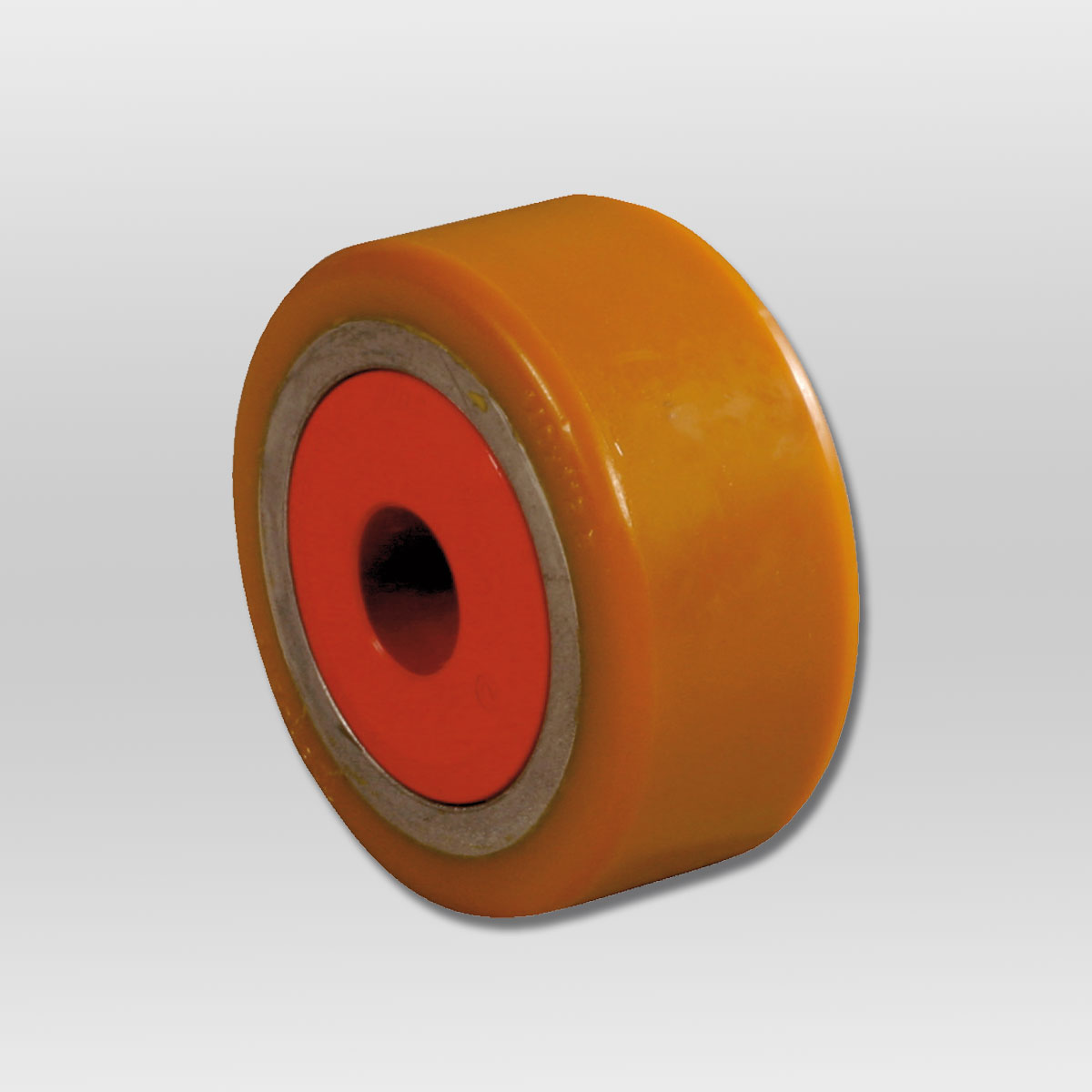

| Weight JUWAthan®plus (kg): | 80 |
Additional Products

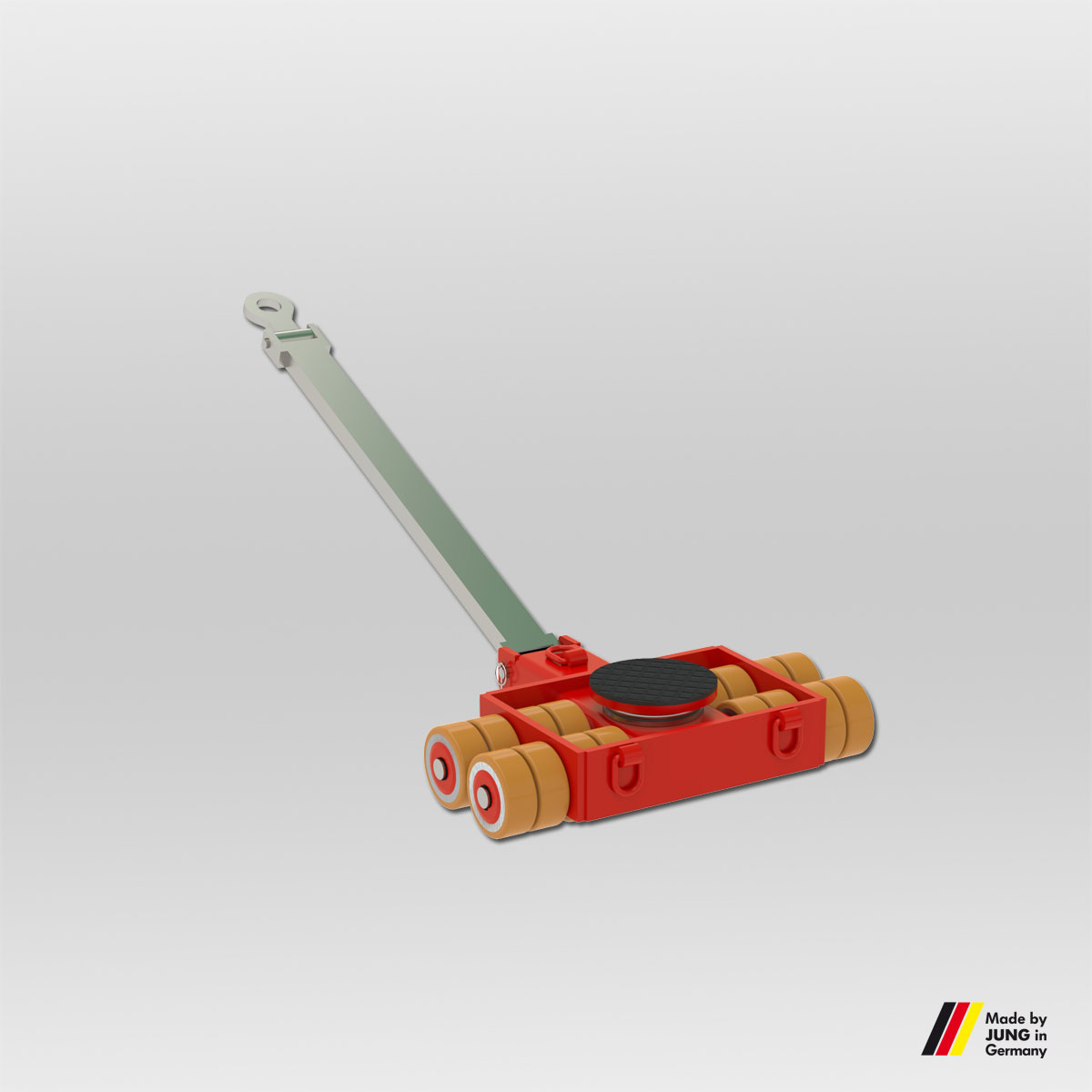

Steerable trolley JLB 20 G
09 203 140-V
Load capacity: 20 t (in a set 40 t*)
Height: 180 mm
*) Set consisting of JLB 20 G + JFB 20 G
Height: 180 mm
*) Set consisting of JLB 20 G + JFB 20 G
Price on request
Container-Traverse with drawbar
92 000 226-T2
Load capacity: up to 18 t
Heigth: 260 mm
Heigth: 260 mm
Price on request

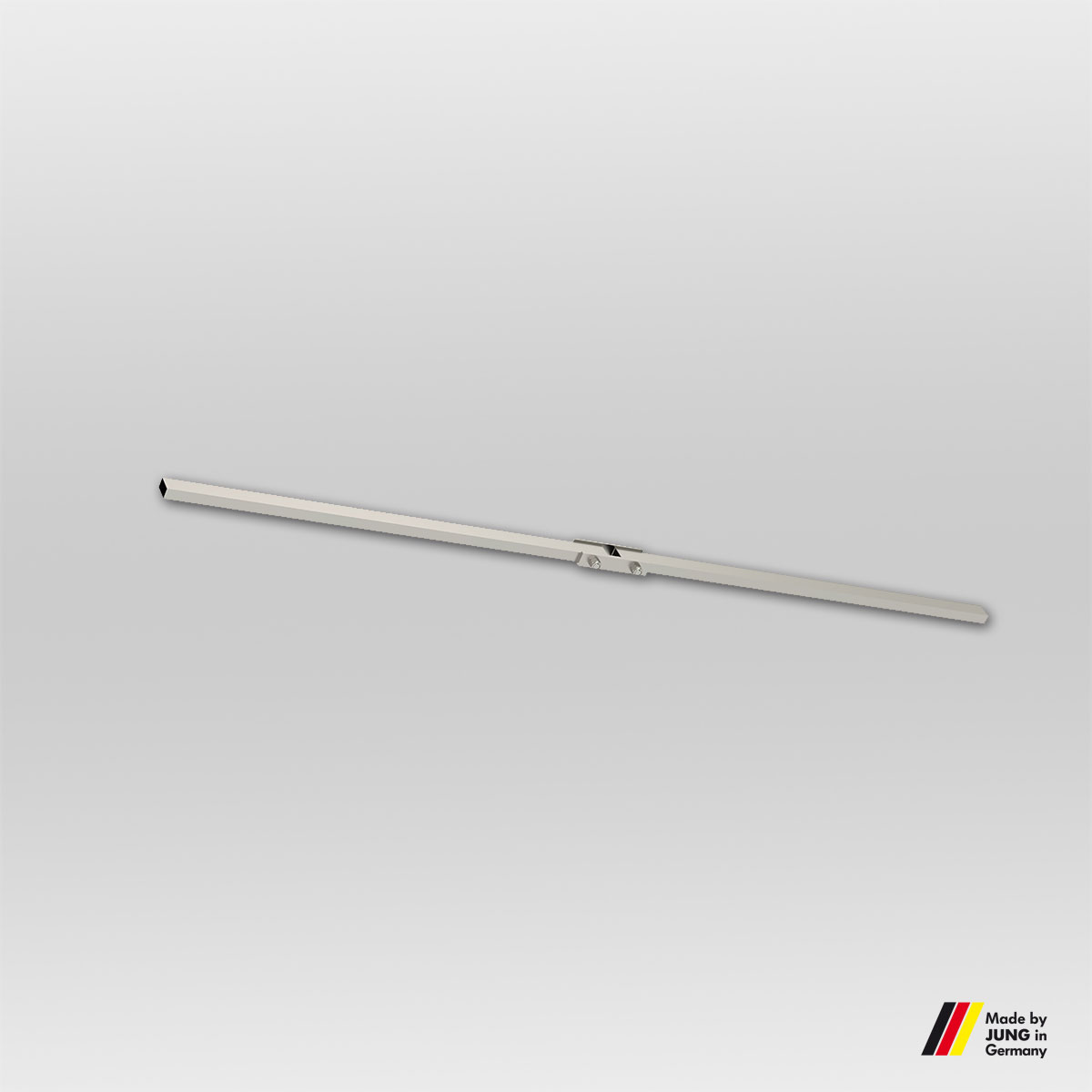

Connecting bar extended series G
