JUNG Hebe- und Transporttechnik GmbH

Adjustable trolley JFB 15 G

High-performance transport trolley from JUNG. The JFB 15 G transport unit transports loads up to 15 t with an installation height of 180 mm.

Load capacity: 2 x 7,5 t (in a set 30 t*)
Height: 180 mm

*) Set consisting of JLB 15 G + JFB 15 G

Price on request

Available

Request an offer

PDF-Datasheet

Product number: 10 153 140-V

Weight: 63 kg

Advantages of the transport trolley JFB 15 G

The double castor design results in dramatically easier steering and also causes the trolleys on the rear axis to follow in a truer course.
All transport trolleys are ready for use.
The adjustable-width transport trolley consists of two transport units and connecting bar.

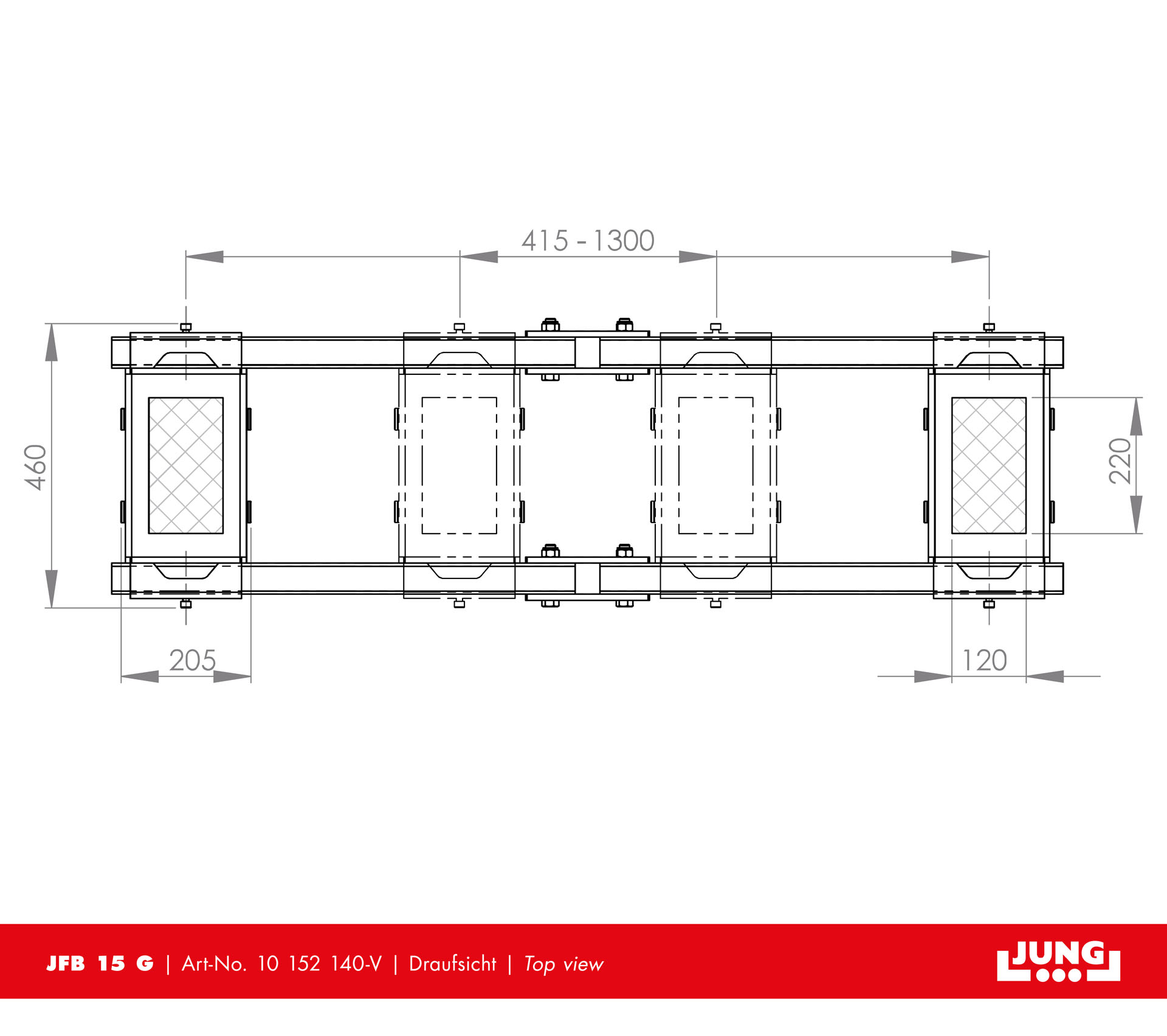

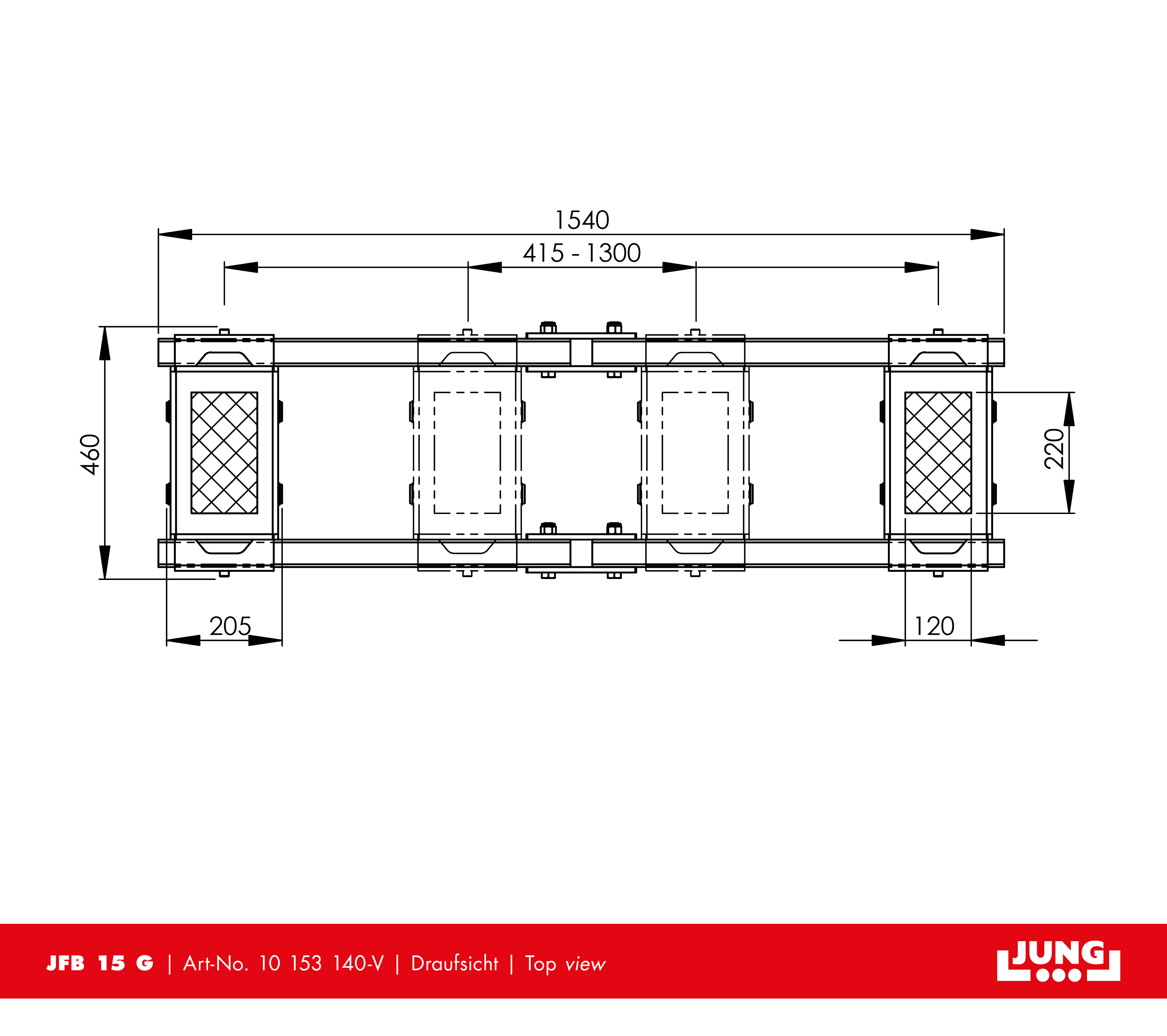

Cassette dimensions (mm):	460 x 205
Cassettes adjustable from - to (mm):	415 - 1 300

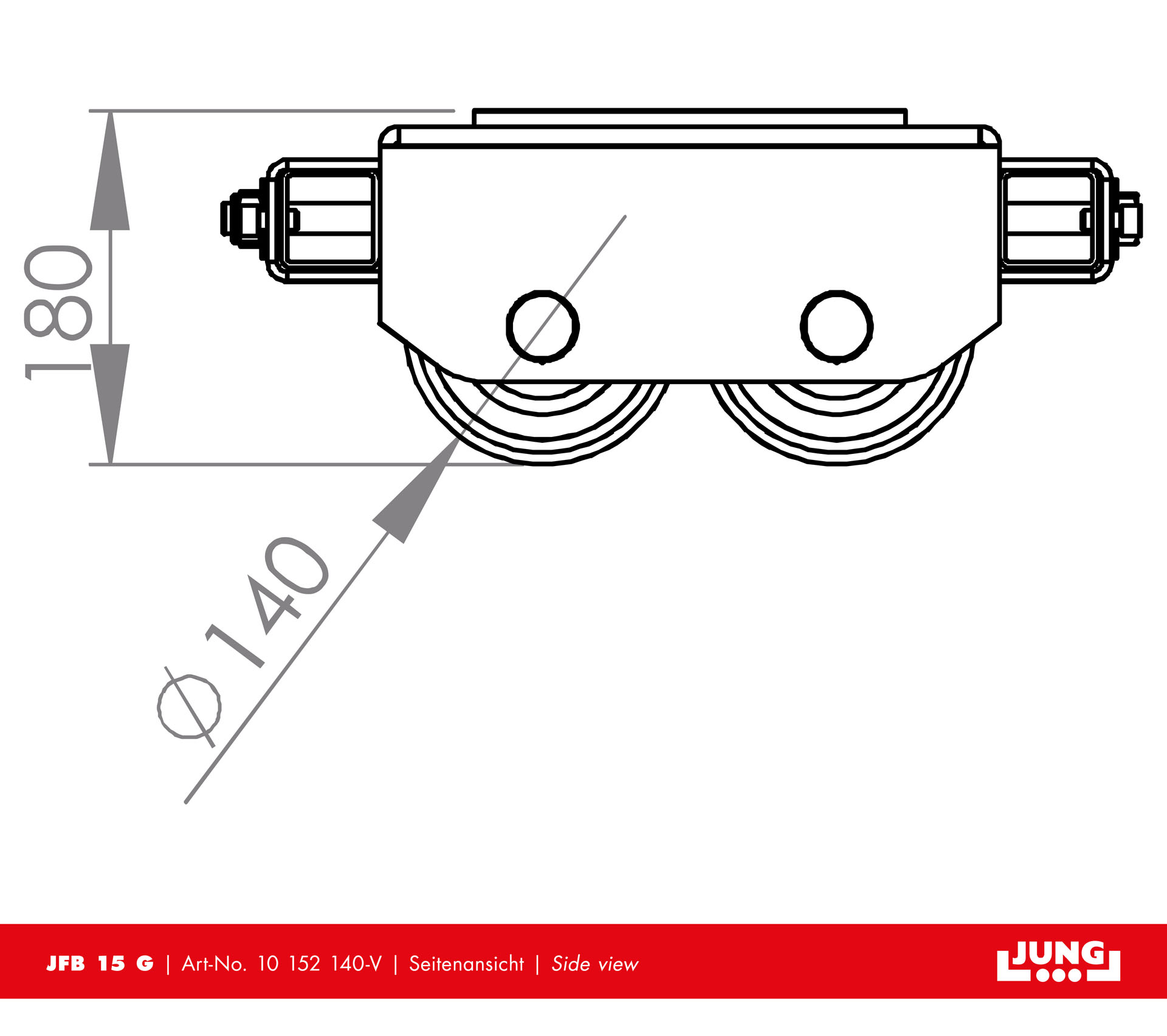

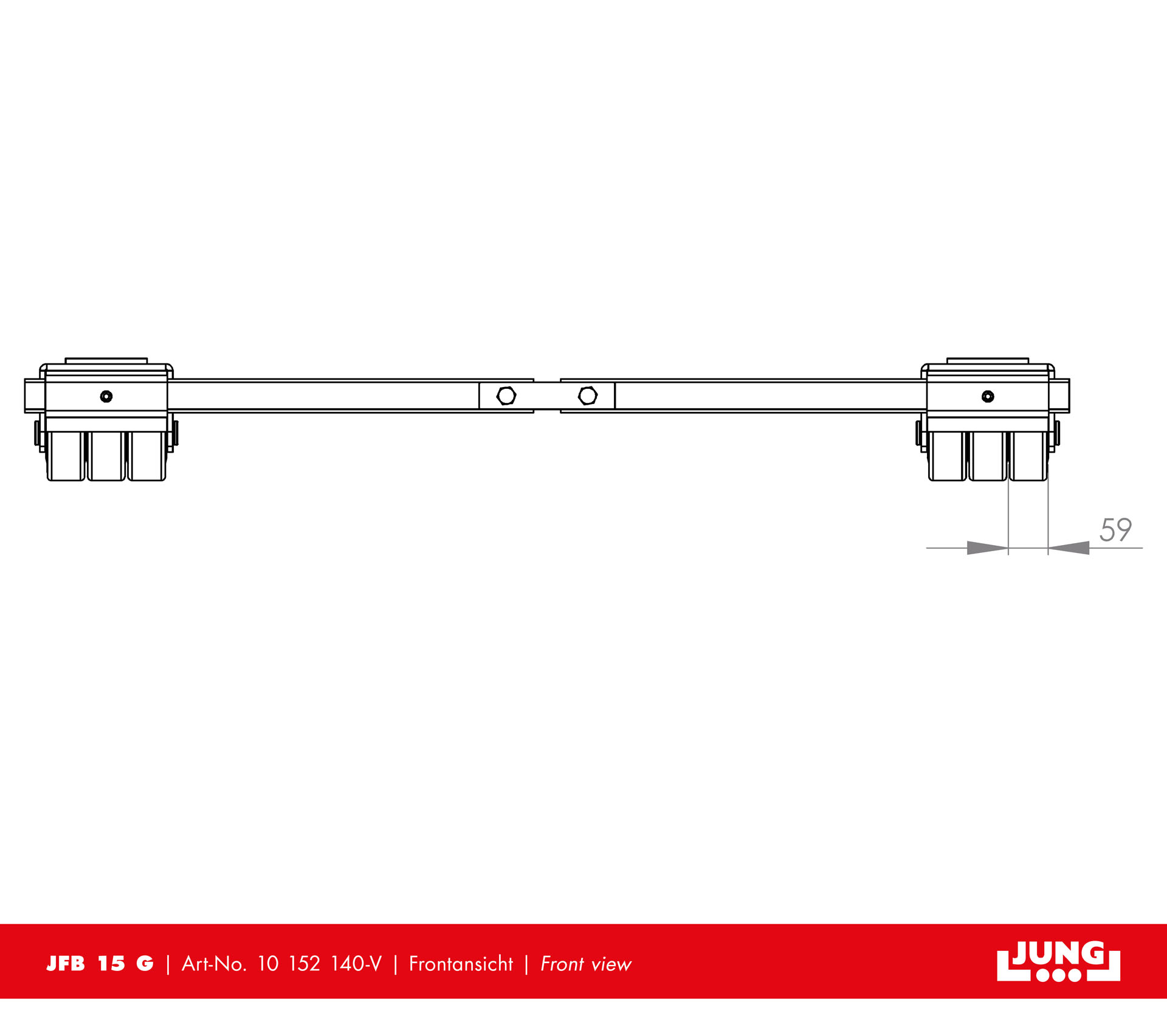

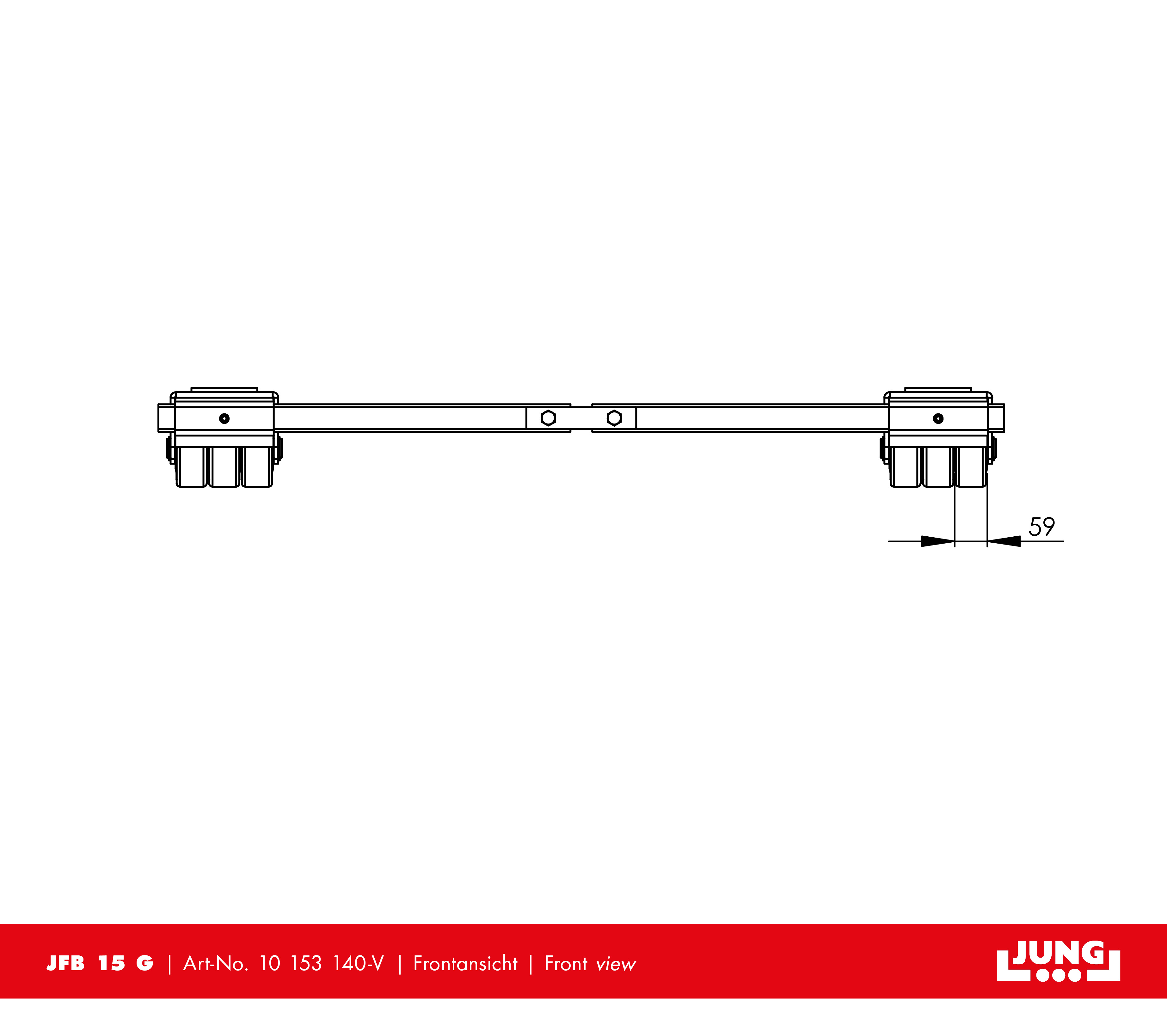

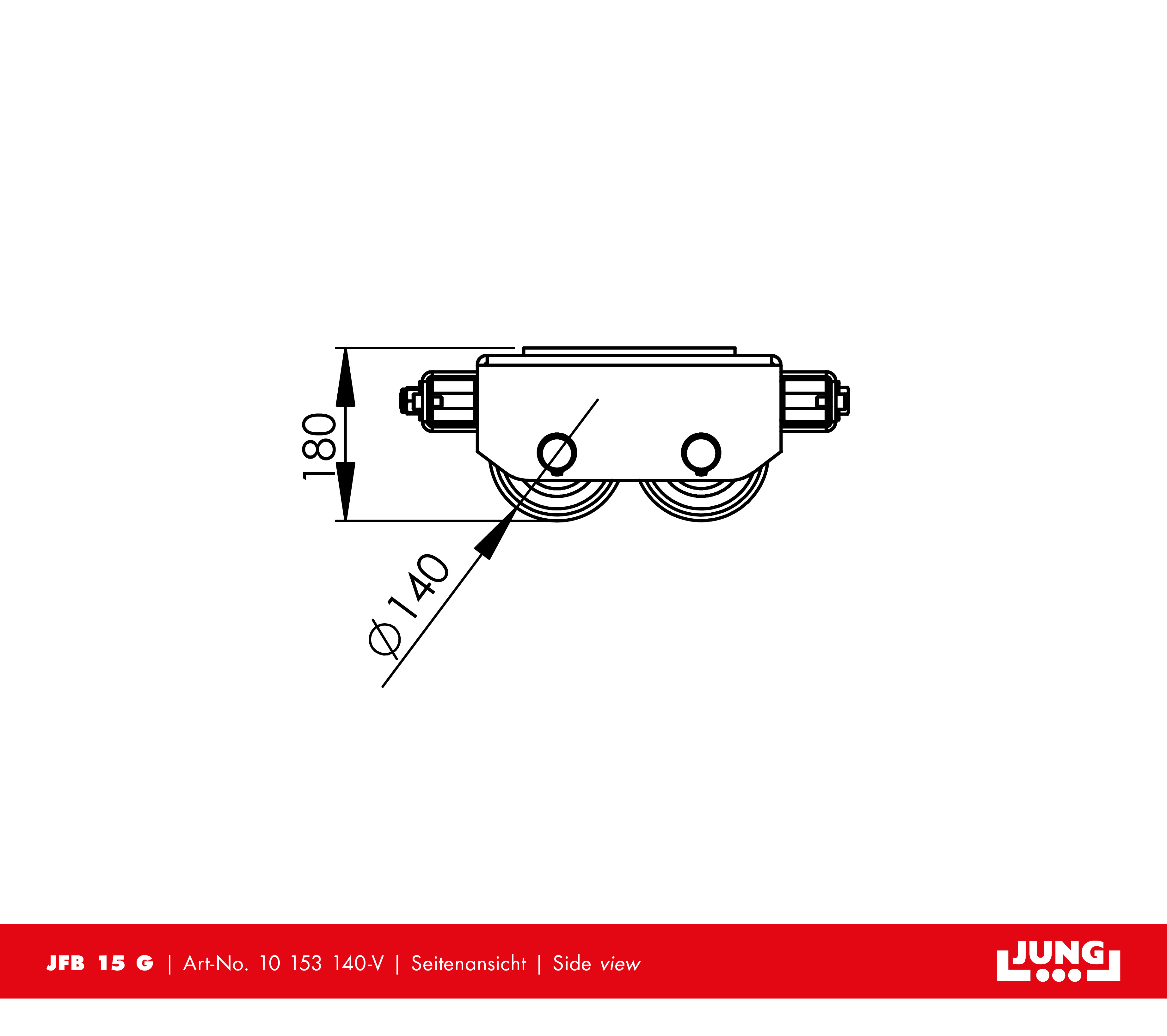

Castor dimensions (Ø x l mm):	140 x 59
Connecting bar with joint (mm):	2 x 1 540
Height (mm):	180
Load capacity (suitable):	26 - 30 t
Load capacity (t):	15
Number of castors (Pieces):	2 x 6
Suppoting surface per cassette (mm):	220 x 120
Weight JUWAthan®plus (kg):	63
