JUNG Hebe- und Transporttechnik GmbH
Adjustable trolley JFB 12 K
High-performance transport trolley from JUNG. The JFB 12 K trolley transports loads up to 12 t with an installation height of 110 mm.
Load capacity: 2 x 6 t (in a set 24 t*)
Height: 110 mm
*)Set consisting of JL 12 K + JFB 6 K
Height: 110 mm
*)Set consisting of JL 12 K + JFB 6 K
Product number:
08 121 085-V
Weight:
34 kg
Product information "Adjustable trolley JFB 12 K"
Advantages of the transport trolley JFB 12 K
- The transport trolleys are ready to use and include a steerable model with a ball bearing-supported turntable and handlebar.
- The support wheels are non-marking.
- All transport trolleys are ready for use: The adjustable-width transport trolley consists of two transport units and connecting bar.
- The K-series towing bars can be fitted with a removable handle, which is also available as a separate re-fitting set.
- Inspected according to technical regulation ANSI ⁄ ASME (USA)

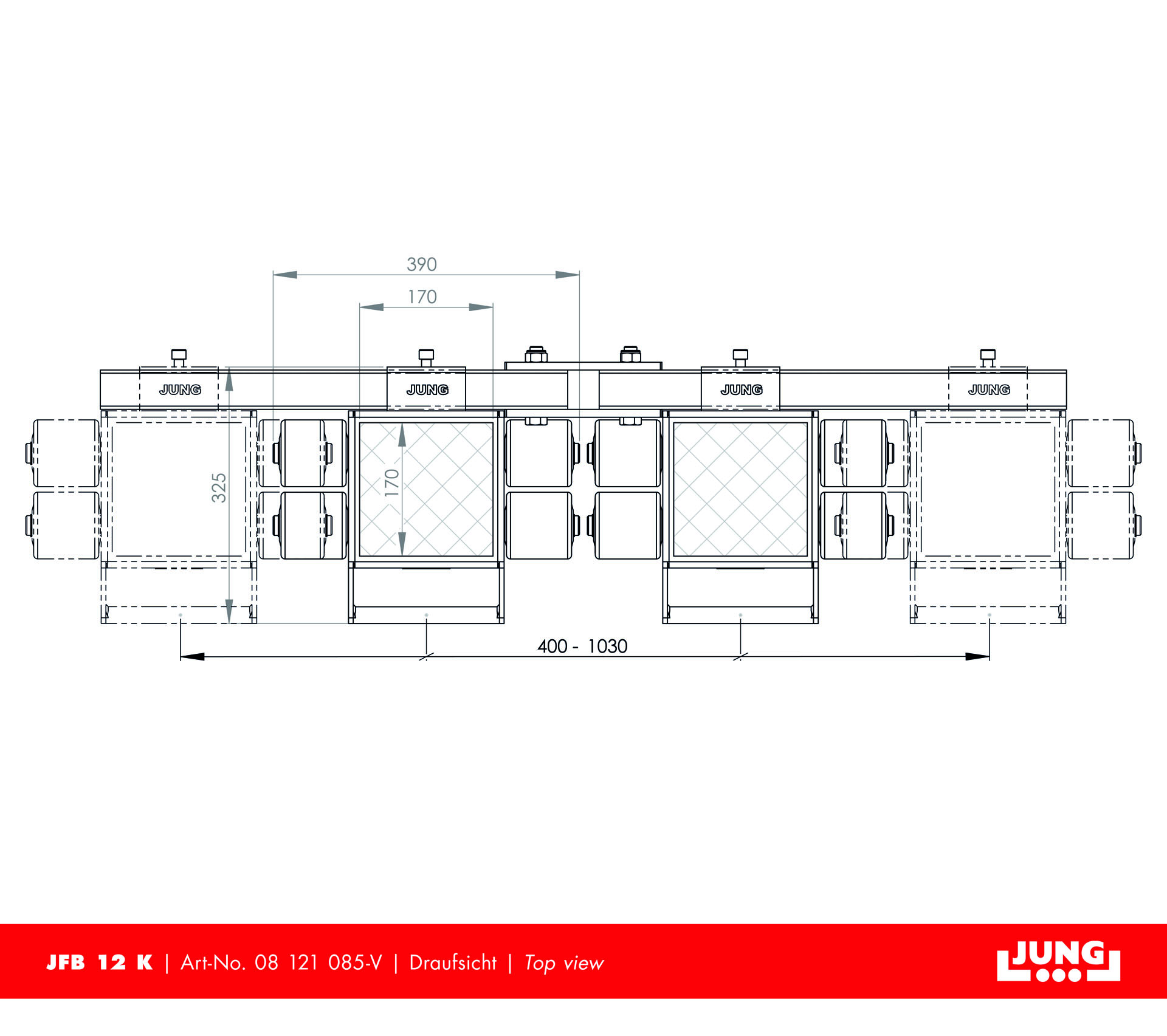

| Cassette dimensions (mm): | 325 x 390 |
|---|---|
| Cassettes adjustable from - to (mm): | 400 - 1 030 |

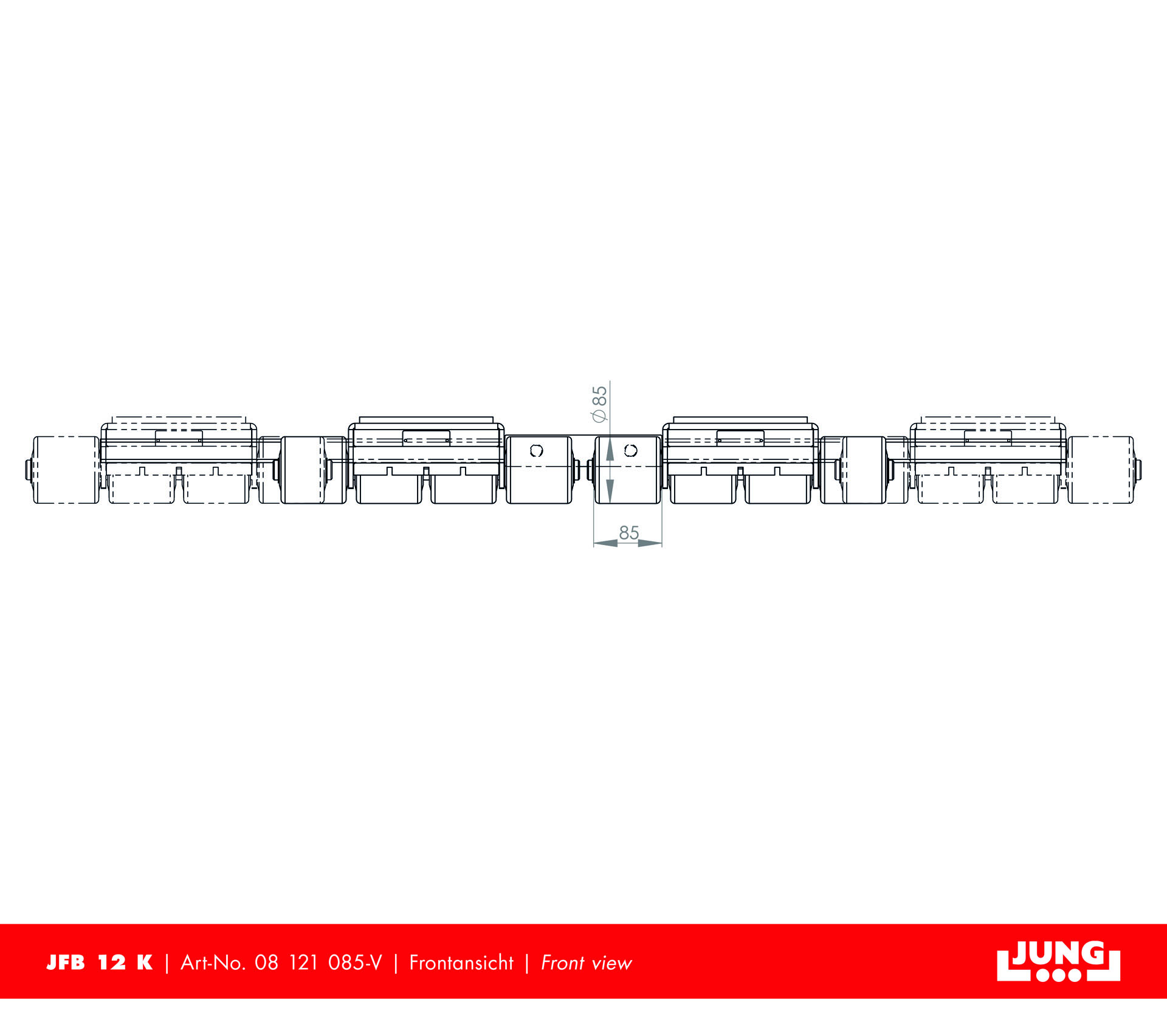

| Castor dimensions (Ø x l mm): | 85 x 85 |
| Connecting bar with joint (mm): | 1 230 |

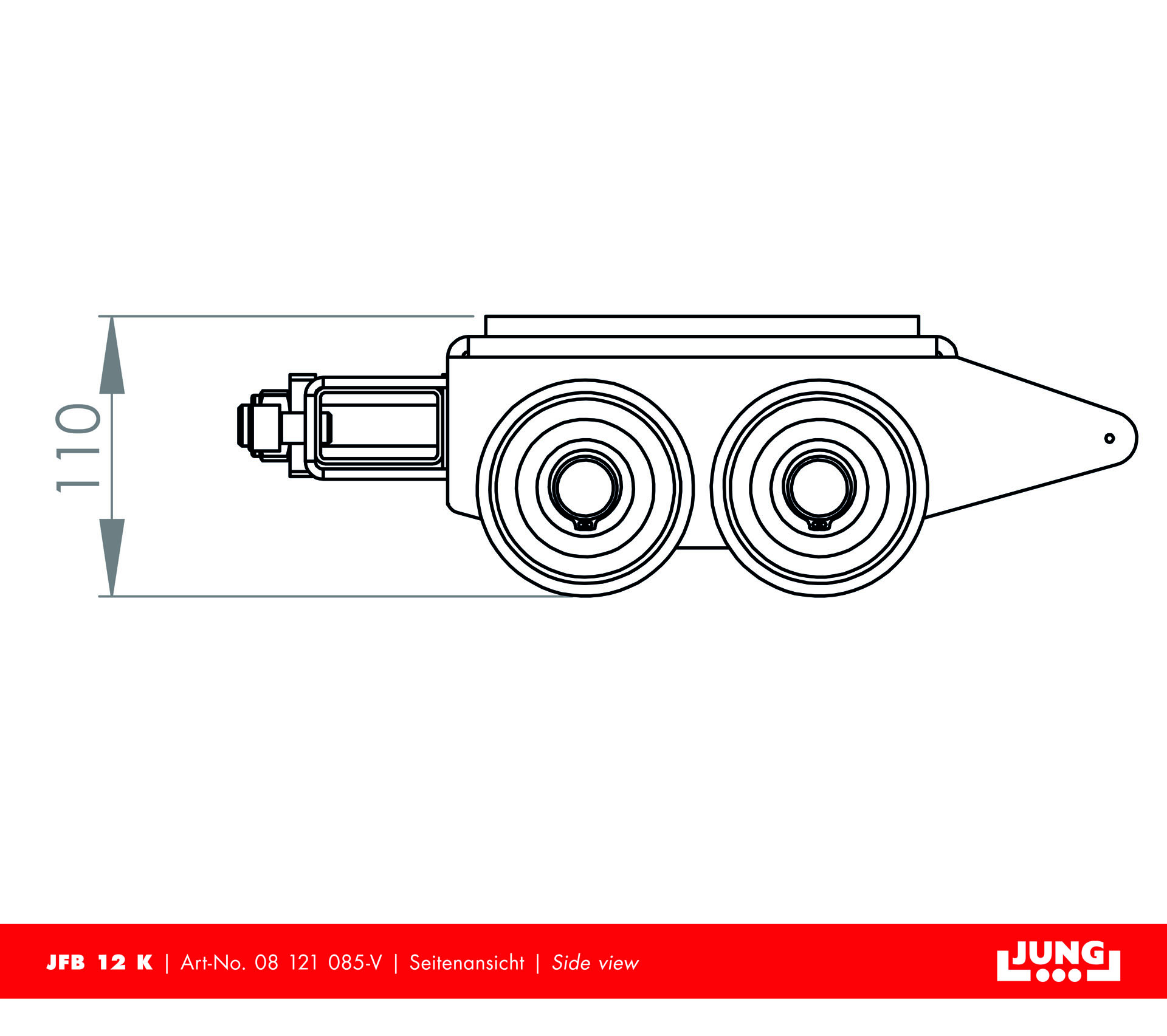

| Height (mm): | 110 |
| Load capacity (suitable): | 21 - 25 t |
| Load capacity (t): | 12 |
| Number of castors (Pieces): | 2 x 8 |
| Suppoting surface per cassette (mm): | 170 x 170 |
| Weight JUWAthan®plus (kg): | 35 |
Additional Products

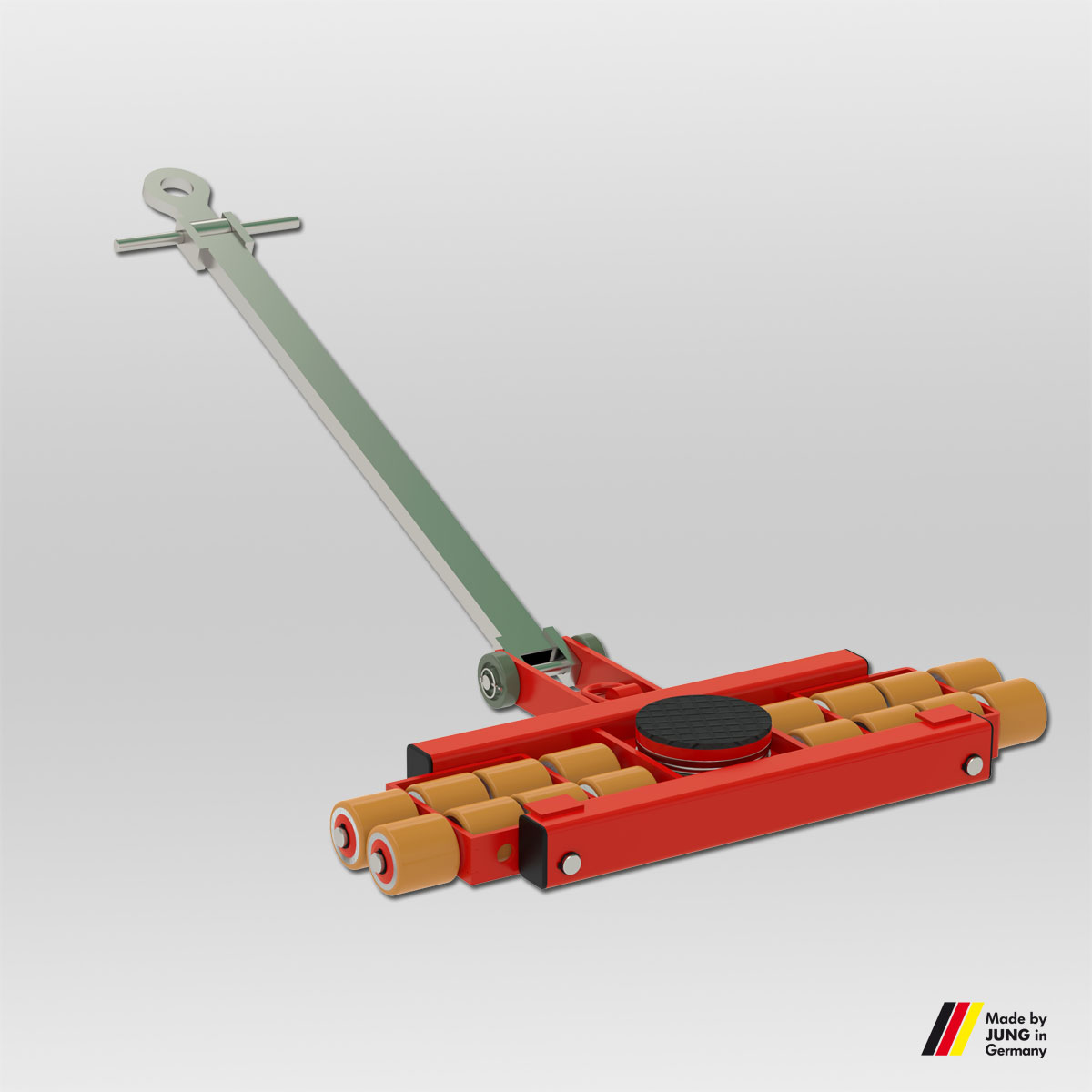

Steerable trolley JL 12 K
