JUNG Hebe- und Transporttechnik GmbH

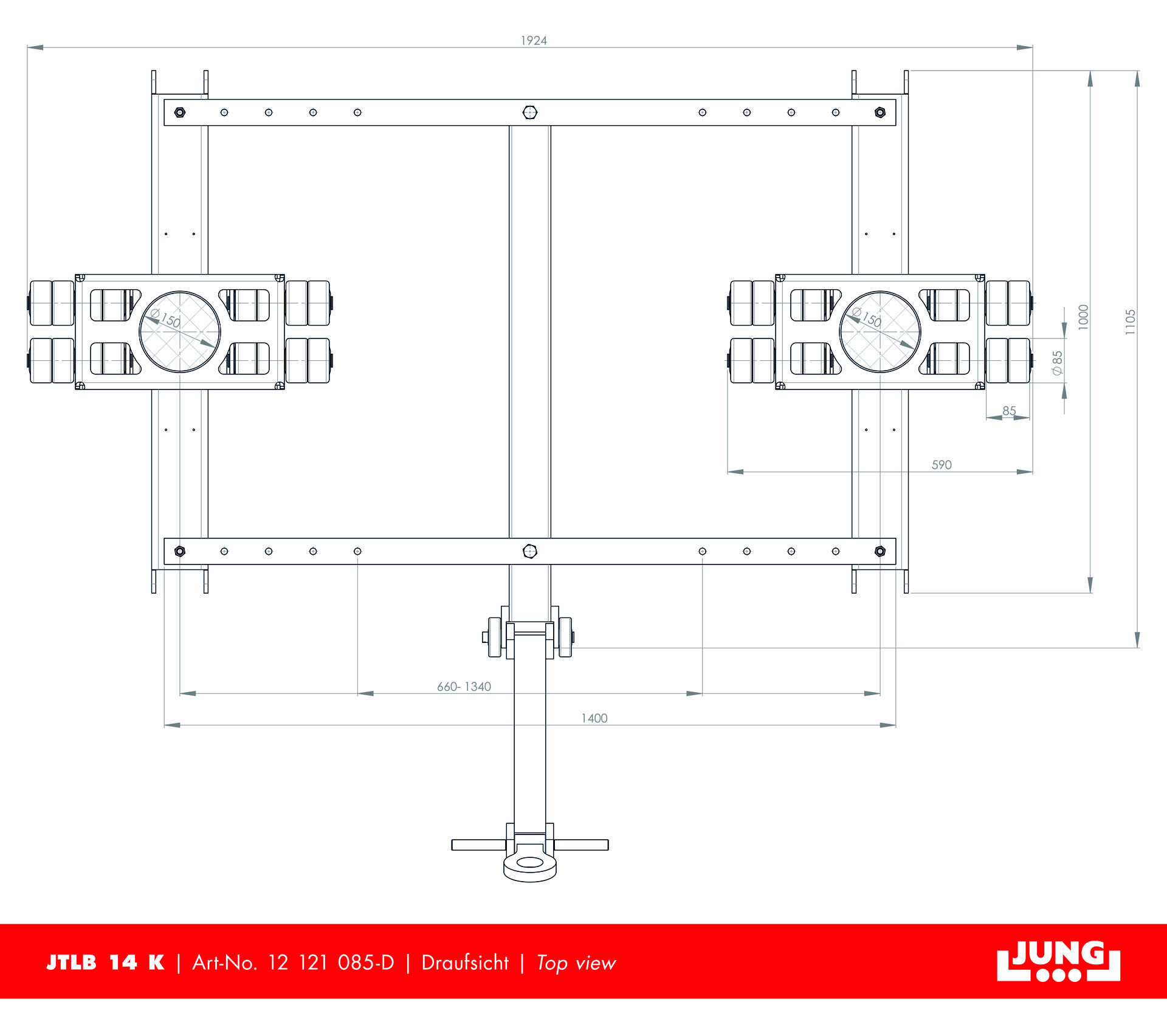

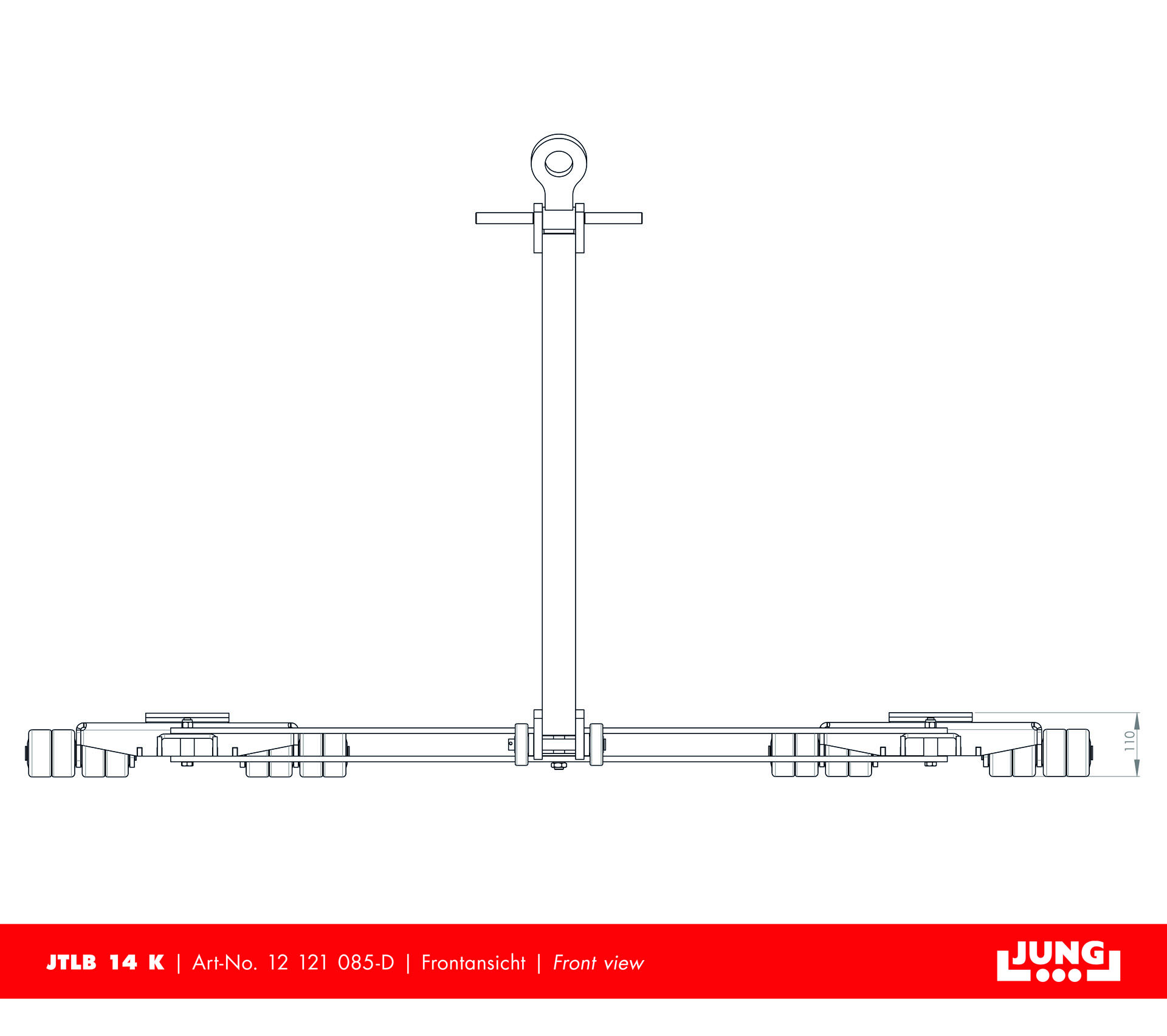

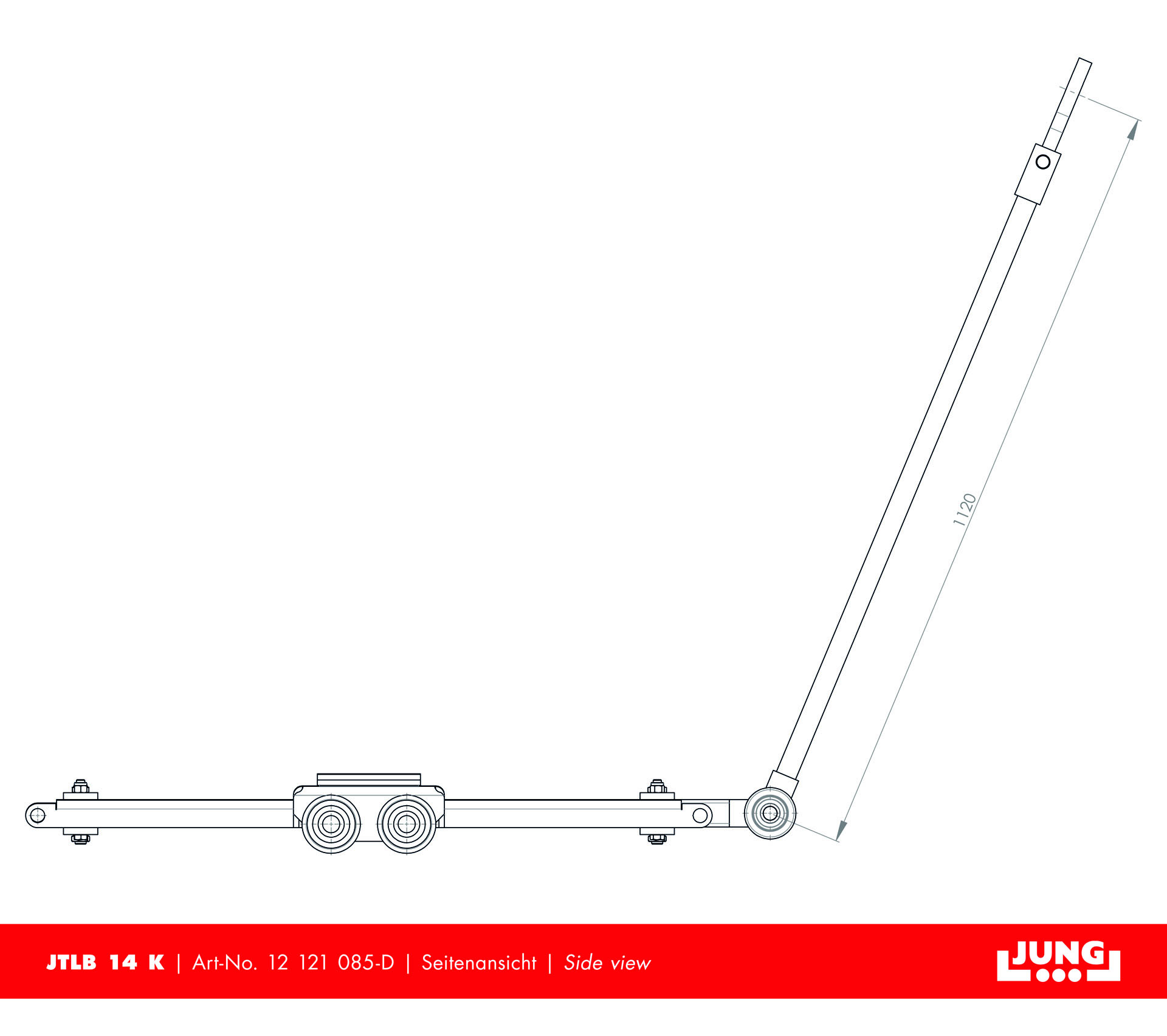

Tandem trolley JTLB 14 K
For transporting loads without a center point support - the tandem trolleys JTLB 6 K for loads up to 14 t.
Load capacity: 14 t
Height: 110 mm
Height: 110 mm
Product number:
12 121 085-D
Weight:
102 kg
Product information "Tandem trolley JTLB 14 K"
Advantages of the tandem trolleys JTLB 14 K
- Tandem transport trolley for loads with no leading or trailing edge center support.
- The double castors design results in dramatically easier steering due to reduced friction forces in curves. The much lower friction resistance also causes the castors on the rear axis to following in directional stability.
- Multi-purpose use: Also usable as two single trolleys, each with half of the combined load capacity. No additional accessories needed.
- Ready for use: 2 interconnected steerable trolleys with 2 handlebars and two tandem connecting bars.
| Adjustable: | 5 x |
|---|---|
| Adjustable from - to Vmin. - Vmax. (mm): | 660 - 1 340 |
| Castor dimensions (Ø x l mm): | 85 x 85 |
| Handlebar with pulling eye (mm): | 1 210 |
| Height (mm): | 110 |
| Load capacity (t): | 14 |
| Number of twin castors (pcs.): | 16 |
| Steerable dimensions (mm): | 1 000 x 590 |
| Supporting surface per turnable: | 150 |
| Total length/width (mm): | 1 105 x 1 924 |
| Width of track and connection rod (mm): | 1 400 |
