JUNG Hebe- und Transporttechnik GmbH

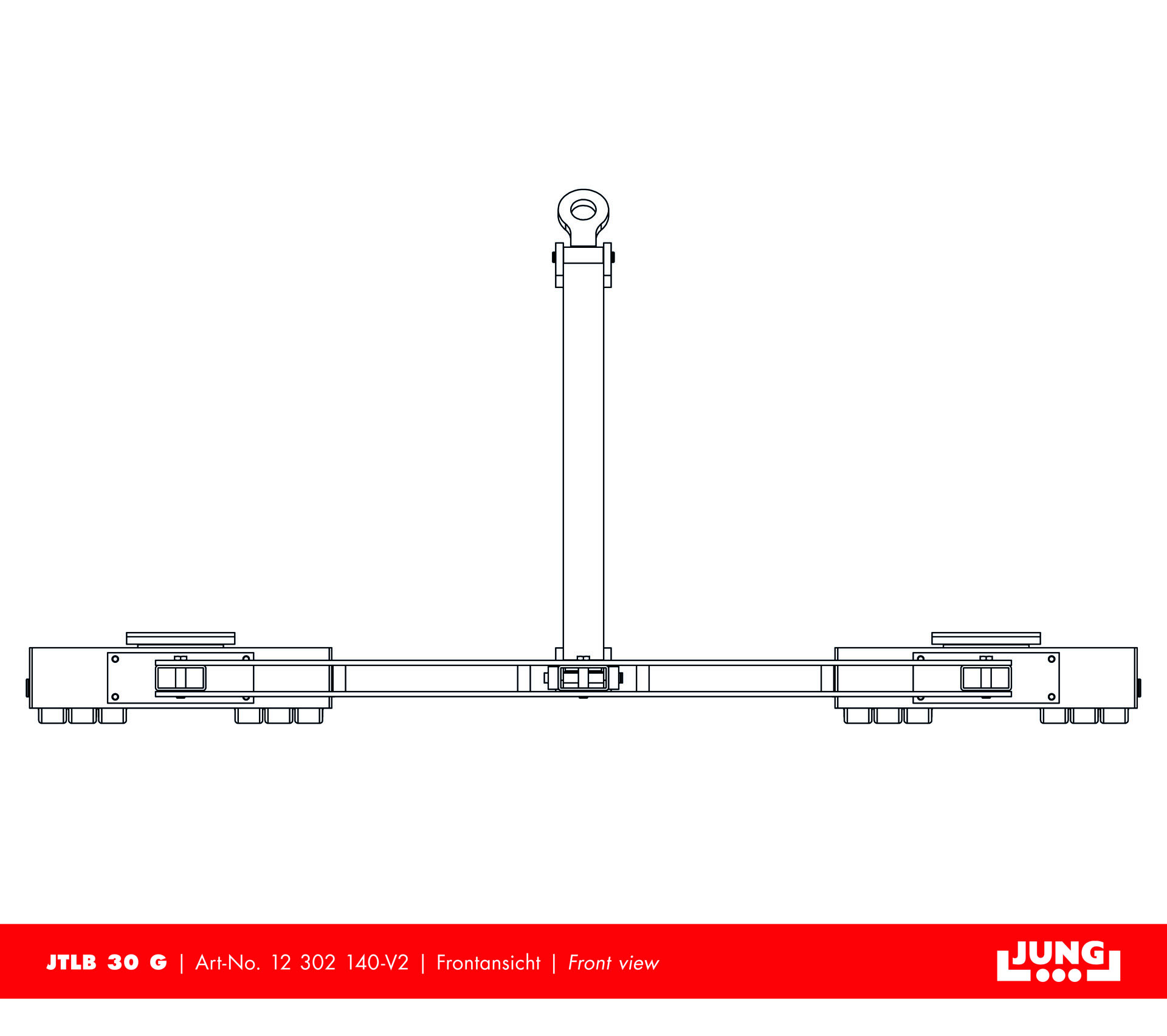

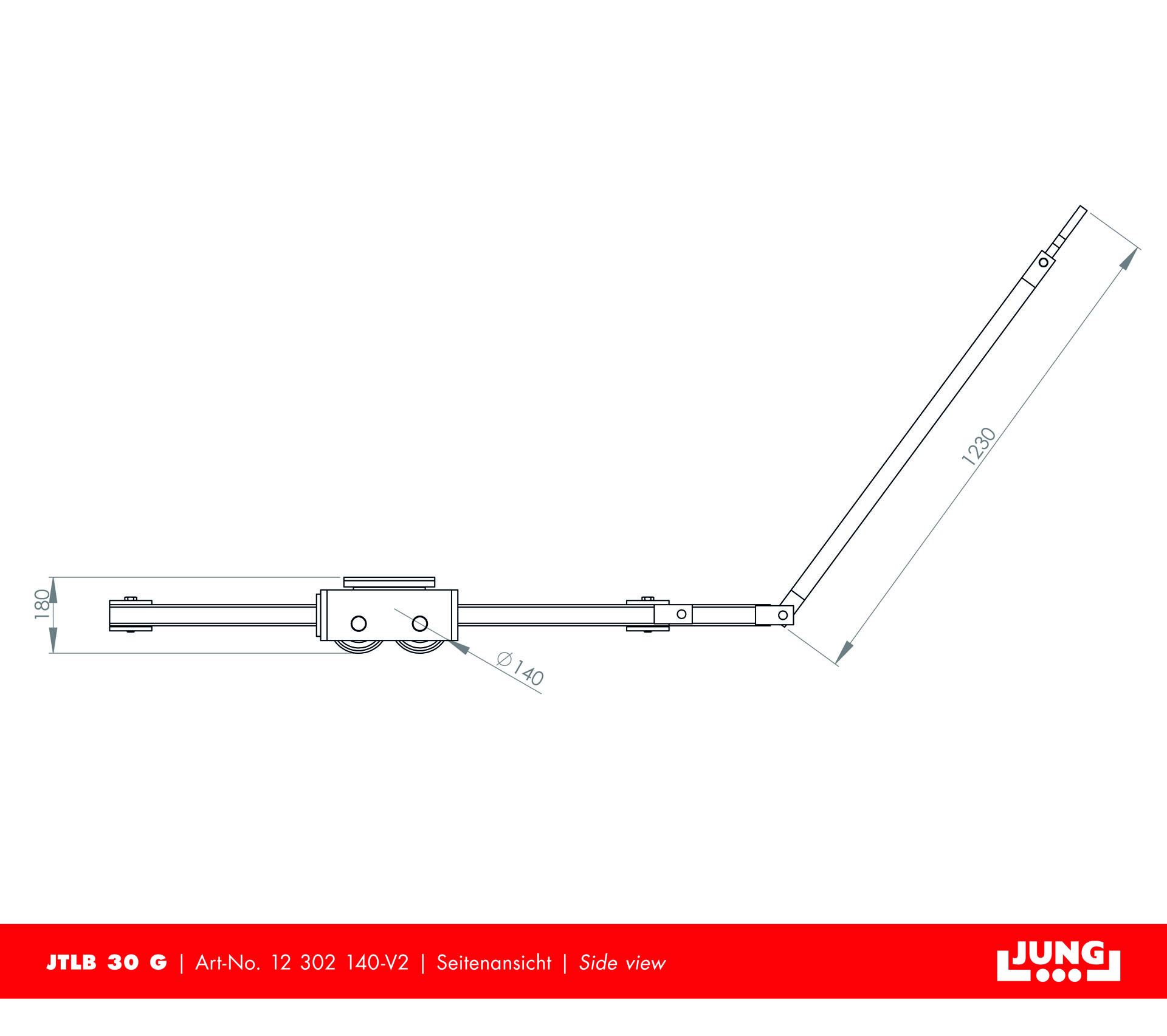

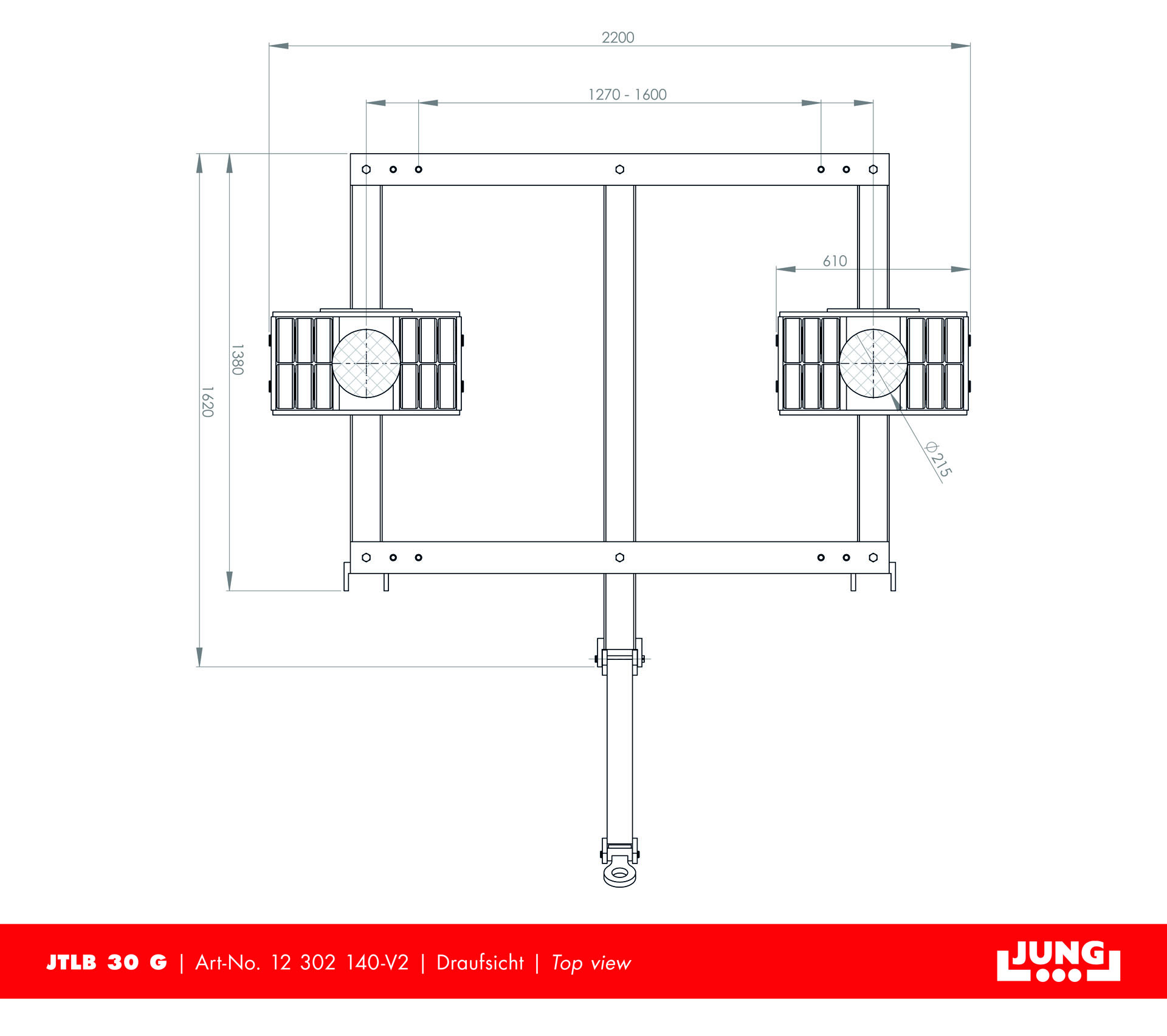

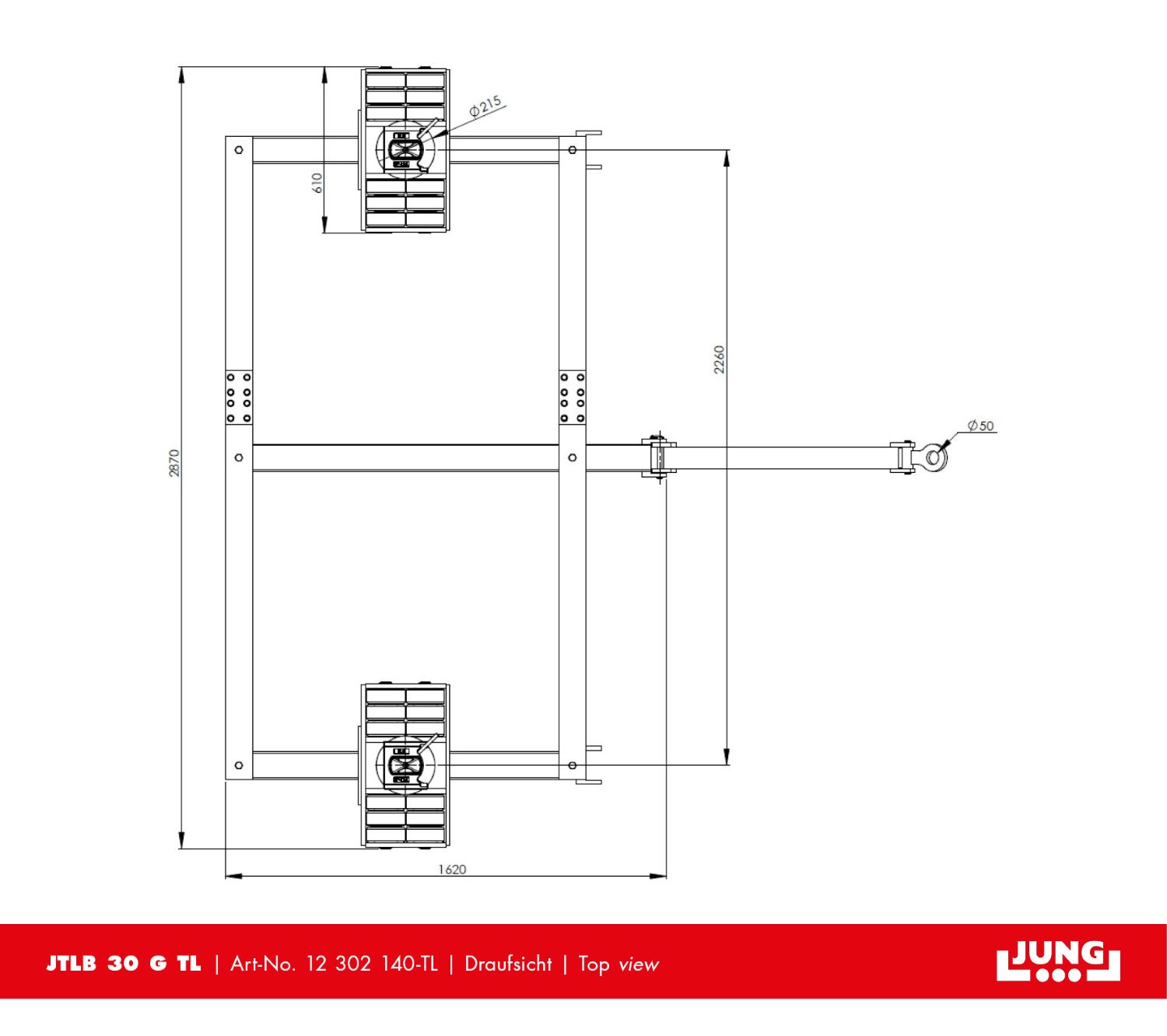

Tandem trolley JTLB 30 G
For transporting loads without a center point support - the tandem trolleys JTLB 30 G for loads up to 30 t.
Load capacity: 20 t
Height: 180 mm
Height: 180 mm
Product number:
12 302 140-V2
Weight:
283 kg
Product information "Tandem trolley JTLB 30 G"
Advantages of tandem trolleys JTLB 30 G professional
- Big castors provide optimal rolling characteristics on uneven surfaces and rough pavements.
- Safely overcomes small ledges, cracks in the concrete and countersunk rail tracks.
- Multi-purpose use: also useable as two single trolleys, each with half of the combined load capacity. No additional accessories needed.
- Custom solutions available.
- Tandem transport trolley in other lengths available on request.
| Adjustable: | 3 x |
|---|---|
| Adjustable from - to Vmin. - Vmax. (mm): | 1 270 - 1 600 |
| Castor dimensions (Ø x l mm): | 140 x 59 |
| Handlebar with pulling eye (mm): | 1 230 |
| Height (mm): | 180 |
| Load capacity (t): | 30 |
| Number of castors (Pieces): | 24 |
| Steerable dimensions (mm): | 1 380 x 610 |
| Supporting surface per turnable: | 215 |
| Total length/width (mm): | 1 620 x 2 200 |
| Weight JUWAthan®plus (kg): | 283 |
| Width of track and connection rod (mm): | 1 700 |
