JUNG Hebe- und Transporttechnik GmbH
Tandem trolley JTL 20 G
For transporting loads without a center point support - the tandem trolleys JTL 20 G for loads up to 20 t.
Load capacity: 20 t
Height: 180 mm
Height: 180 mm
Product number:
12 202 140-V
Weight:
168 kg
Product information "Tandem trolley JTL 20 G"
Advantages of tandem trolleys JTL 20 G Professional
- Big castors provide optimal rolling characteristics on uneven surfaces and rough pavements.
- Safely overcomes small ledges, cracks in the concrete and countersunk rail tracks.
- Multi-purpose use: also useable as two single trolleys, each with half of the combined load capacity. No additional accessories needed.
- Custom solutions available.
- Tandem transport trolley in other lengths available on request.

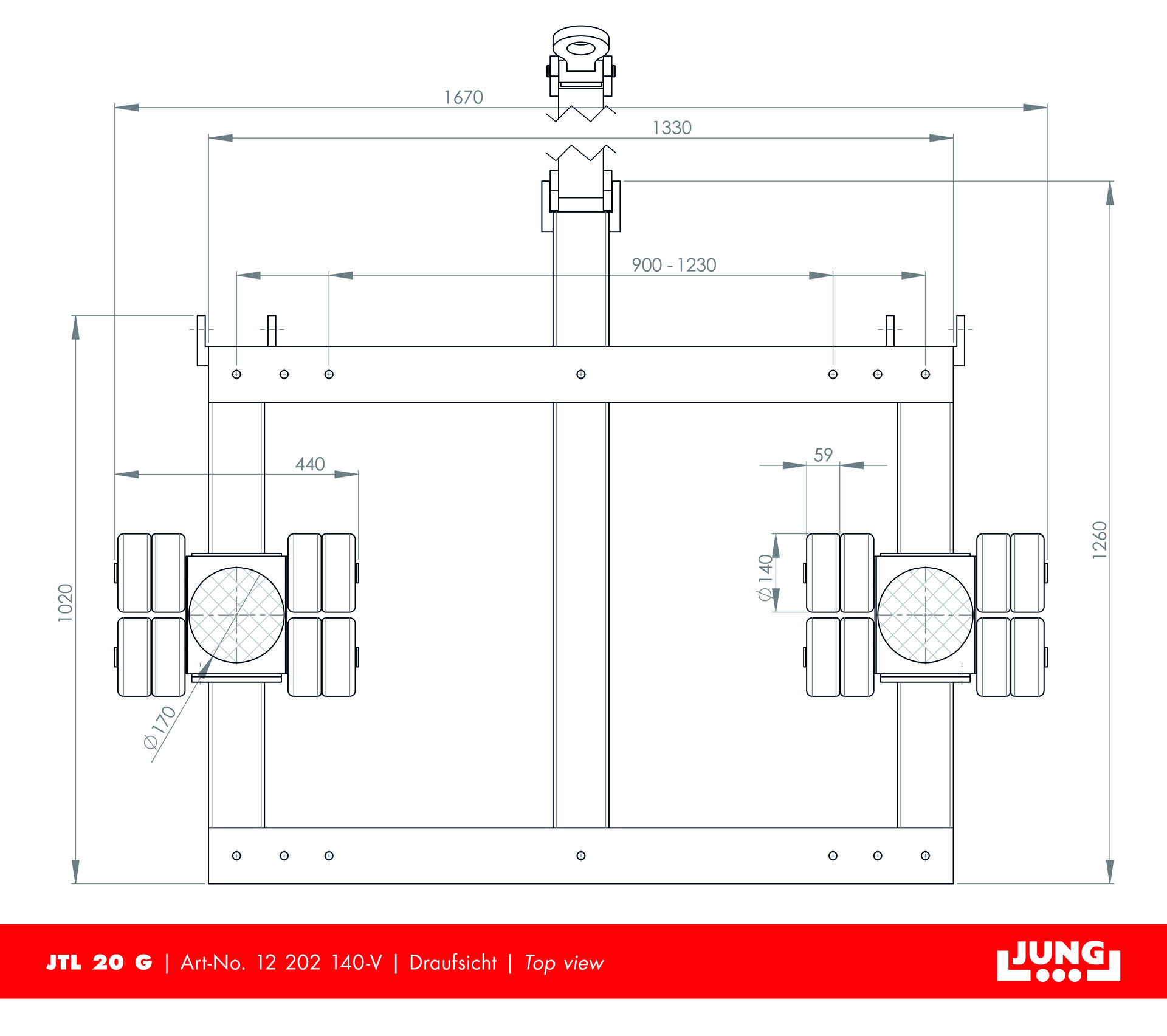

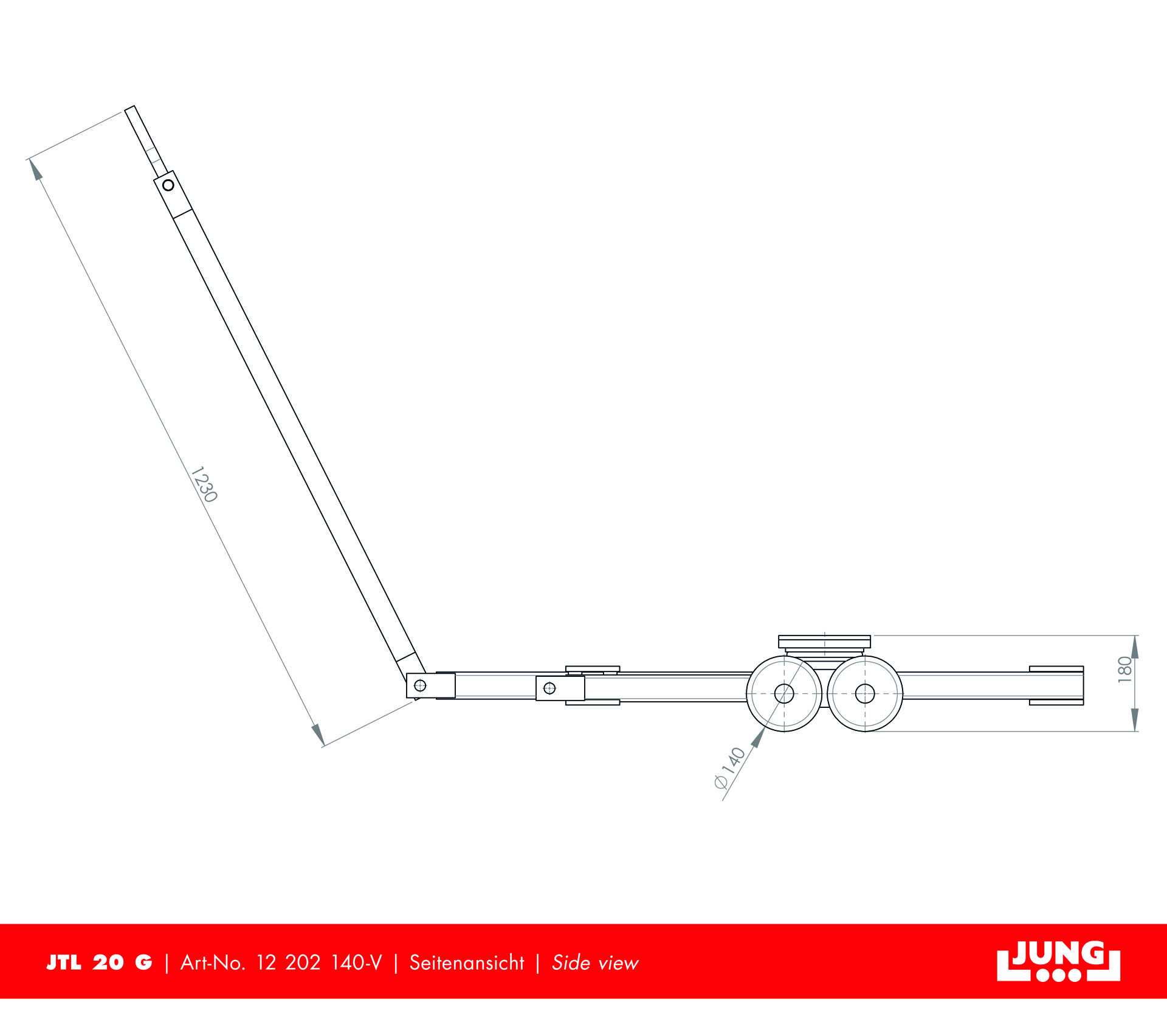

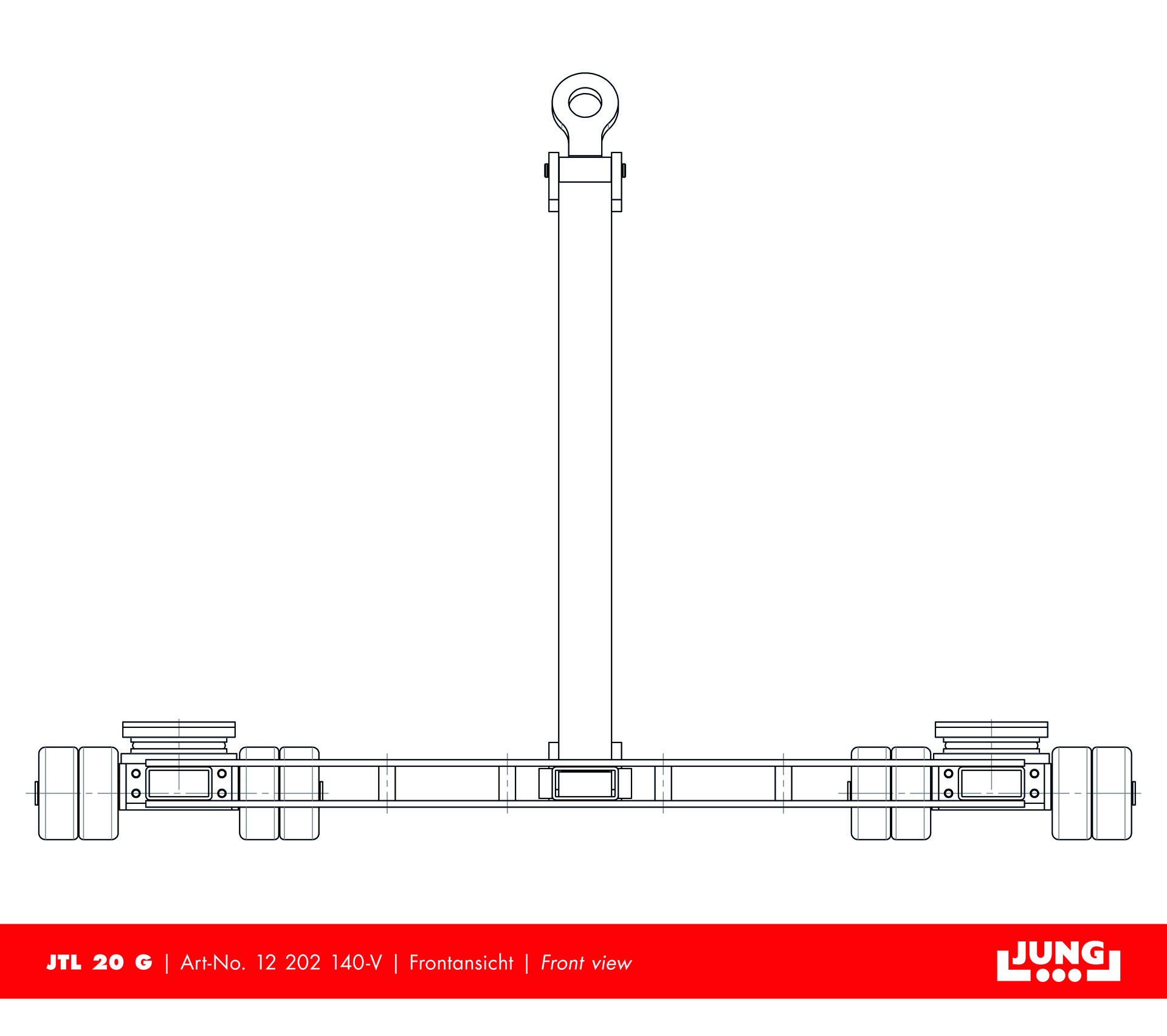

| Adjustable: | 3 x |
|---|---|
| Adjustable from - to Vmin. - Vmax. (mm): | 900 - 1 230 |
| Castor dimensions (Ø x l mm): | 140 x 59 |
| Handlebar with pulling eye (mm): | 1 230 |
| Height (mm): | 180 |
| Load capacity (t): | 20 |
| Number of castors (Pieces): | 16 |
| Steerable dimensions (mm): | 1 020 x 440 |
| Supporting surface per turnable: | 170 |
| Total length/width (mm): | 1 260 x 1 670 |
| Weight JUWAthan®plus (kg): | 168 |
| Width of track and connection rod (mm): | 1 330 |
