JUNG Hebe- und Transporttechnik GmbH
Steerable trolley JLB 20 G
High payloads and compact design - the JLB 20 G steering unit transports loads up to 20 t with an installation height of 180 mm.
Load capacity: 20 t (in a set 40 t*)
Height: 180 mm
*) Set consisting of JLB 20 G + JFB 20 G
Height: 180 mm
*) Set consisting of JLB 20 G + JFB 20 G
Product number:
09 203 140-V
Weight:
96 kg
Product information "Steerable trolley JLB 20 G"
Advantages of the transport trolley JLB 20 G
- The pivoting cassettes and axles within the frame assure even pressure distribution across all castors and across the floor. No need for complex and expensive hydraulic compensation system.
- The double castor design results in dramatically easier steering due to reduced friction forces in curves.
- All transport trolleys are ready for use.

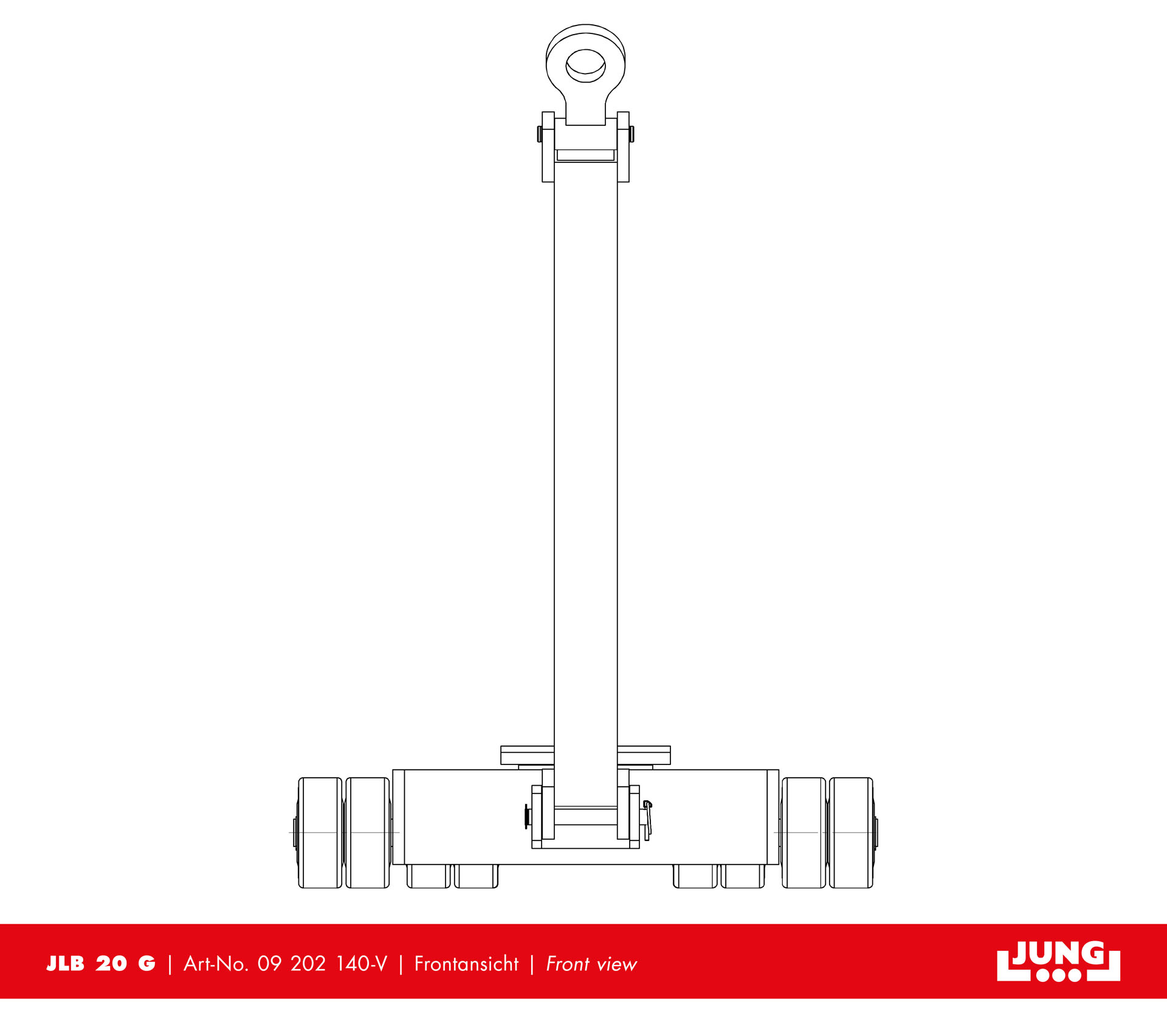

- The steerable transport trolley is fitted with a ball bearing supported turntable and a handlebar.

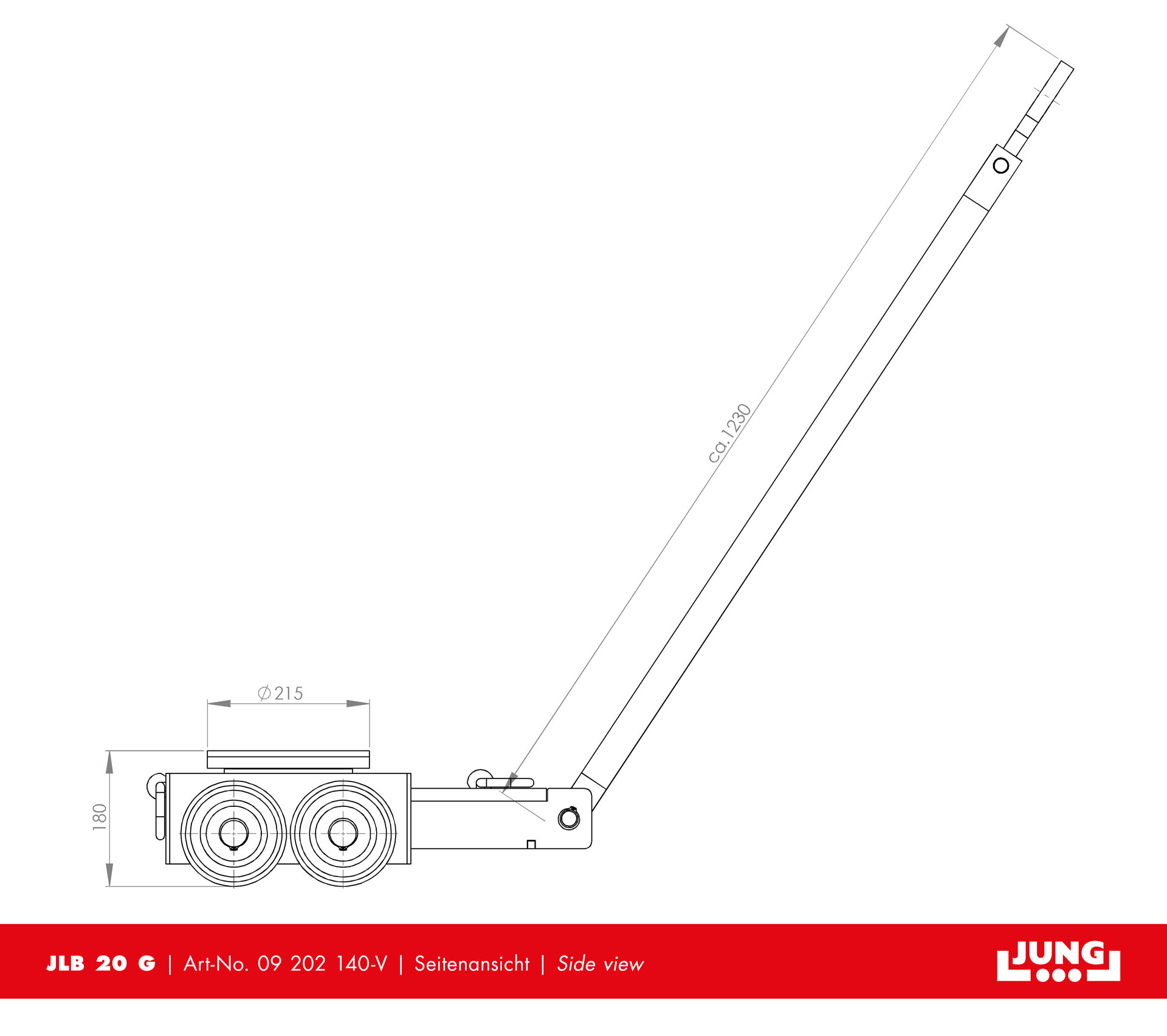

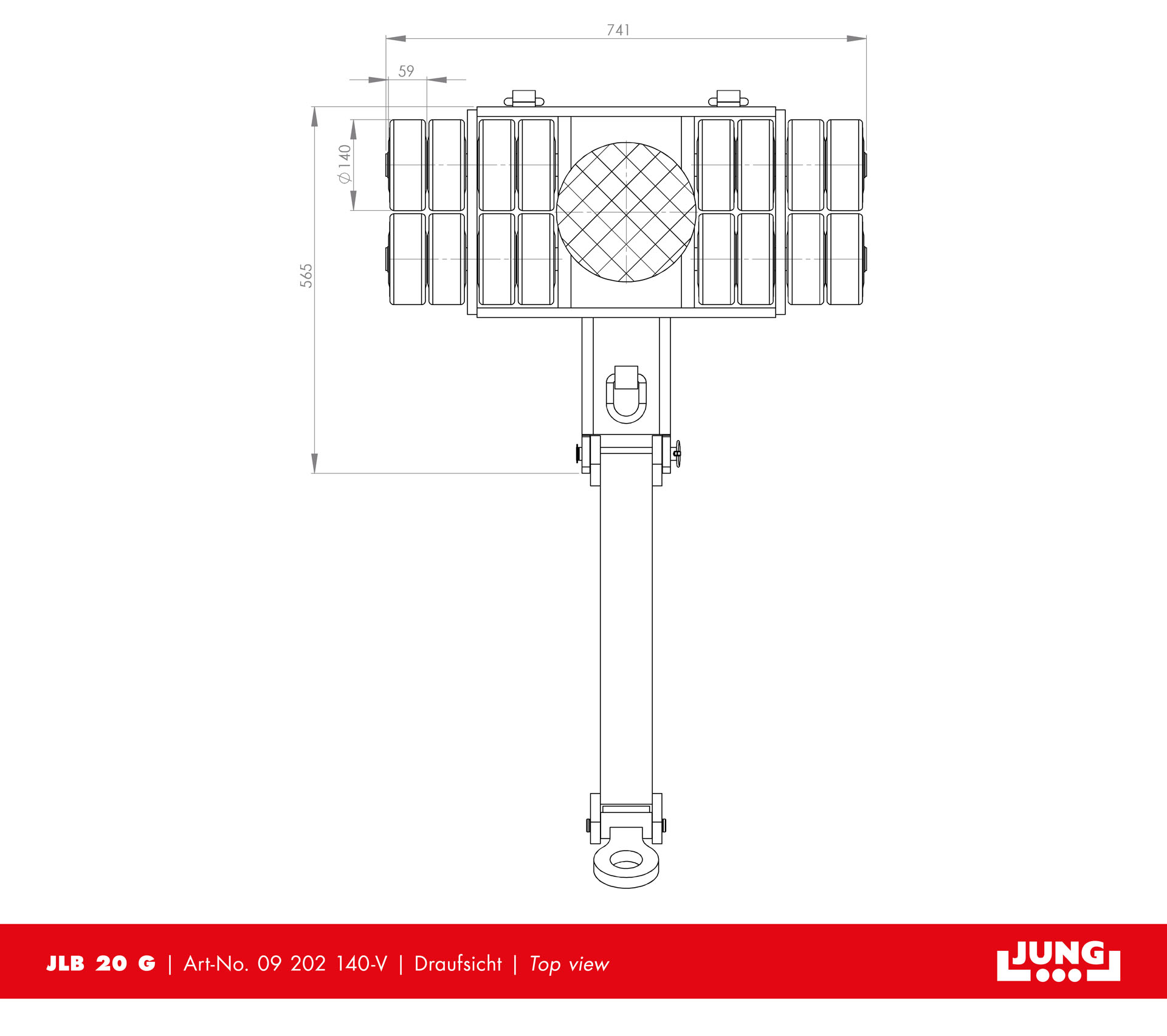

| Castor dimensions (Ø x l mm): | 140 x 59 |
|---|---|
| Dimensions steerable (mm): | 565 x 741 |
| Handlebar with pulling eye (mm): | 1 230 |
| Height (mm): | 180 |
| Load capacity (suitable): | 31 - 40 t |
| Load capacity (t): | 20 |
| Number of castors (Pieces): | 16 |
| Supporting surface of turnable Ø (mm): | 215 |
| Weight JUWAthan®plus (kg): | 96 |
