Steerable trolley JL 9 K
High-performance transport trolley from JUNG. The JL 9 K steerable trolley transports loads up to 6 t with an installation height of 110 mm.
Load capacity: 9 t (in a set 18 t*)
Height: 110 mm
*)Set consisting of JL 9 K + JFB 9 K
Height: 110 mm
*)Set consisting of JL 9 K + JFB 9 K
Product number:
07 090 085-V
Weight:
49 kg
Product information "Steerable trolley JL 9 K"
Advantages of the transport trolley JL 9 K
- Our standard models come with the highest quality castors.
- Reduced weight due to advanced construction of load cassettes.
- All transport trolleys are ready for use: the steerable transport trolley is fitted with a ball bearing supported turntable and a handlebar.
- Non-marking support wheels.
- The K-series towing bars are also available with a removable handle. The removable handle is also available as a re-fitting set.
- Inspected according to technical regulation ANSI ⁄ ASME (USA)

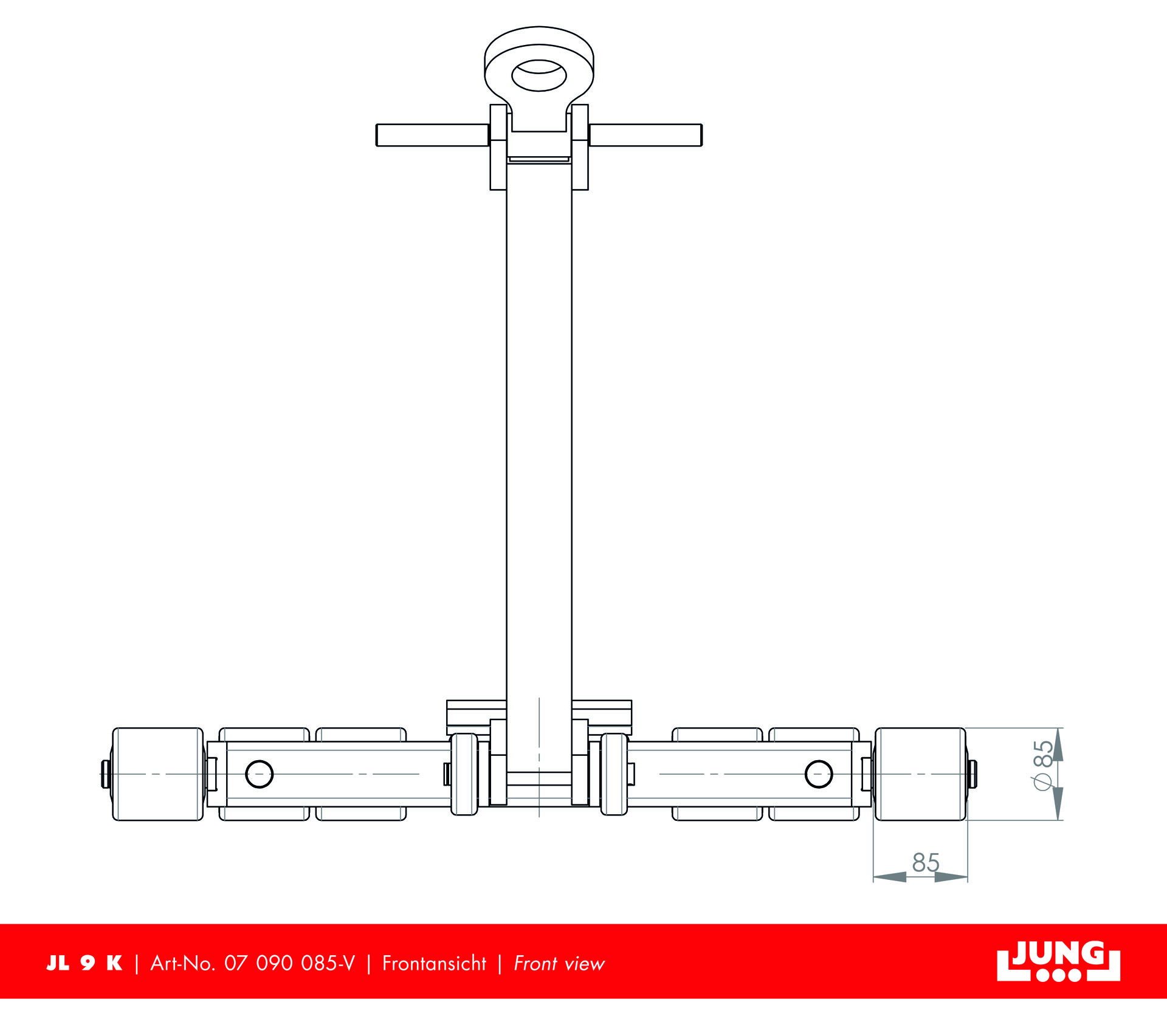

| Castor dimensions (Ø x l mm): | 85 x 85 |
|---|---|

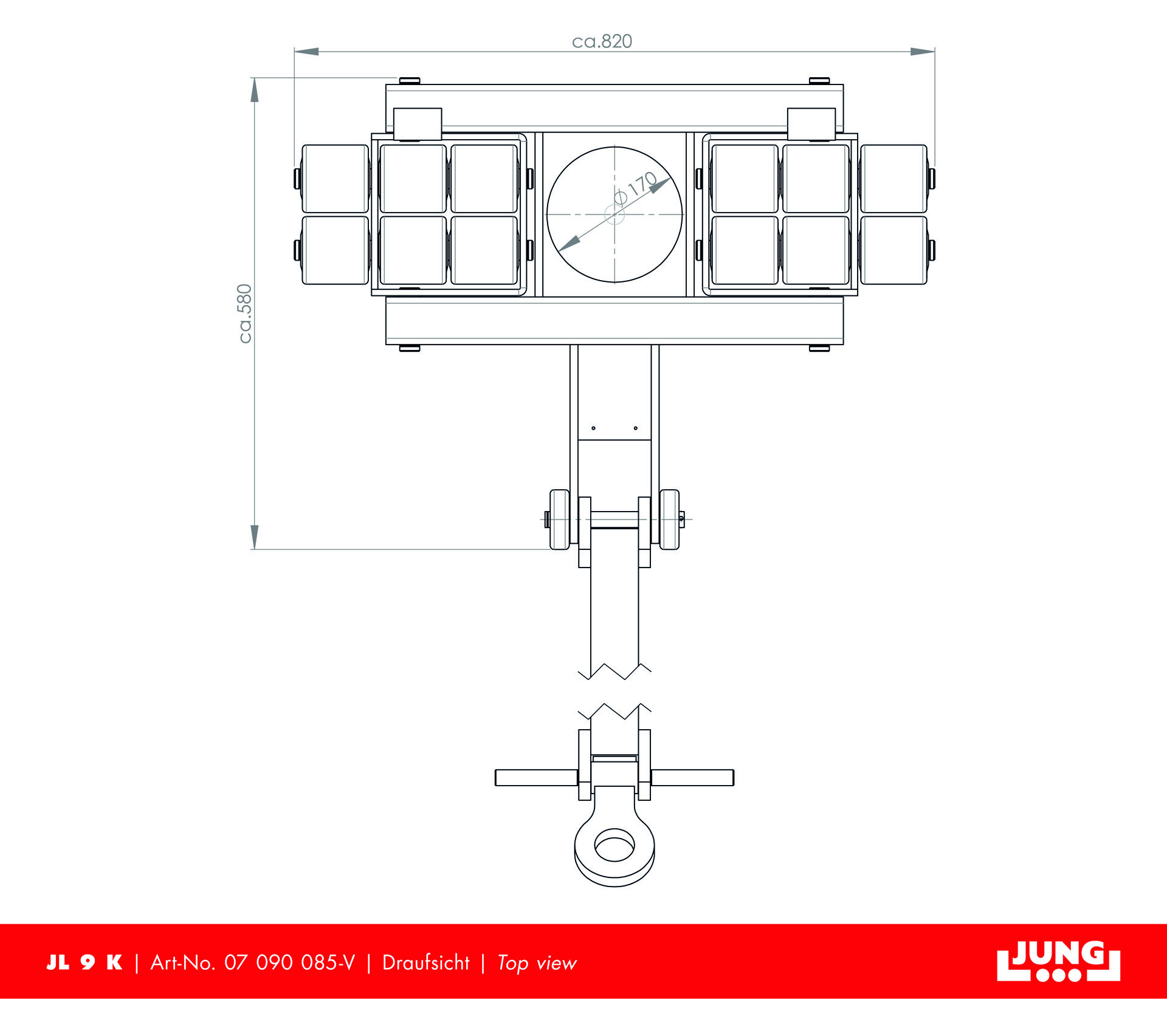

| Dimensions steerable (mm): | 580 x 820 |

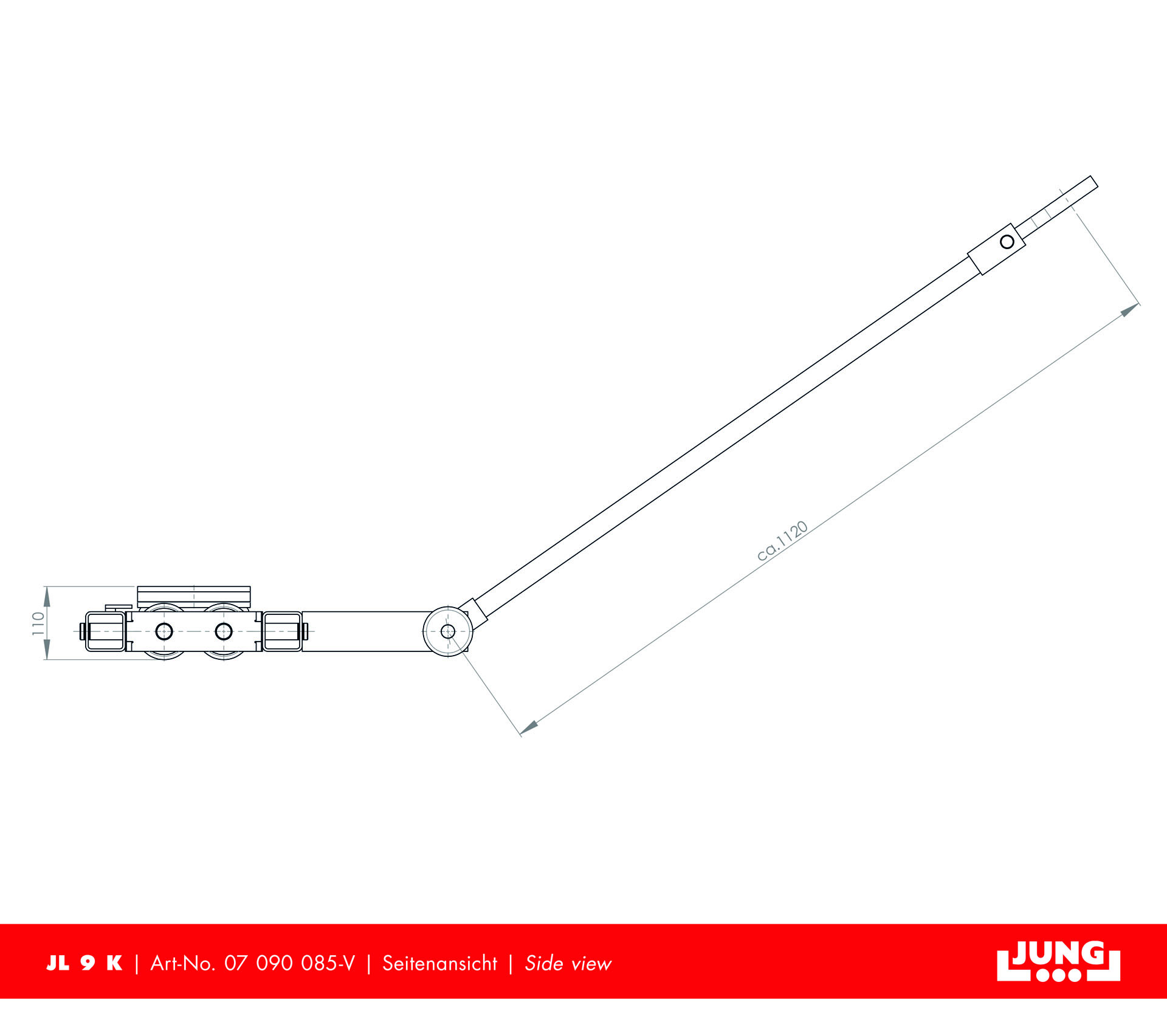

| Handlebar with pulling eye (mm): | 1 210 |
| Height (mm): | 110 |
| Load capacity (t): | 9 |
| Number of castors (Pieces): | 12 |
| Supporting surface of turnable Ø (mm): | 170 |
| Weight JUWAthan®plus (kg): | 54 |
Additional Products
Adjustable trolley JFB 9 K
08 091 085-V
Load capacity: 2 x 4,5 t (in a set 18 t*)
Height: 110 mm
*)Set consisting of JLB 9 K + JFB 9 K
Height: 110 mm
*)Set consisting of JLB 9 K + JFB 9 K
Price on request

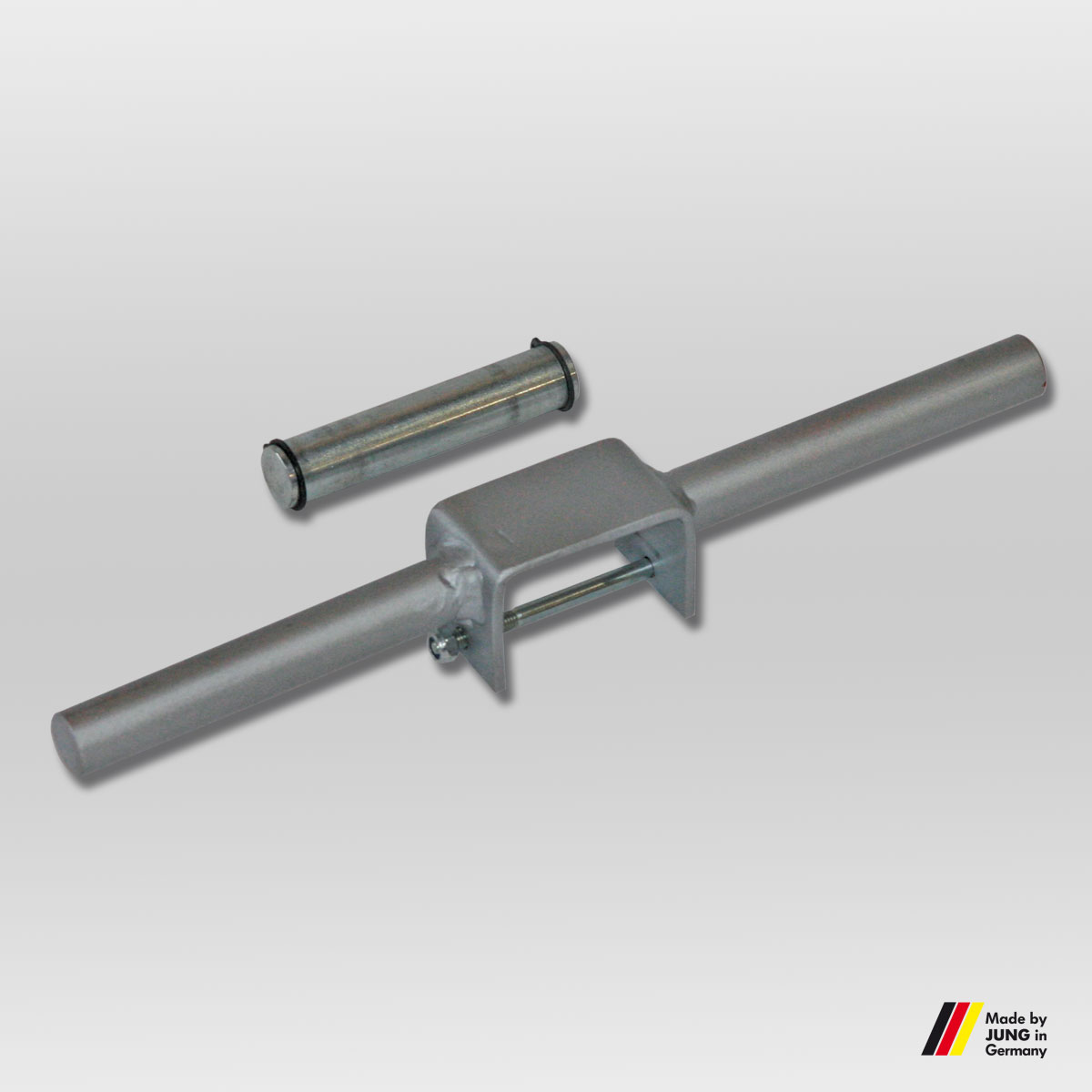

Towing bar accessory removable handle
92 090 300-B
Pulling handle
Suitable for K-Series
Suitable for K-Series
Price on request

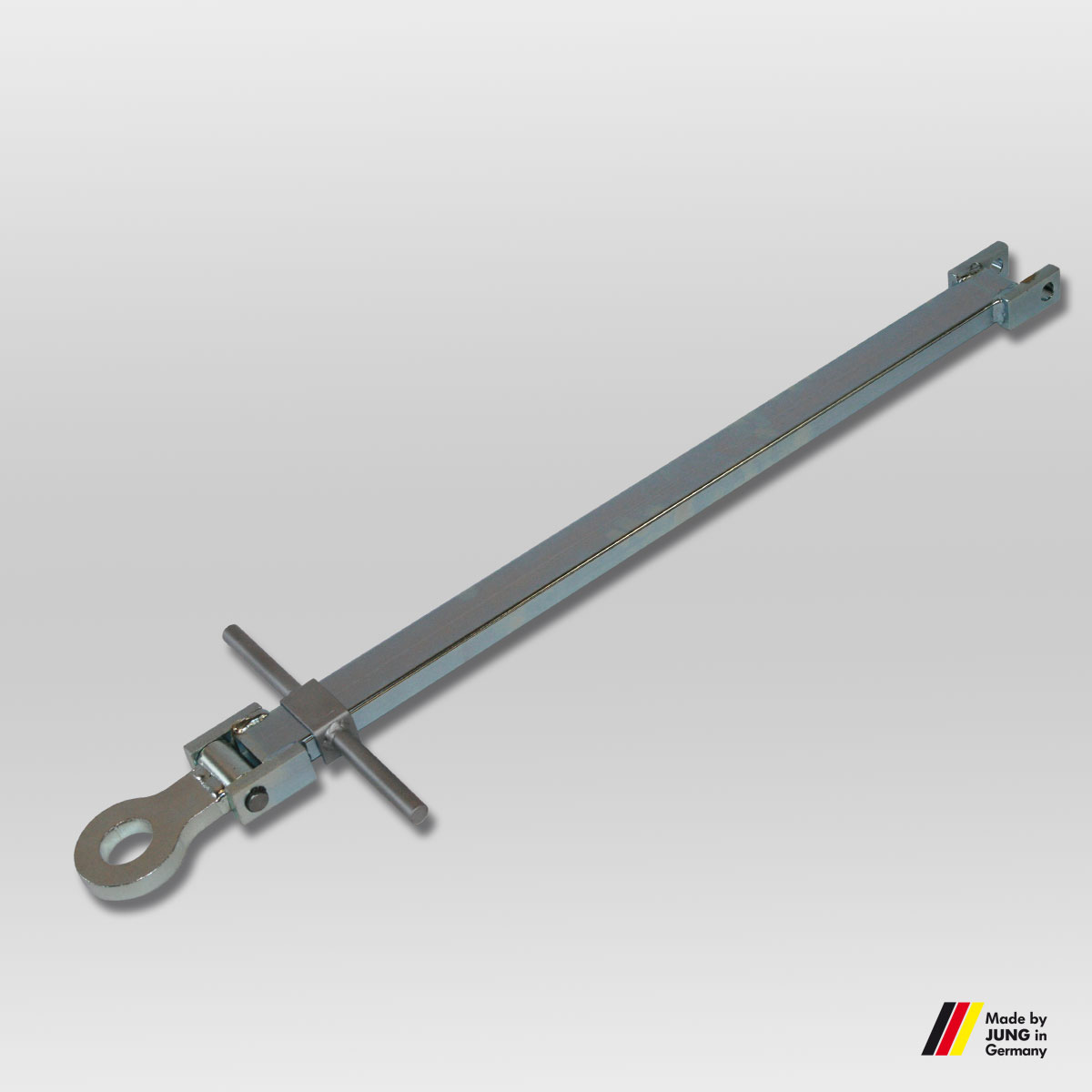

Towing bar complete with removable handle series K
92 010 122-B
Pulling handle
suitable for JLB 6 K - JL 14 K
suitable for JLB 6 K - JL 14 K
Price on request
