Container trolley JTLB 14 K Weld-on cone
For transporting containers - the tandem trolleys JTLB 14 K WOC with form-fitting-hold weld-on-cone for loads up to 14 t.
Load capacity: 14 t (in a set 28 t*)
Height: 170 mm
ISO-length: 2260 mm
*) Set consisting of JTLB 14 K WOC + JFB 14 K WOC
Height: 170 mm
ISO-length: 2260 mm
*) Set consisting of JTLB 14 K WOC + JFB 14 K WOC
Product number:
12 121 085-WZ
Weight:
104 kg
Product information "Container trolley JTLB 14 K Weld-on cone"
Advantages of the container trolleys JTLB 14 K WOC with Weld-on Cone
- Safe transport of containers.
- Low height for moving containers low to the ground.
- Form-fitting-hold (Weld-on Cone System) between the trolley and the containers.
- Compatible with all ISO-containers.
- "Weld-on Cone“ version for indoor container transport on smooth floors includes turntables fitted with cones and 2-parts container-wide connecting bars fixed length 2.26 m / 89 inches; including a pulling handle with towing eye.

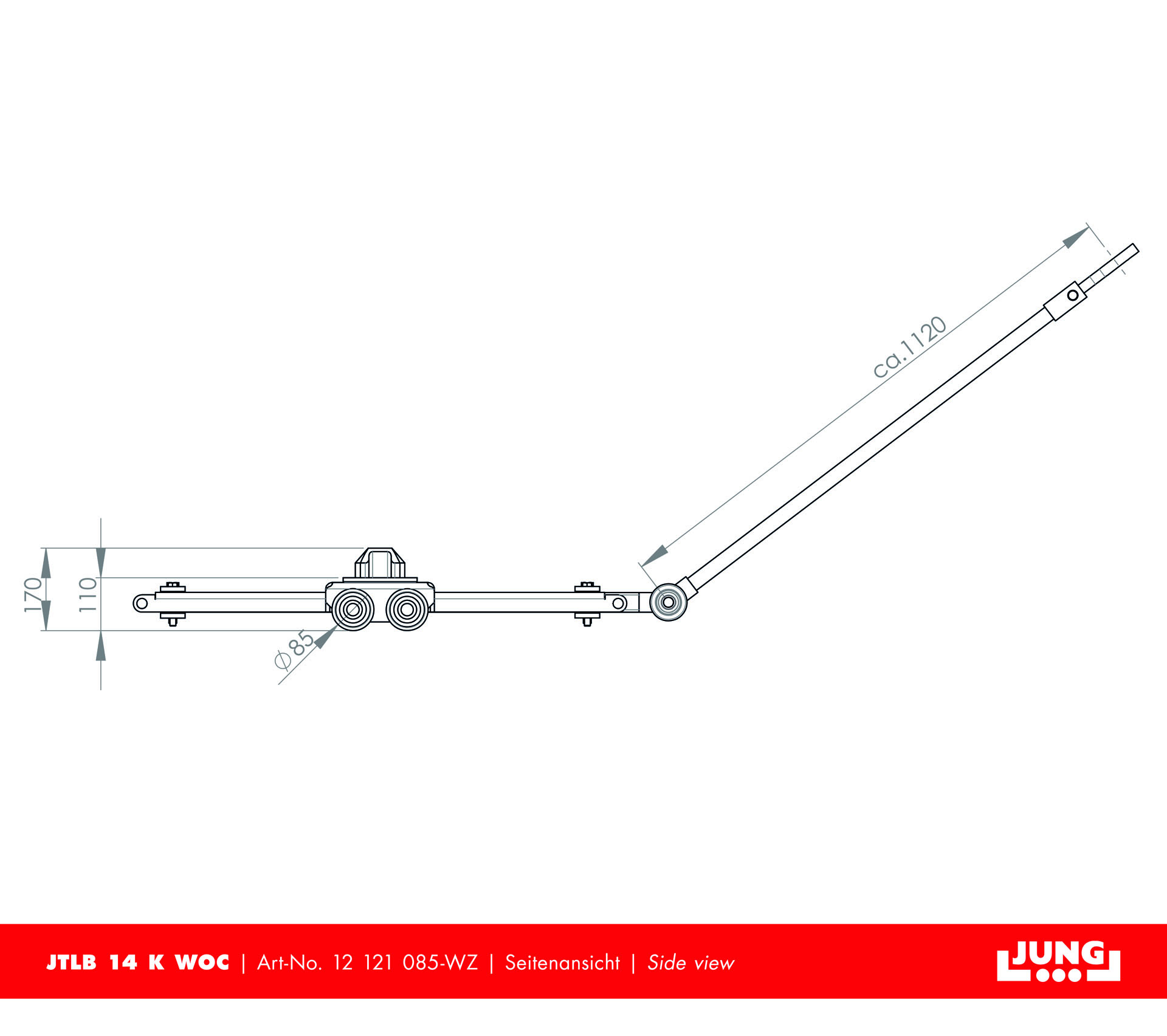

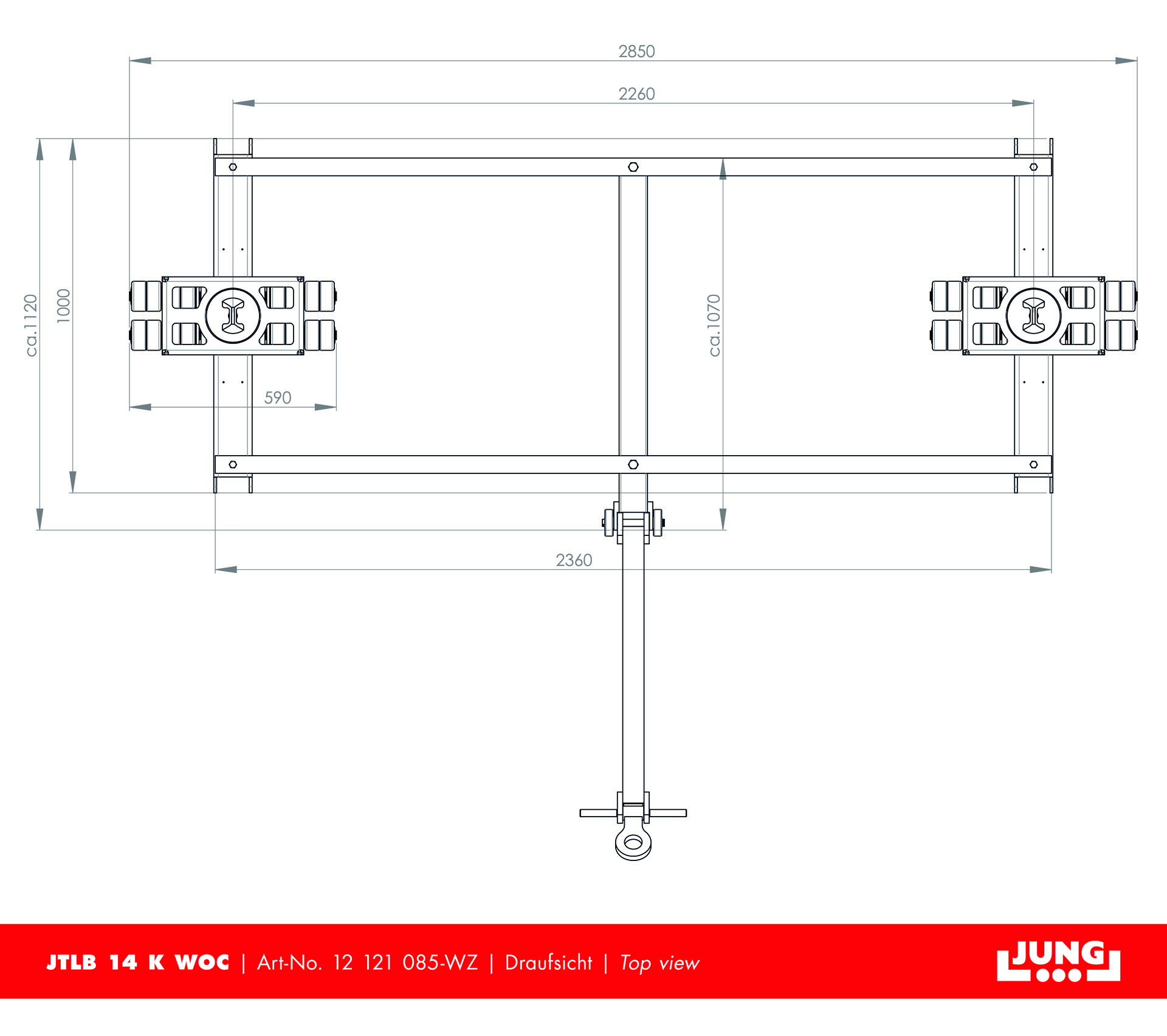

| Castor dimensions (Ø x l mm): | 85 x 85 |
|---|---|
| Dimensions steerable (mm): | 1 120 x 2 850 |
| Handlebar with pulling eye (mm): | 1 210 |
| Height (mm): | 110 |
| ISO-length (mm): | 2 260 |
| Load capacity (t): | 14 |
| Number of twin castors (pcs.): | 16 |
| Supporting surface of turnable Ø (mm): | 150 |
| Total height (mm): | 170 |
| Weight Professional (kg): | 104 |
