JUNG Hebe- und Transporttechnik GmbH
Container trolley JFB 30 G Twistlock
For transporting containers - the tandem trolleys JFB 30 G TL with twistlock for loads up to 30 t.
Load capacity: 30 t (in a set 60 t*)
Height: 215 mm
ISO-length: 2260 mm
*) Set consisting of JTL 30 G TL + JFB 30 G TL
Height: 215 mm
ISO-length: 2260 mm
*) Set consisting of JTL 30 G TL + JFB 30 G TL
Product number:
10 302 140-TL
Weight:
113 kg
Product information "Container trolley JFB 30 G Twistlock"
Benefits of the tandem trolleys JFB 30 G TL with Twistlock
- Safe transport of containers.
- Low height for moving containers low to the ground.
- Lock-to-hold mechanism between the trolley and the containers (Twistlock).
- Compatible with all ISO-containers.
- “Twistlock” version for outdoor transport for use on pavement includes turntables fitted with “Twistlock” to secure containers to transport trolleys. Including 2-parts connecting bars fixed length 2.26 m / 89 inch and pulling handle with towing eye.
| Cassette dimensions (mm): | 460 x 400 |
|---|---|
| Castor dimensions (Ø x l mm): | 140 x 59 |
| Dimensions straight-line (mm): | 460 x 3 000 |

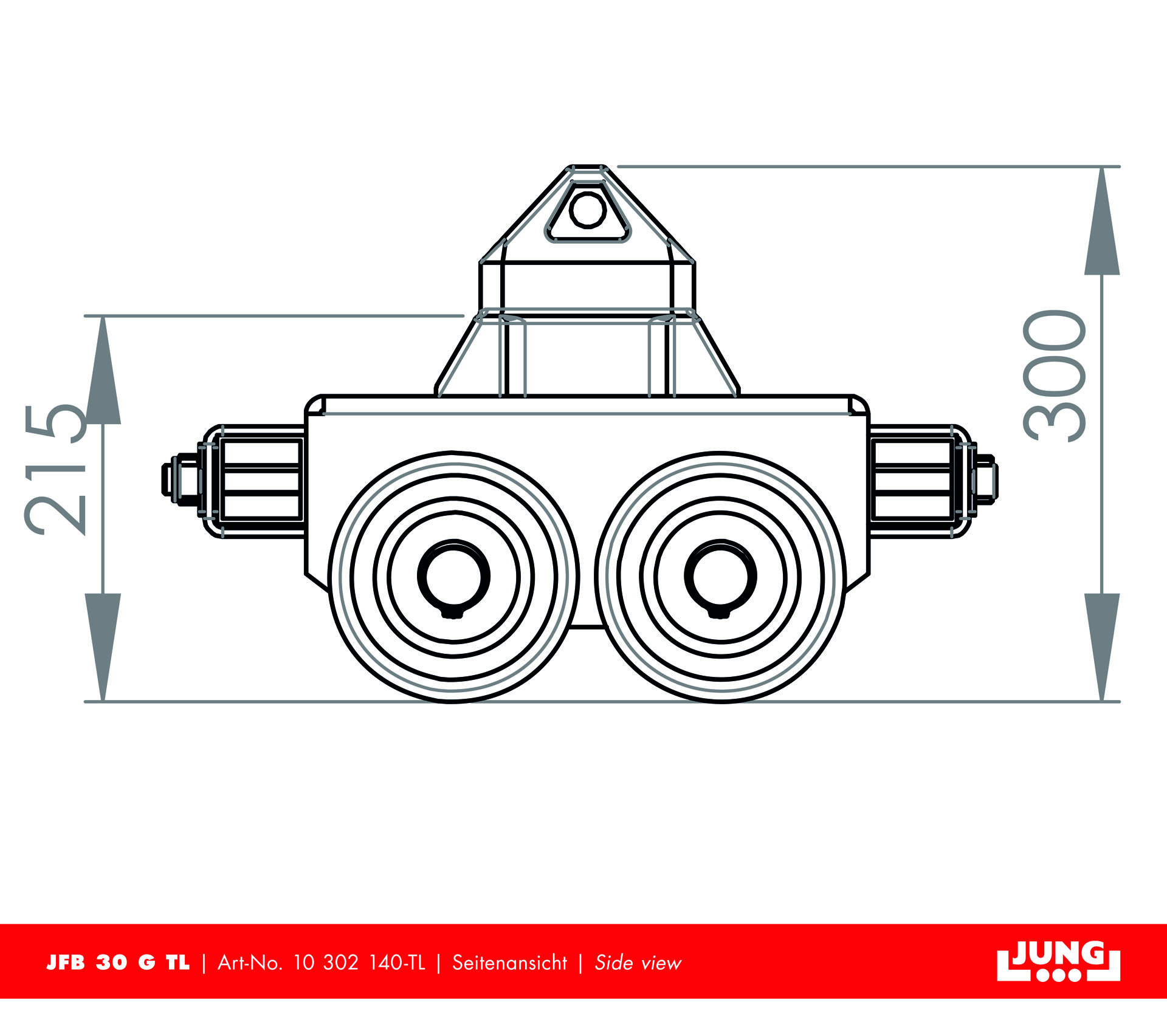

| Height (mm): | 215 |

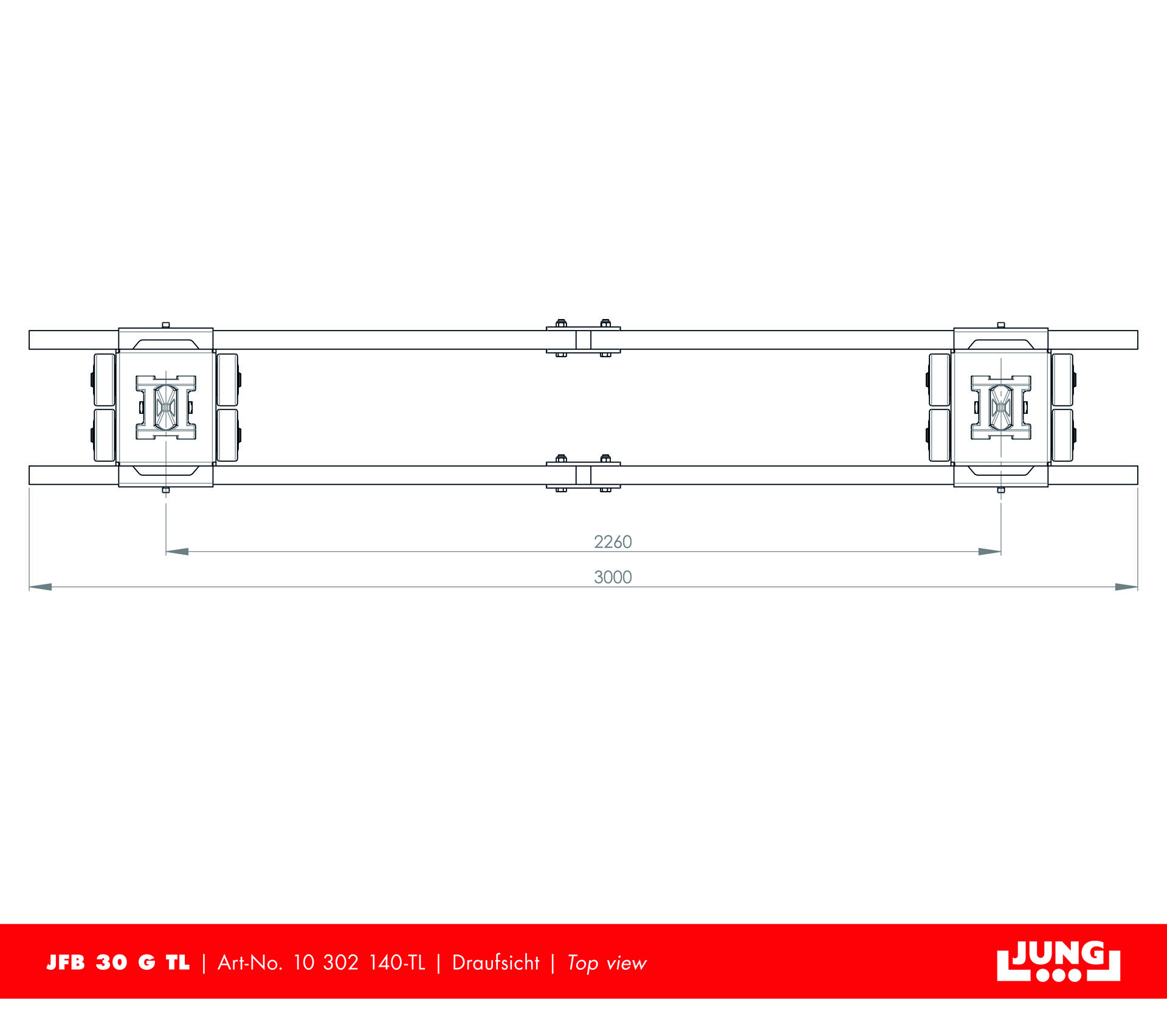

| ISO-length (mm): | 2 260 |
| Load capacity (t): | 2 x 15 |
| Number of castors (Pieces): | 2 x 12 |
| Suppoting surface per cassette (mm): | 220 x 200 |
| Total height (mm): | 300 |
