JUNG Hebe- und Transporttechnik GmbH
Transport trolley JFB 3 K
High-performance transport trolley from JUNG. The JFB 3 K trolley transports loads up to 3 t with an installation height of 110 mm.
Load capacity: 2 x 1,5 t (in a set 6t*)
Height: 110 mm
Height: 110 mm
*)Set consisting of JLB 3 K + JFB 3 K
Product number:
08 031 085-V
Weight:
11 kg
Product information "Transport trolley JFB 3 K"
Advantages of the transport trolley JFB 3 K
- Equipped with highest quality castors as standard.
- Reduced weight due to advanced construction of load cassettes.
- All transport trolleys are ready for use: The adjustable-width transport trolley consists of two transport units and connecting bar.
- Inspected according to technical regulation ANSI ⁄ ASME (USA)
With an installation height of only 110 mm, the armoured castors fit under almost any load. Whether equipped with a practical handle or additionally with a drawbar eye, the trolleys allow easy manoeuvring. Ball-bearing runners are used, which have a low-wear coating - the JUWAthan plus coating.

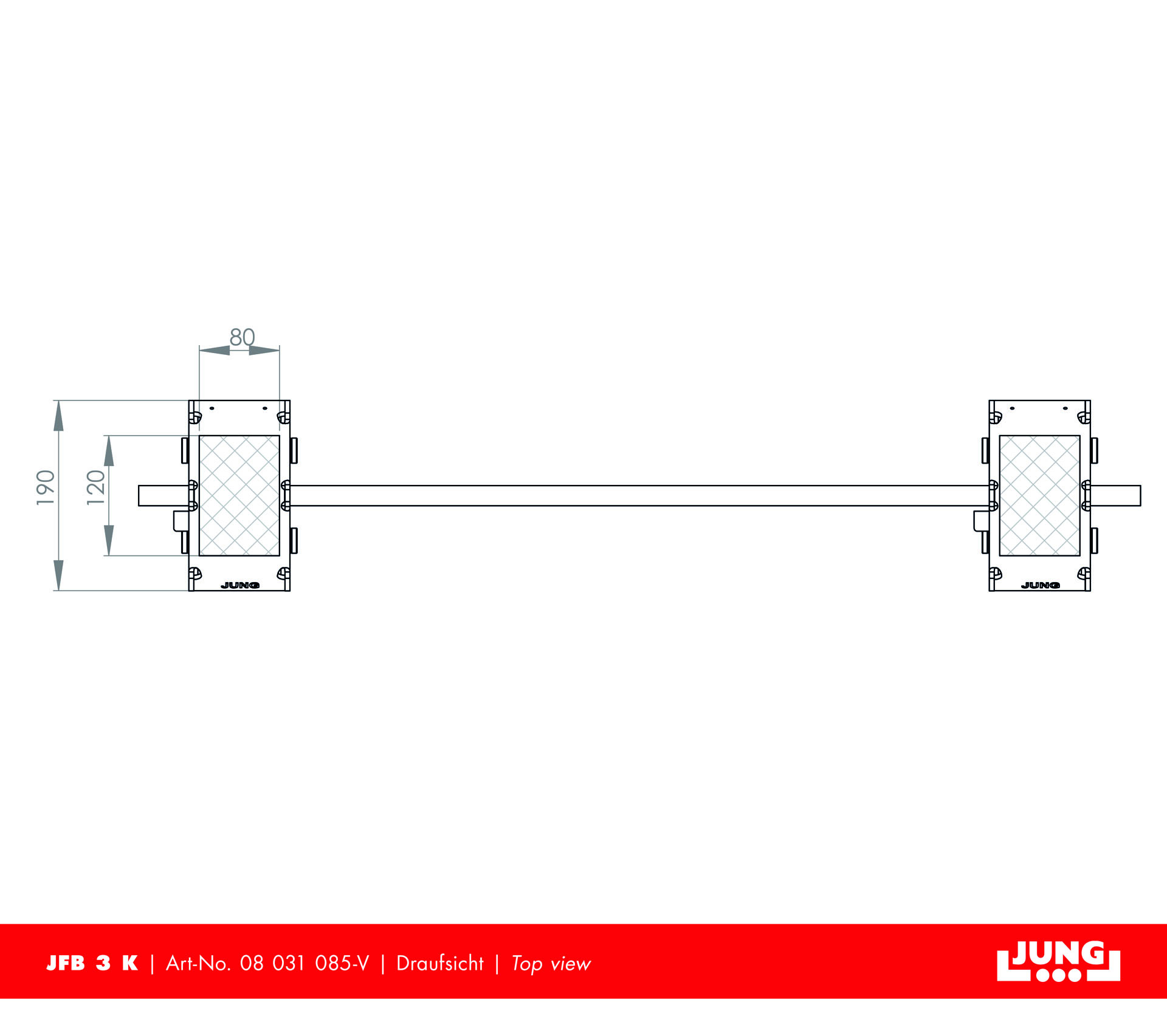

| Cassette dimensions (mm): | 190 x 115 |
|---|---|

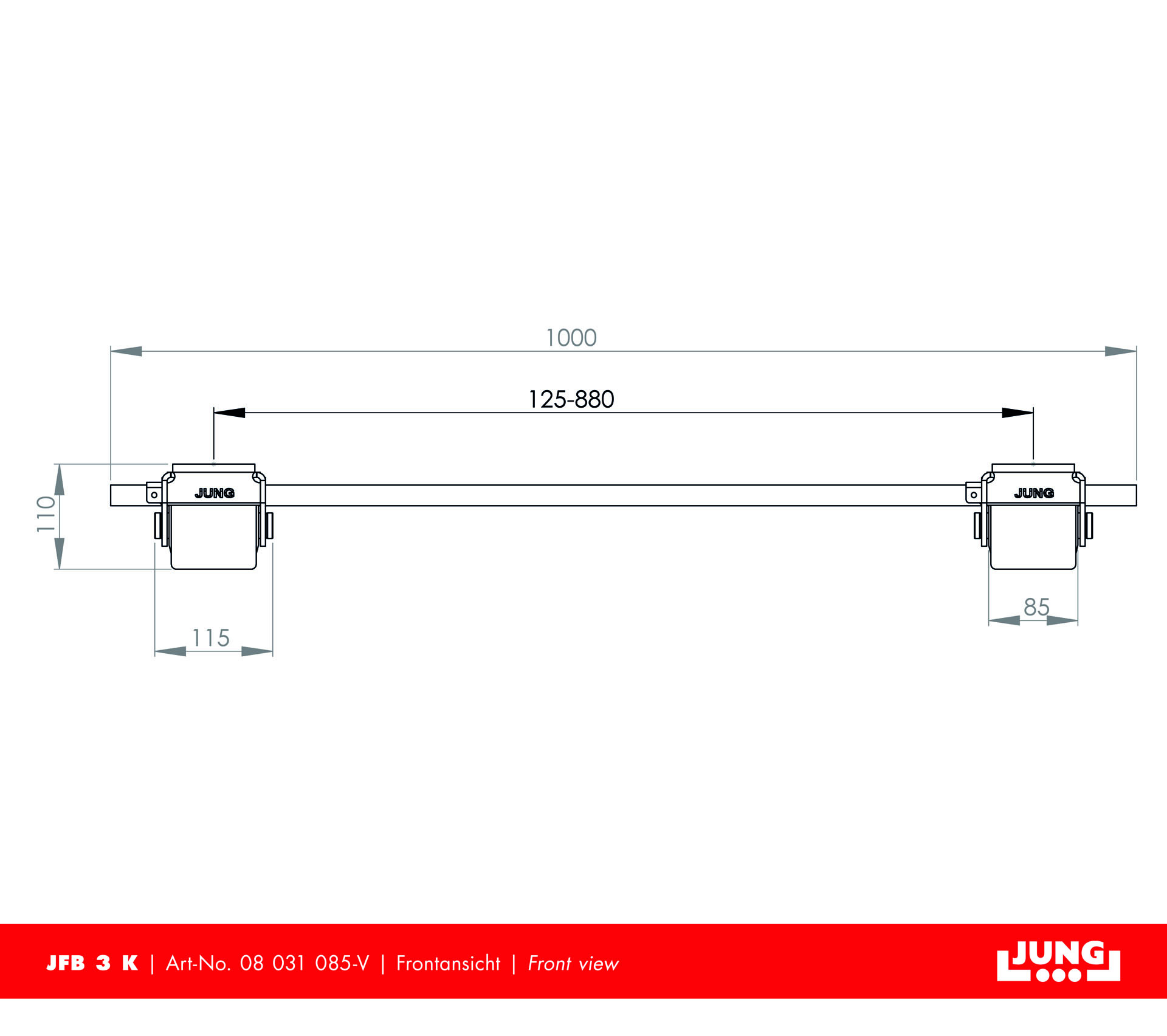

| Cassettes adjustable from - to (mm): | 125 - 880 |

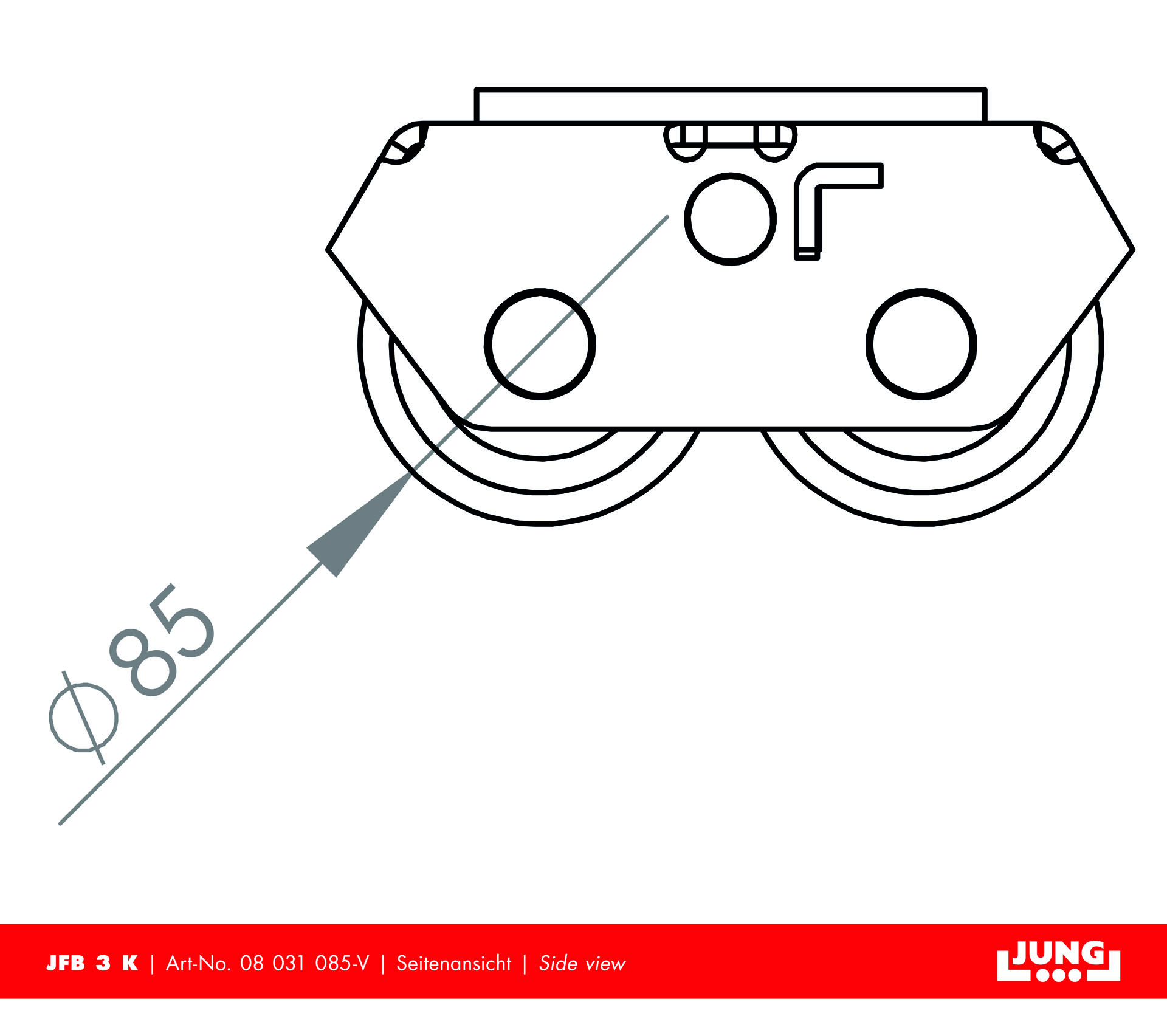

| Castor dimensions (Ø x l mm): | 85 x 85 |
| Connecting bar with joint (mm): | 1 000 |
| Height (mm): | 110 |
| Load capacity (suitable): | 6 - 10 t |
| Load capacity (t): | 3 |
| Number of castors (Pieces): | 2 x 2 |
| Suppoting surface per cassette (mm): | 120 x 80 |
| Weight JUWAthan®plus (kg): | 11 |
Additional Products
Steerable trolley JLB 3 K
*)Set consisting of JLB 3 K + JFB 3 K
07 031 085-V
Load capacity: 2 x 1,5 t (in a set 6t*)
Height: 110 mm*)Set consisting of JLB 3 K + JFB 3 K
Price on request
