JUNG Hebe- und Transporttechnik GmbH
Revolving transport trolley JKB 2 K
Agile and powerful revolving transport trolley from JUNG. The JKB 2 K transport trolley transports loads up to 2 t with an installation height of 110 mm.

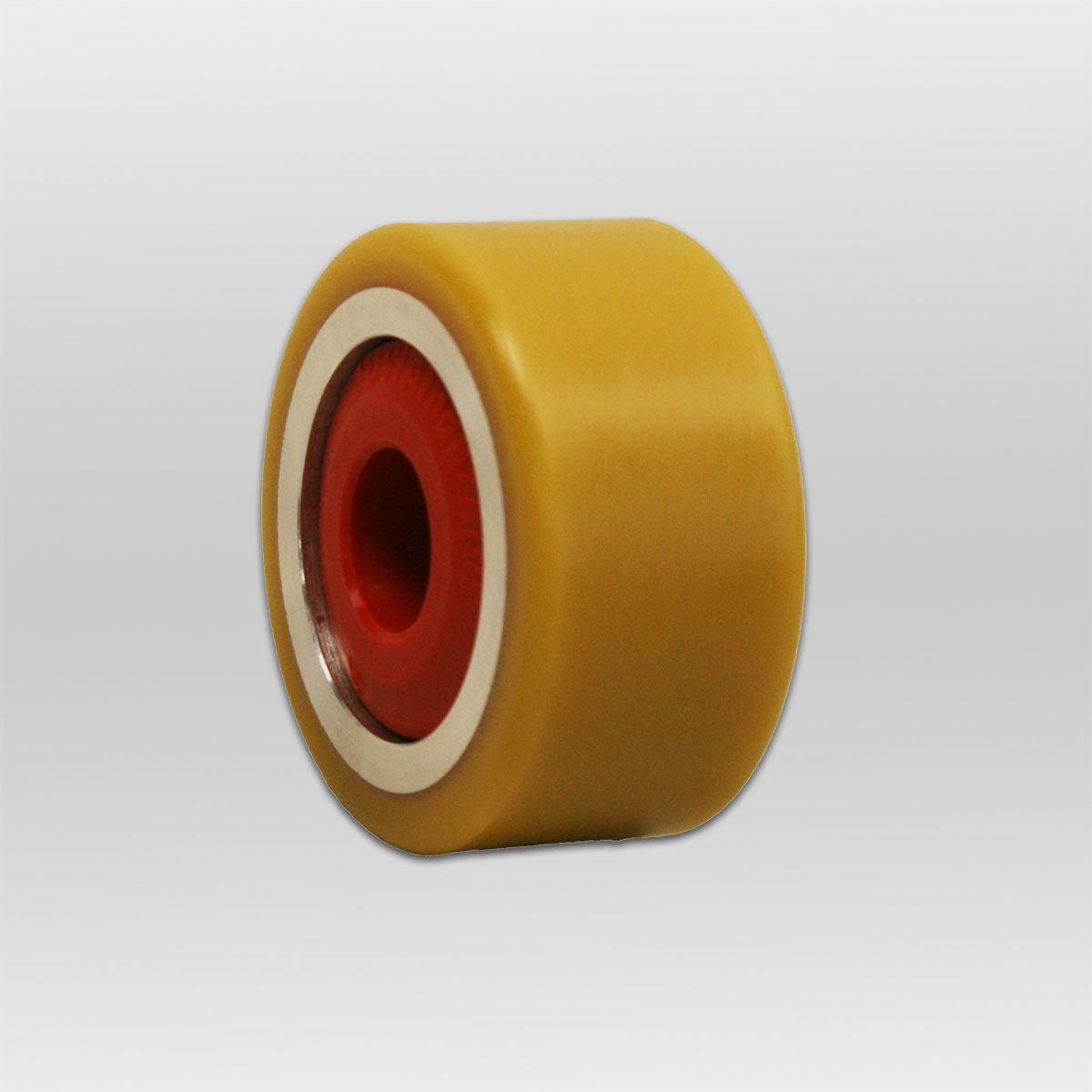

with JUWAthan castors
Load capacity: 2 t
Height: 110 mm
Load capacity: 2 t
Height: 110 mm
Product number:
14 020 085-Vu
Weight:
20 kg
Product information "Revolving transport trolley JKB 2 K"
Advantages of the revolving transport trolley JKB 2 K
- Optional connecting bars can be fixed without tools by clamping down on adapter.
- High load capacity at low weight.
- Bearing supported swiveling castors allow 360° maneuverability.
- The JKB 2 rotation transport trolley, with an installation height of only 110 mm*, is suitable for all steering and transport trolleys of the K series.
- All products are also available in a set of two with price advantage.
- Unrivalled: The double roller system reduces rolling and turning resistance to a minimum.
- In addition, all the rotational trolleys have a platform center hole to allow attachement to the load.
- For choosing the adequate revolving trolley we recommend a load of two-third of the maximum capacity. This will be the most advantageous compromise between payload, ergonomics and handling of the devices.
- Pulling handle and connecting bars available as accesories.
It is recommended to select a payload of approximately 2/3 of the maximum load capacity to achieve the best compromise between payload, ergonomics, and handling of the equipment.
*) Due to technical changes, there may be tolerances of up to + 4.5 mm in the installation height since 2014.
*) Due to technical changes, there may be tolerances of up to + 4.5 mm in the installation height since 2014.
Cassette dimensions (mm): | 528 x 495 |
---|---|
Castor dimensions (Ø x l mm): | 85 x 43 |
Consist of: | 1 x JKB 2 K |
Height (mm): | 110 |
Load capacity (suitable): | 0 - 5 t |
Load capacity (t): | 2 |
Number of castors (Pieces): | 6 |
Suppoting surface per cassette (mm): | 150 |
Weight JUWAthan® (kg): | 20 |
