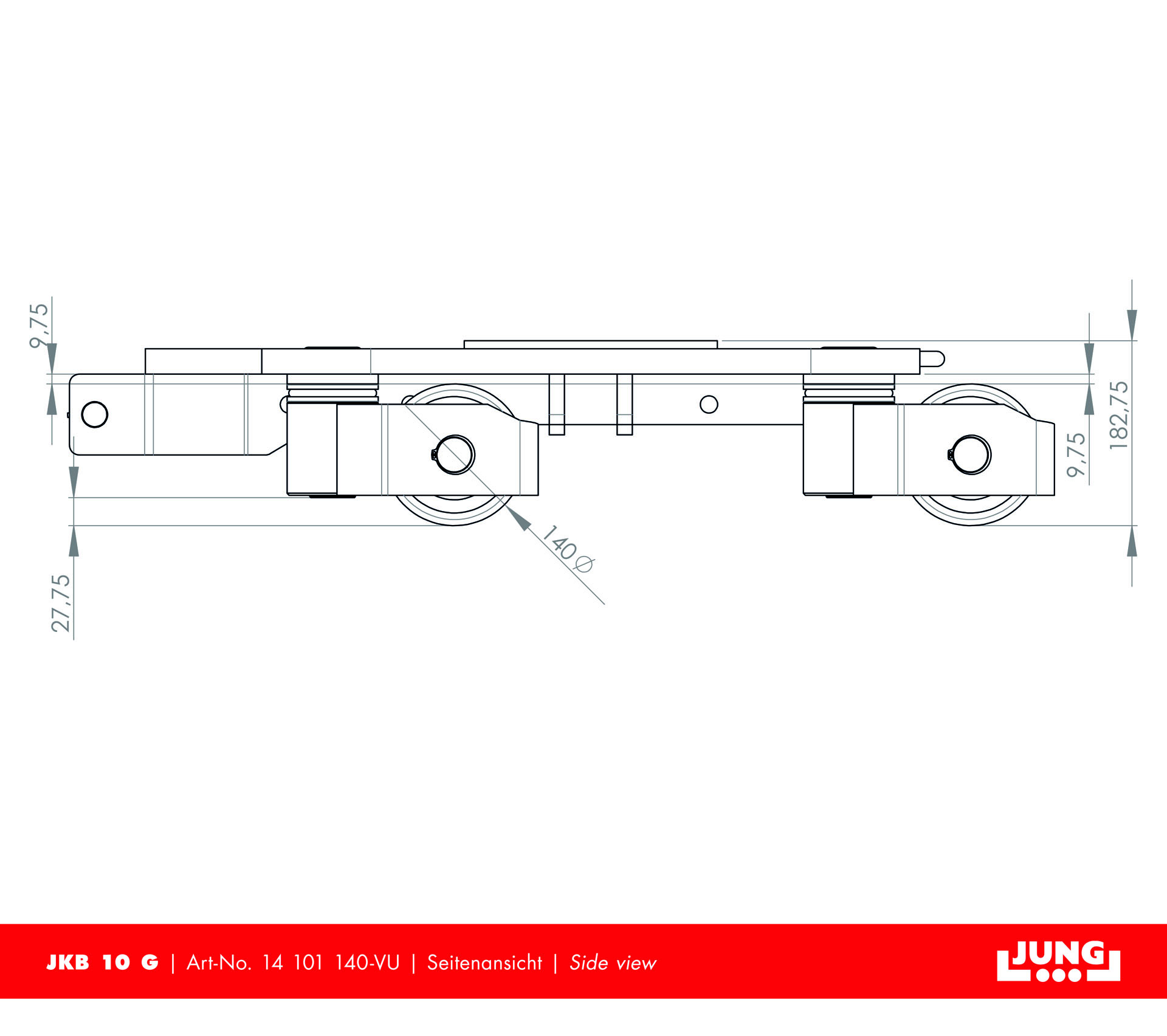

Revolving transport trolley JKB 10 G Set

Agile and powerful revolving transport trolley from JUNG. The JKB 10 G transport trolley set transports loads up to 20 t with an installation height of 180 mm.

with JUWAthan castors
Load capacity: 2 x 10 t
Height: 180 mm

Price on request

Prices incl. VAT plus shipping costs

Available

Request an offer

PDF-Datasheet

Product number: 14 101 140-DVu

Weight: 280 kg

Product information "Revolving transport trolley JKB 10 G Set "

Advantages of the revolving transport trolley set JKB 10 G with JUWAthan castors

High load capacity at low weight.
Bearing supported swiveling castors allow 360° maneuverability.
JKB 10 has same hight as transport trolleys series G
All products are also available in a set of two with price advantage.
Unrivalled: The narrow castors reduce rolling and turning resistance to a minimum.
In addition, all the rotational trolleys have a platform center hole to allow attachement to the load.
For choosing the adequate revolving trolley we recommend a load of two-third of the maximum capacity. This will be the most advantageous compromise between payload, ergonomics and handling of the devices.

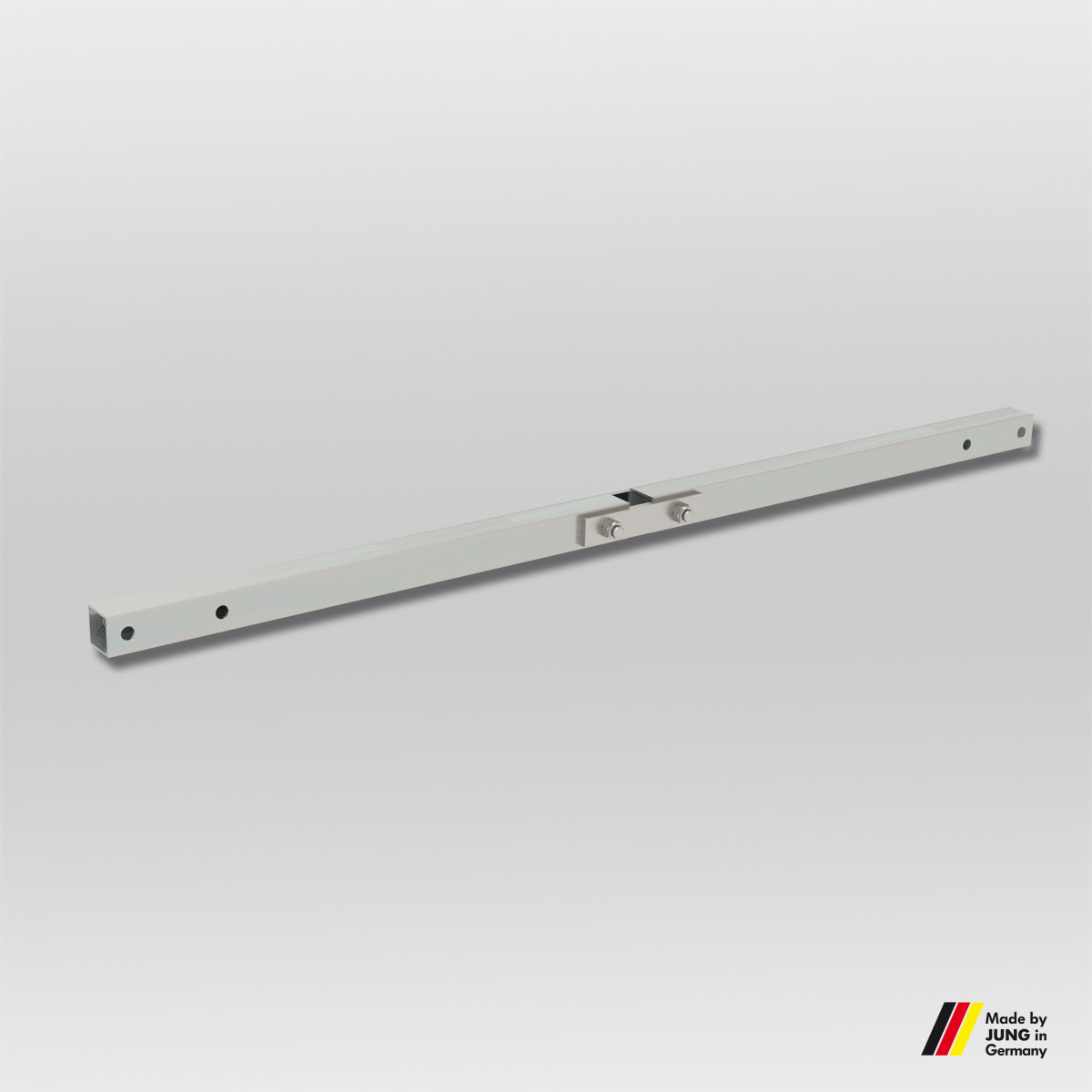

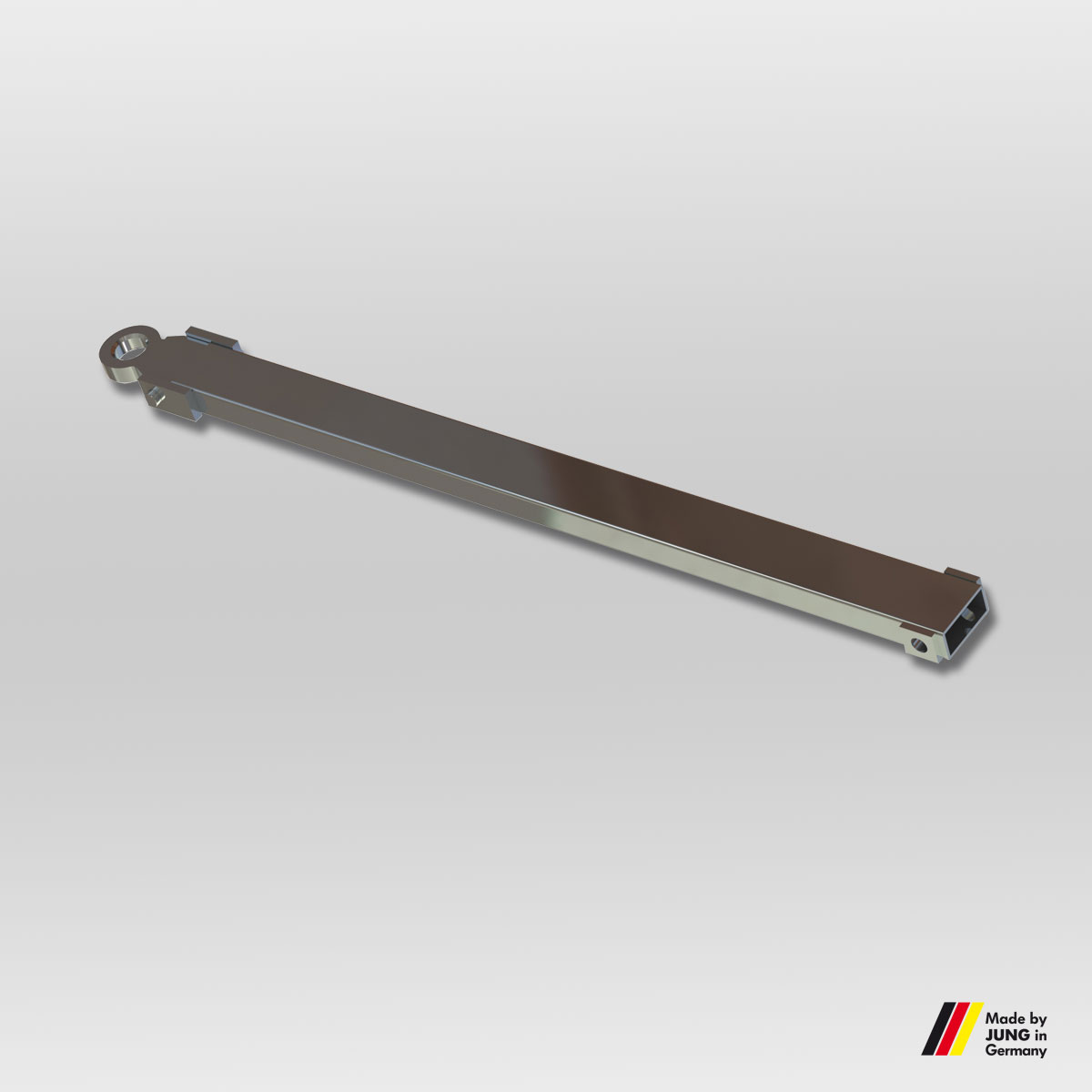

Pulling handle and connecting bars available as accesories.
Inspected according to technical regulation ANSI ⁄ ASME (USA)

It is recommended to select a payload of approximately 2/3 of the maximum load capacity to achieve the best compromise between payload, ergonomics, and handling of the equipment.

Cassette dimensions (mm):	975 x 665
Castor dimensions (Ø x l mm):	140 x 59
Consist of:	2 x JKB 10 G
Height (mm):	180
Load capacity (t):	20
Number of castors (Pieces):	2 x 8
Suppoting surface per cassette (mm):	250
Weight JUWAthan® (kg):	280
