Multi-purpose trolley JLF Set 15

Agile and powerful multi purpose transport trolley from JUNG. The JLF Set 12 transport trolley transports loads up to 15 t with an installation height of 150 mm.

Load capacity: 3 x 5 t
Height: 150 mm

Price on request

Prices incl. VAT plus shipping costs

Available

Request an offer

PDF-Datasheet

Product number: 16 150 085-D

Weight: 95 kg

Product information "Multi-purpose trolley JLF Set 15"

Qualities of the multi-purpose transport trolley JLF Set 15

The 15 t set includes: 3 x JLF5, 2 drawbars, and a connecting rod. The second drawbar is used for rear steering of the load being moved, allowing for very tight turning radii.
Combined leading swiveling castors with trailing rigid castors. Swiveling lead castorsmake steering easier by up to 80 %.
Ergonomic: reduces handling effort for user.
Better directional stability on long straight-line paths with trailing rigid castors.
Each trolley can be used for either steerable or straight-line movements.
Extreme maneuverable with thrust bearing supported, anti-slip turntable.
Trolleys can be used as steerable, adjustable or tandem trolley.
Ideal for transporting loads on slalom paths including 90° true-to-course straigh l ine,turning and sideways maneuvering.
Floor protective, non-marking coating.
Low profile. Low weight.
Included in set is an additional pulling handle for steering of rear-trailing trolleys for tighter turning radius.

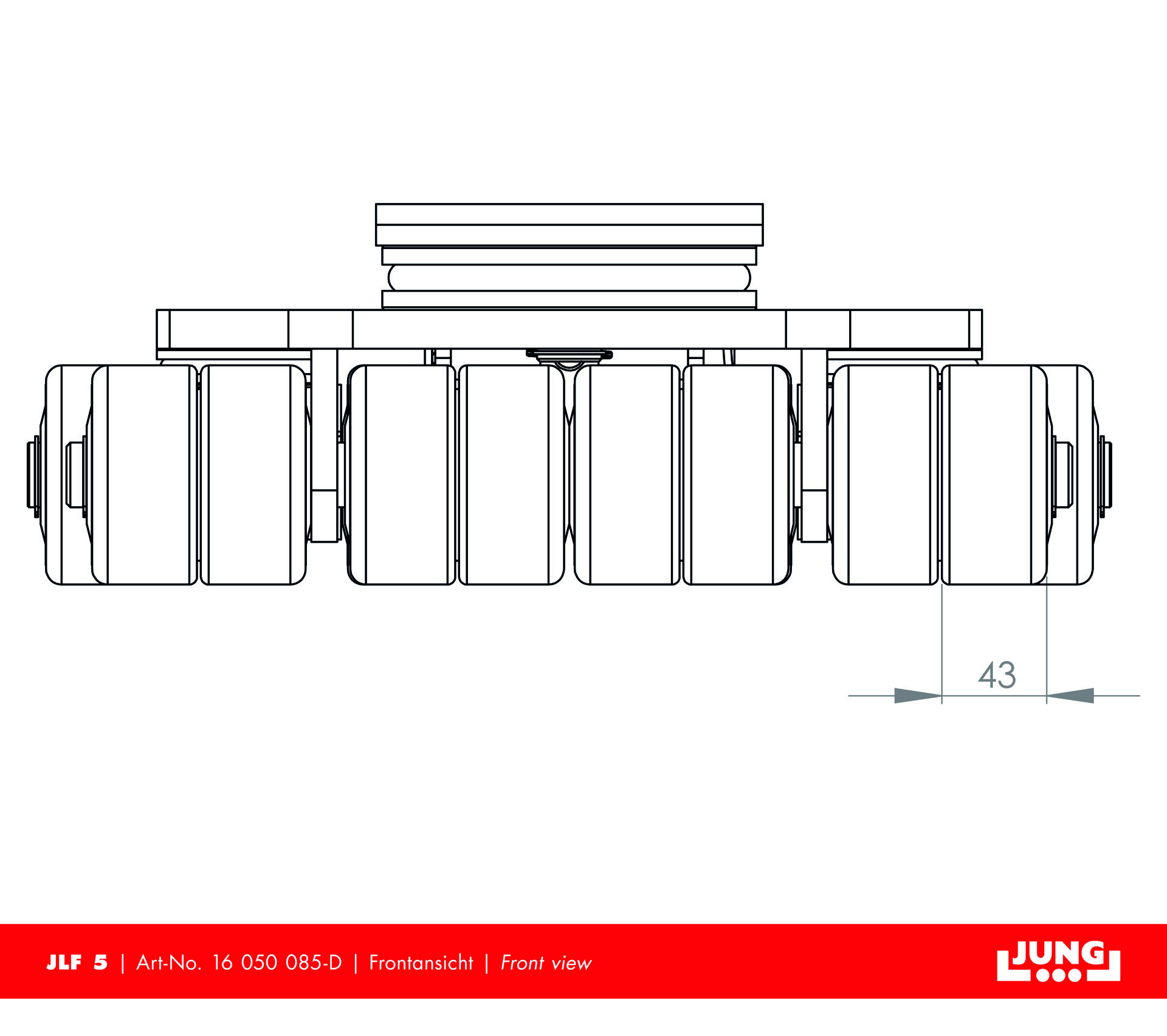

Castor dimensions (Ø x l mm):	85 x 43
Connecting bar Ø x L (mm):	20 x 1 200

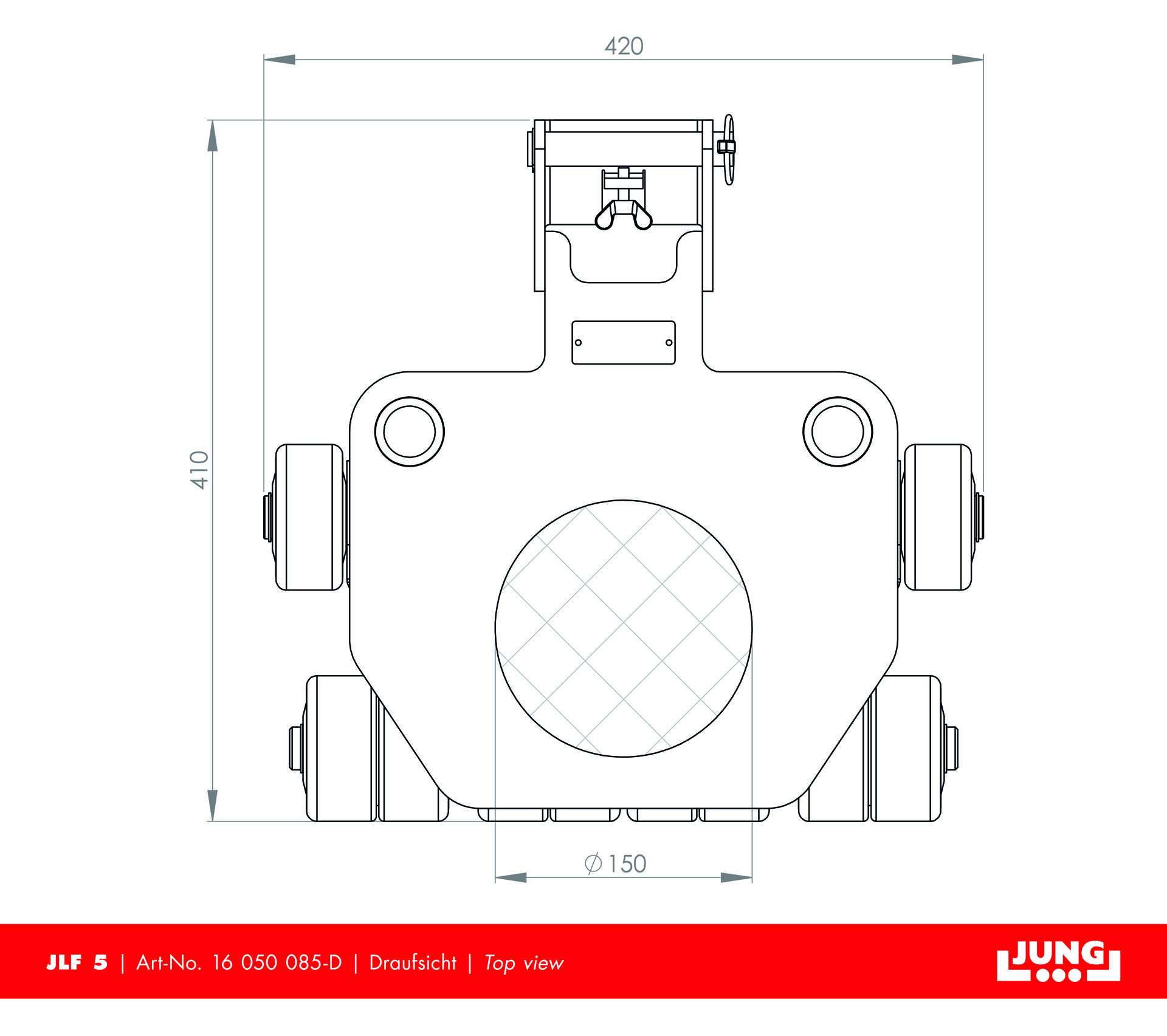

Dimensions (mm):	410 x 420
Handlebar with pulling eye (mm):	1 210

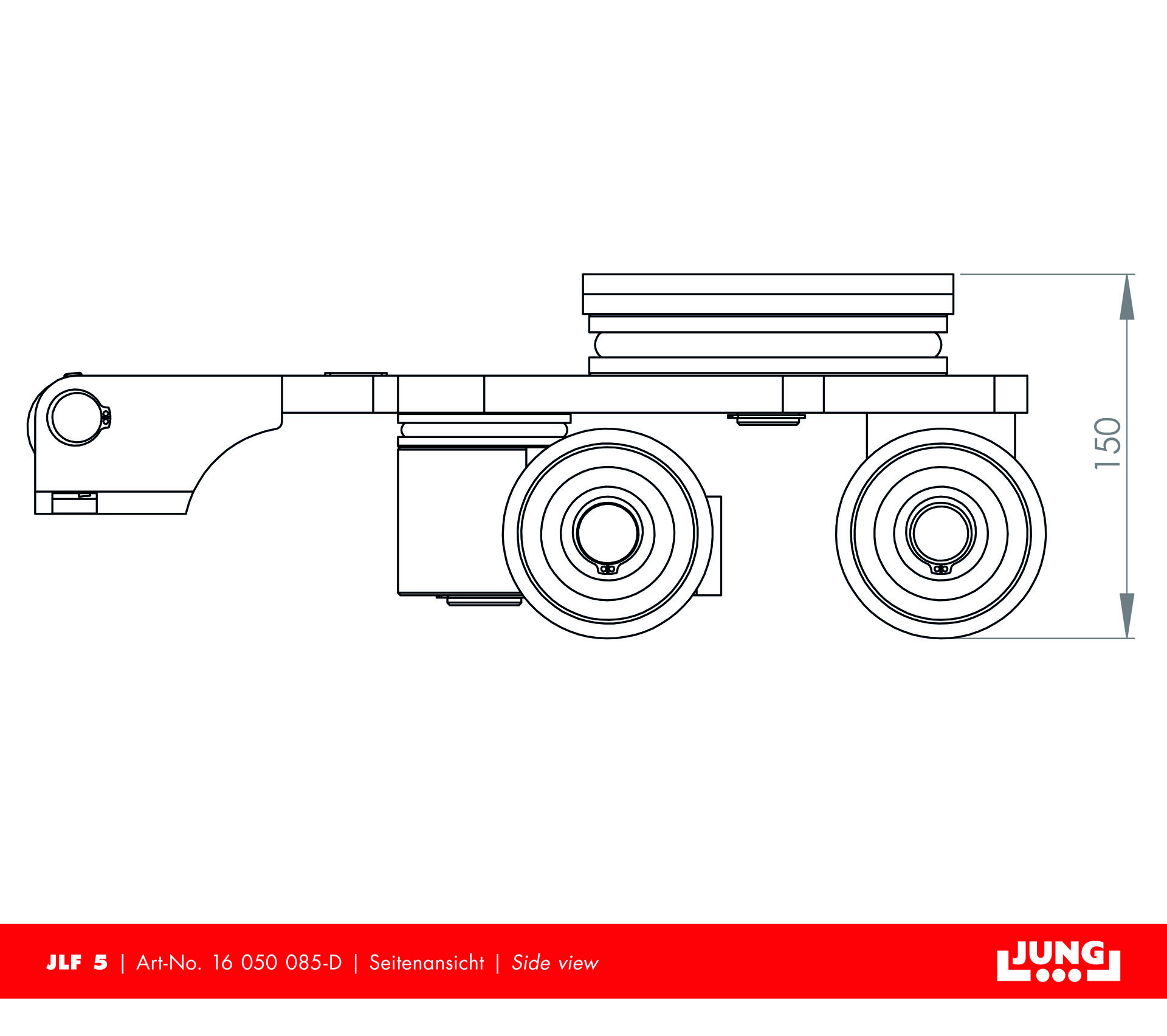

Height (mm):	150
Load capacity (suitable):	11 - 15 t
Load capacity (t):	15
Number of castors / twin castors (pcs.):	3 x 4/4
Supporting surface of turnable Ø (mm):	150
Weight JUWAthan®plus (kg):	102
