Multi-purpose trolley JLF 3,5

Agile and powerful multi purpose transport trolley from JUNG. The JLF 3,5 transport trolley transports loads up to 3,5 t with an installation height of 150 mm.

Load capacity: 3,5 t
Height: 150 mm

Price on request

Prices incl. VAT plus shipping costs

Available

Request an offer

PDF-Datasheet

Product number: 16 035 085-D

Weight: 25 kg

Product information "Multi-purpose trolley JLF 3,5"

Advantages of the multi-purpose transport trolley JLF 3,5

Combined leading swiveling castors with trailing rigid castors. Swiveling leadcastors make steering easier by up to 80 %.
Ergonomic: reduces handling effort for user.
Better directional stability on long straight-line paths with trailing rigid castors.
Each trolley can be used for either steerable or straight-line movements.
Extreme maneuverable with thrust bearing supported, anti-slip turntable.
Trolleys can be used as steerable, adjustable or tandem trolley.
Ideal for transporting loads on slalom paths including 90° true-to-course straightline, turning and sideways maneuvering.
Floor protective, non-marking coating.
Low profile. Low weight.

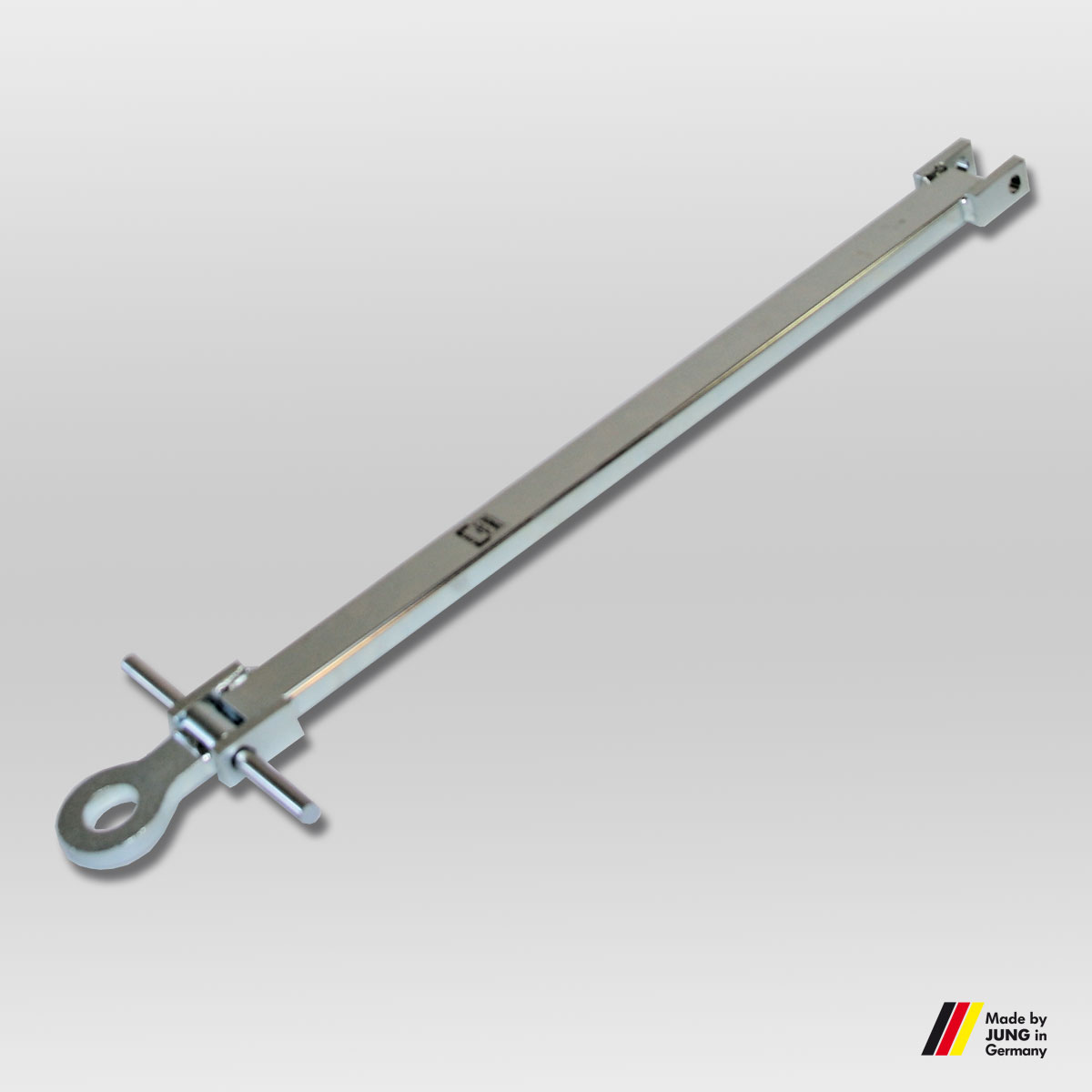

Included in set is an additional pulling handle for steering of rear-trailing trolleys for tighter turning radius.
Inspected according to technical regulation ANSI ⁄ ASME (USA)

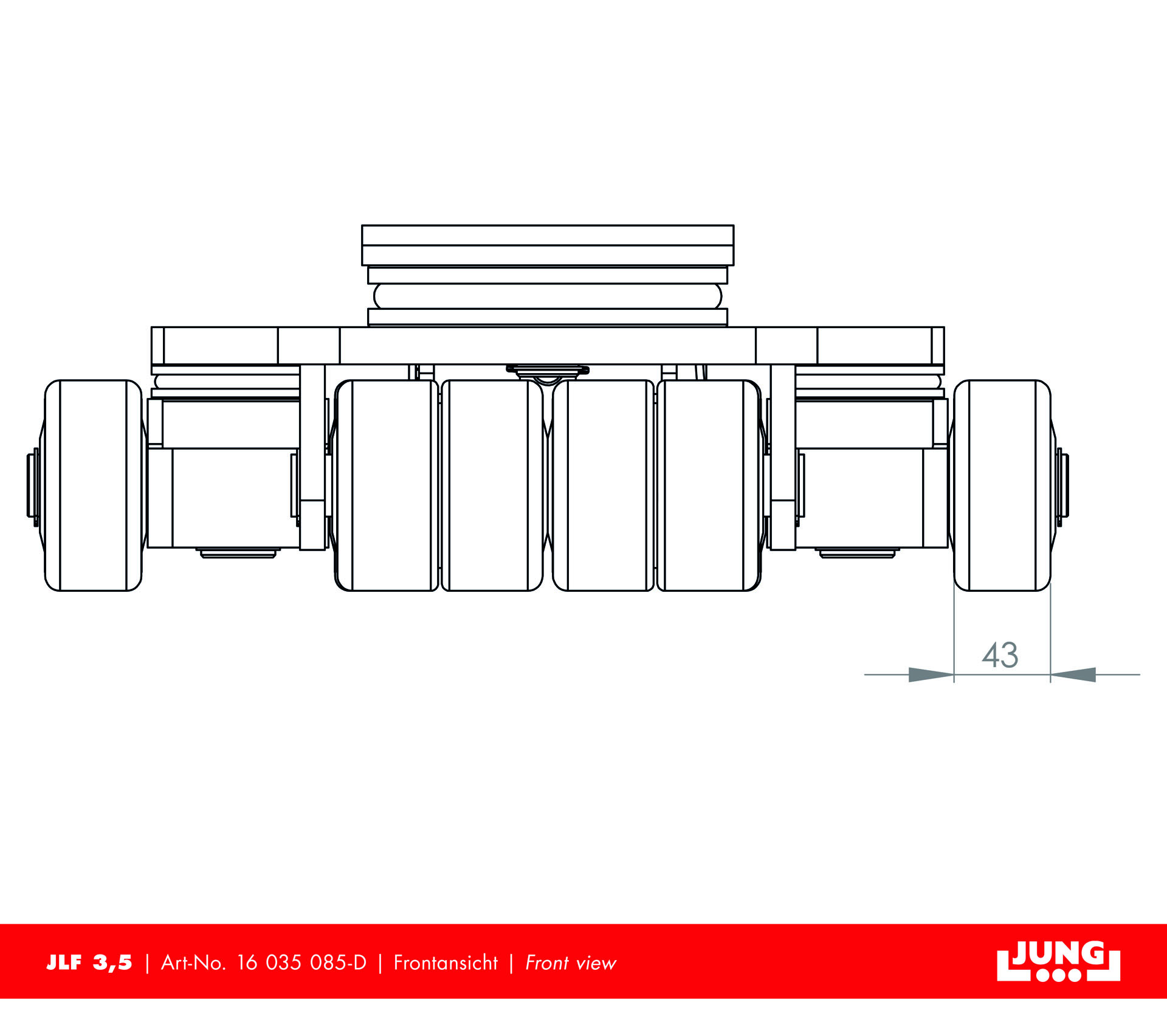

Castor dimensions (Ø x l mm):	85 x 43

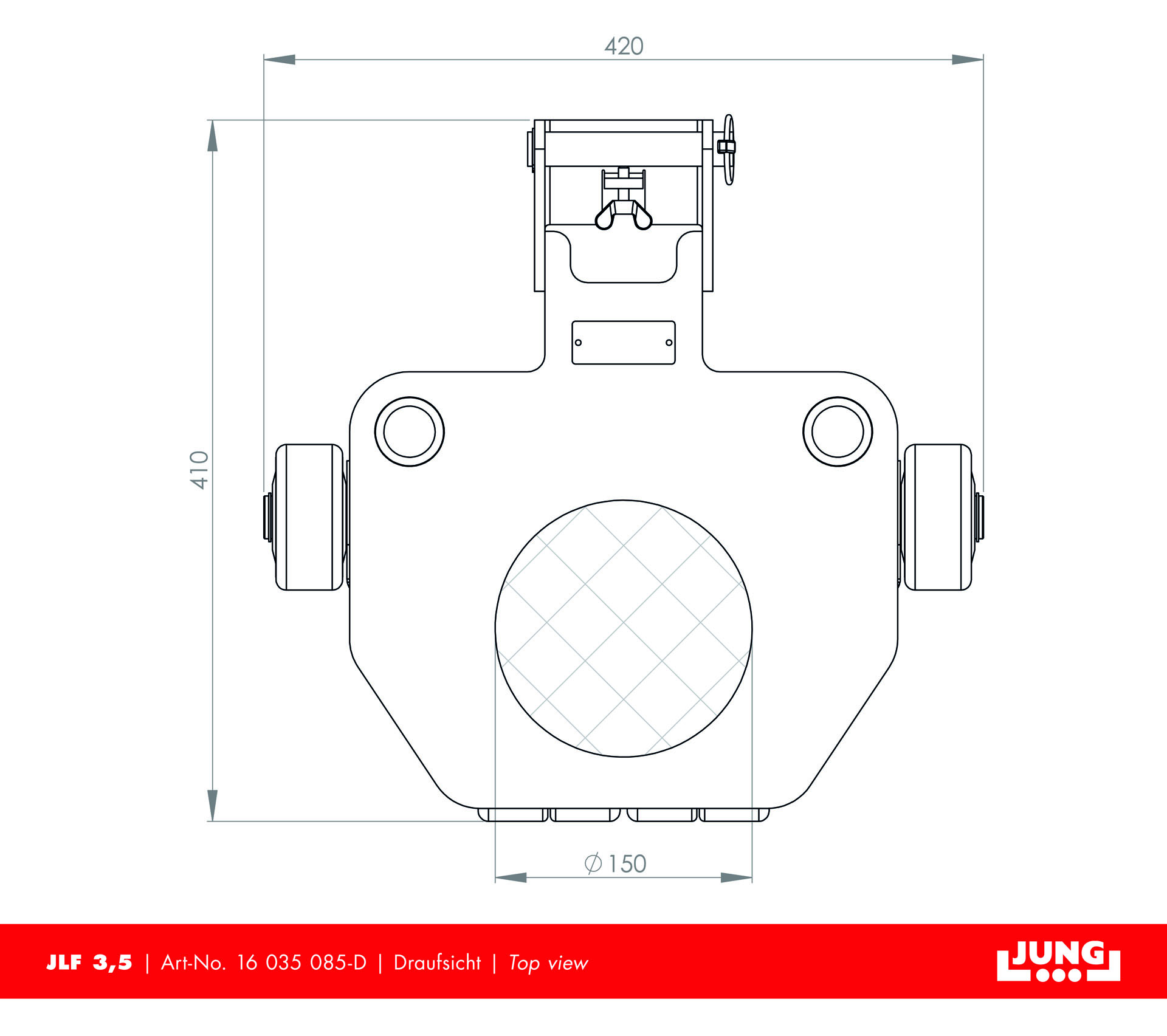

Dimensions (mm):	410 x 420

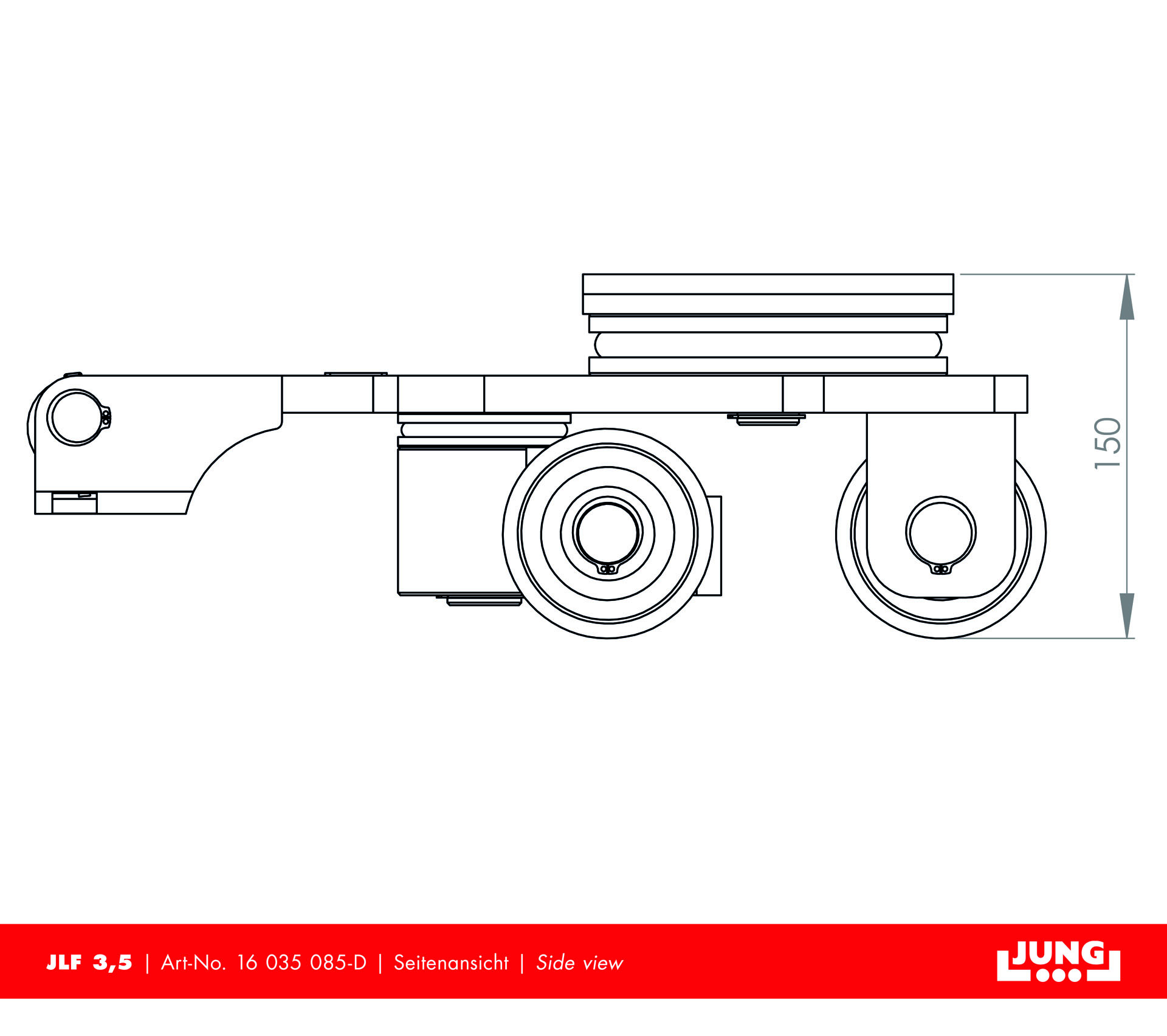

Height (mm):	150
Load capacity (t):	3,5
Number of castors / twin castors (pcs.):	4/2
Supporting surface of turnable Ø (mm):	150
Weight JUWAthan®plus (kg):	25
