JUNG Hebe- und Transporttechnik GmbH

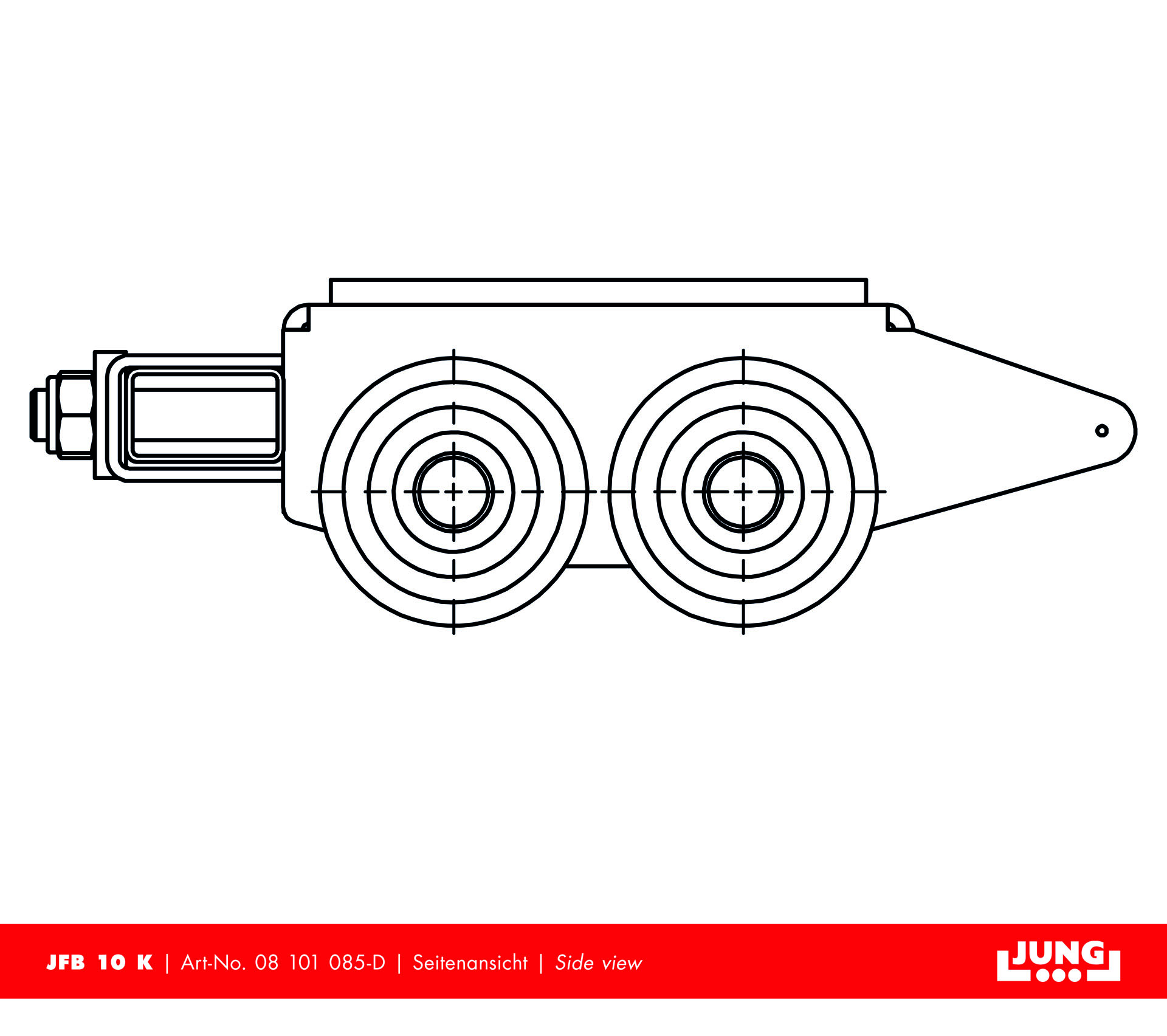

Adjustable trolley JFB 10 K Professional
High-performance transport trolley from JUNG. The JFB 10 K professional trolley transports loads up to 10 t with an installation height of 110 mm.
Load capacity: 2 x 5 t (in a set 20 t*)
Height: 110 mm
Transport trolley series K professional
*)Set consisting of JL 10 K + JFB 10 K
Height: 110 mm
Transport trolley series K professional
*)Set consisting of JL 10 K + JFB 10 K
Product number:
08 101 085-D
Weight:
35 kg
Product information "Adjustable trolley JFB 10 K Professional"
Qualities of the transport trolley JFB 10 K Professional
- The double roller design results in dramatically easier steering due to reduced friction forces in castors. The much lower friction resistance also causes the trolleys on the rear axis to follow in a truer course.
- You need 30 % less power for steering.
- Higher capacity with professional castors, at same dimension as series K trolleys.
- The adjustable-width transport trolley consists of two transport units and connecting bar.
- Inspected according to technical regulation ANSI ⁄ ASME (USA)
With an installation height of only 110 mm, the tank rollers fit under almost any load. Equipped with a practical handle or additionally with a towing eye, the chassis enables easy maneuvering and positioning. JUNG's transport rollers use ball-bearing rollers for smooth and quiet operation. The rollers come standard with a wear-resistant coating - the JUWAthan plus coating.

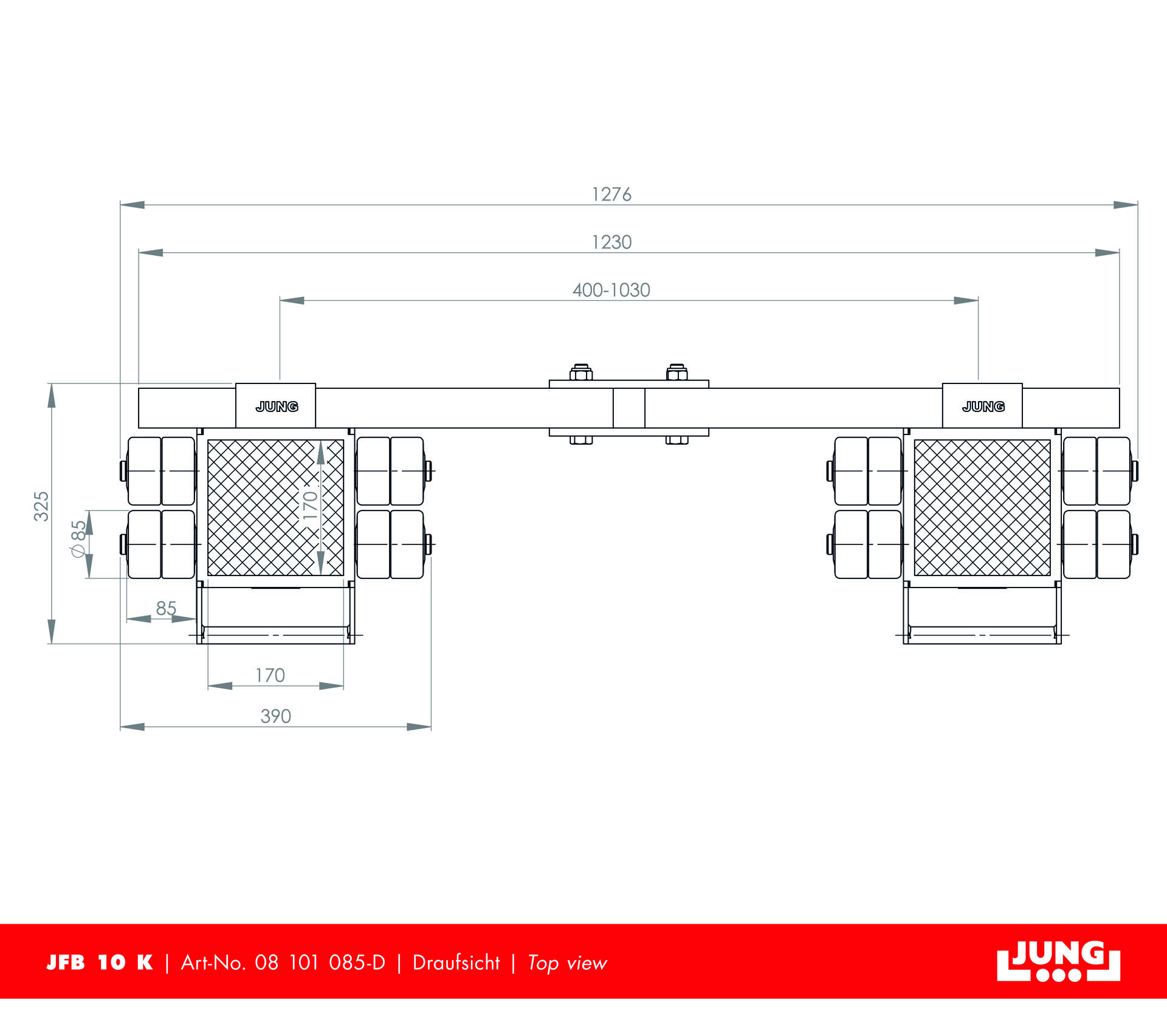

| Cassette dimensions (mm): | 325 x 390 |
|---|---|
| Cassettes adjustable from - to (mm): | 400 - 1 030 |
| Castor dimensions (Ø x l mm): | 85 x 85 |
| Connecting bar with joint (mm): | 1 230 |
| Height (mm): | 110 |
| Load capacity (suitable): | 16 - 20 t |
| Load capacity (t): | 10 |
| Number of twin castors (pcs.): | 2 x 6 |
| Suppoting surface per cassette (mm): | 170 x 170 |
| Weight Professional (kg): | 34 |
